8.6.9 Table Data Setting
This function sets the table data. The data set here is used in the table data operation
command (TBLBR, TBLBW, etc.) in the main program.

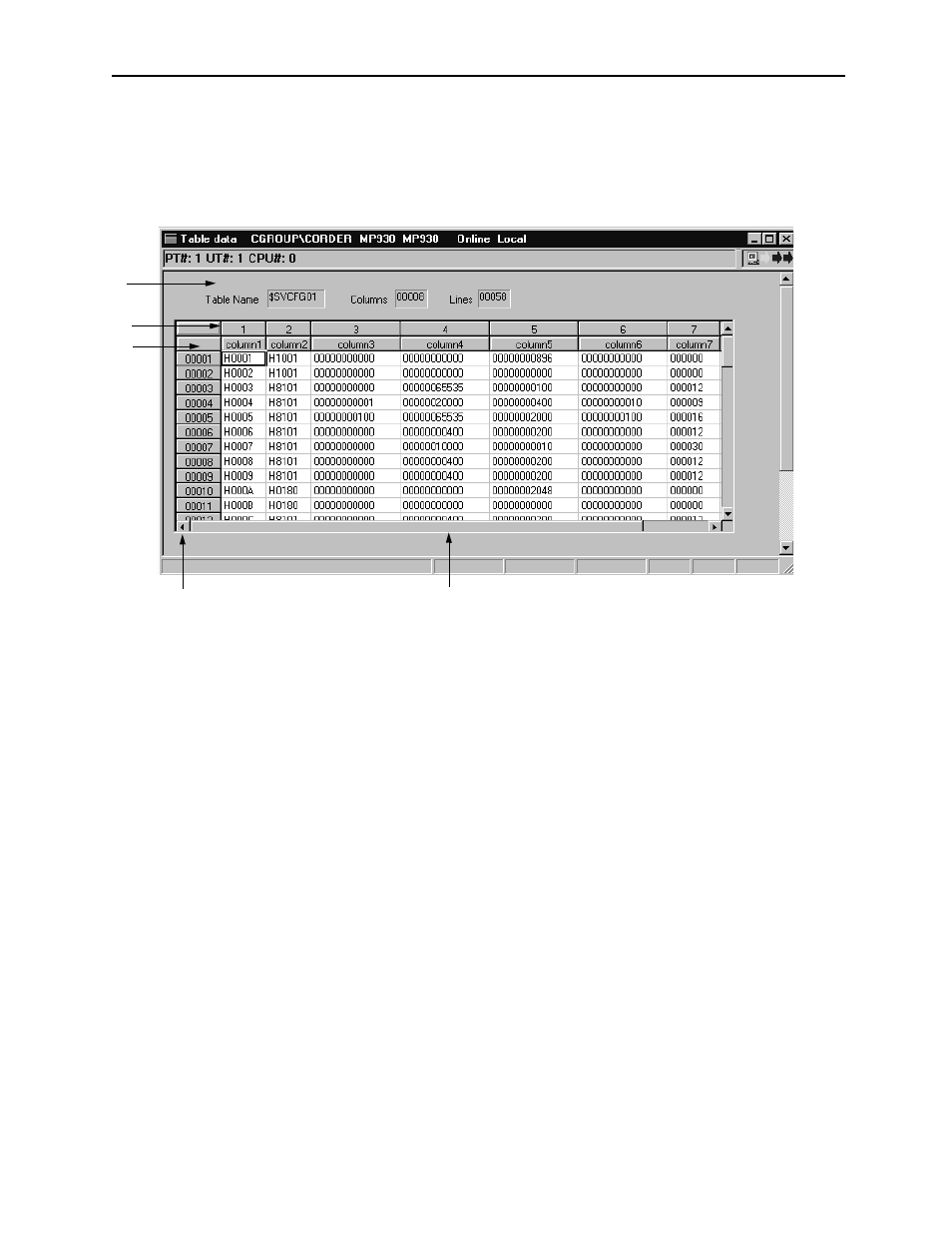

1. Table Definition Data
This box displays the table data name, number of columns, and number of rows.
2. Column Number
This displays the column number.
3. Column Name
This displays the column name.
4. Row Number
This displays the row number.
5. Table Data
Input 0 ~ 9 if the table data is decimal, 0 ~ 9 and A ~ F if hexadecimal, and 1 or
0 if binary. For hexadecimals, input H at the beginning of the number.
8.6.10 Table Data Editing
a. Go To
This function moves the cursor to a designated row and column.
a.1 Select Go To (J) from View (V) in the table data menu.
a.2 In the dialogue box, input the row number and column number desired, and
select the OK button.
1
2
3
4 5
