82 Rev 3.0 • 25 Mar 10
7. Routers
Updating Router Details
To narrow the list of routers that display, enter the first characters of a router name in the ‘Name
Filter’ field. The list is automatically reduced to display only routers matching that character
string.

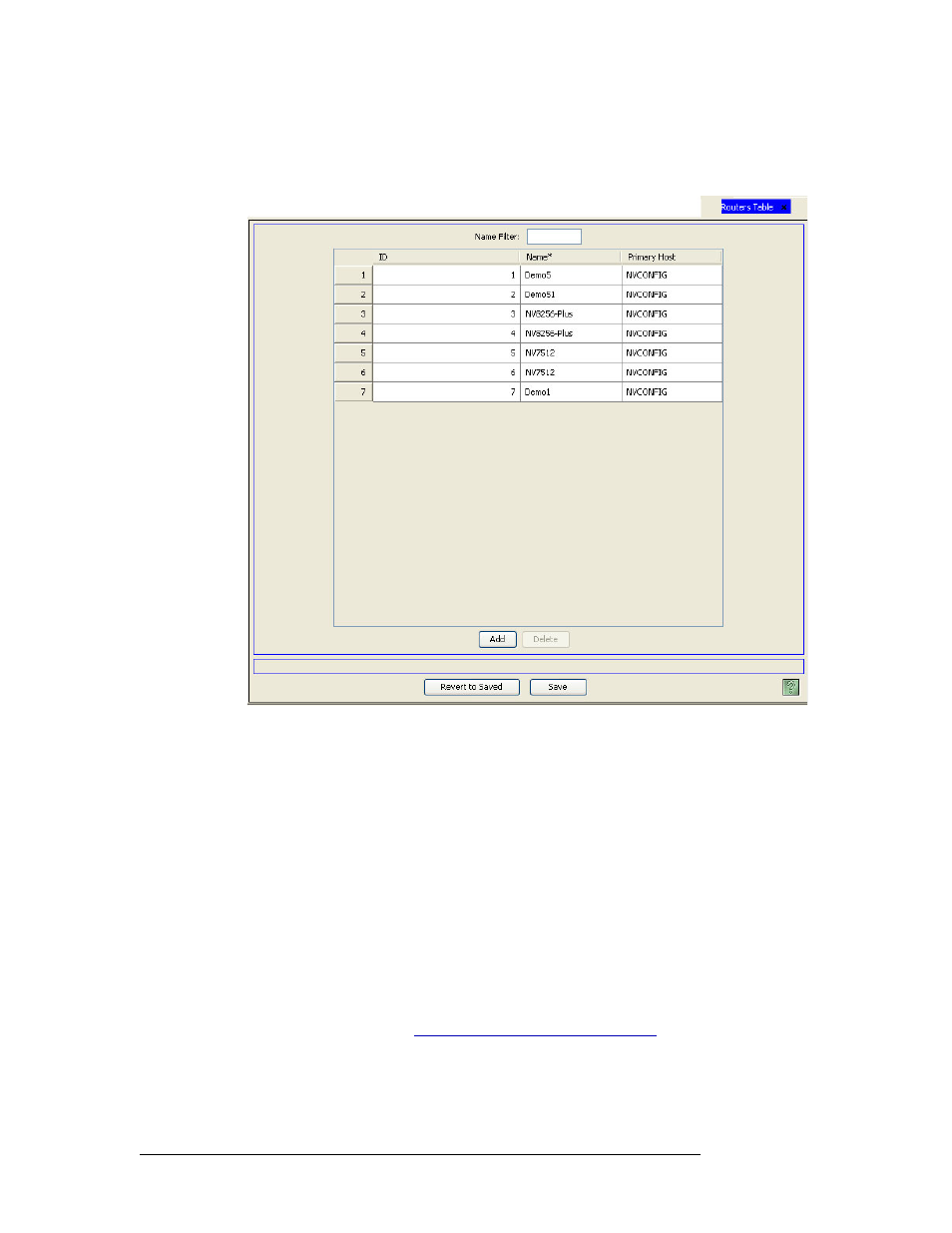

Figure 7-16. Routers Table
3 Locate the row listing the router being updated.
4 Click on the ‘Name’ field to activate it and enter a new name.
5 Click
Save
.
Or
To revert to previously saved configuration, click
Revert to Saved .
6 Click
X
on the window title tab to close the table.
Updating a Router Host
The router’s host (also called a “server”) can be changed using the ‘Routers’ table accessed through
the ‘Views’ pane. You can only select from a list of existing hosts.
How to update a router host
1 Launch NV9000-SE. (See Launching and Exiting the Application on page 12.)
2 From the Navigation area, select the ‘Views’ pane and then ‘Routers’. The ‘Routers’ table
appears, as shown in Figure 7-17.
