NV9000-SE Utilities • User’s Guide 465
16. Tielines
Locating and Viewing Existing Tieline Details
To narrow the list, enter the first characters of the tieline’s name in the ‘Name Filter’ field. The
list is automatically reduced to display only tielines matching the character string.

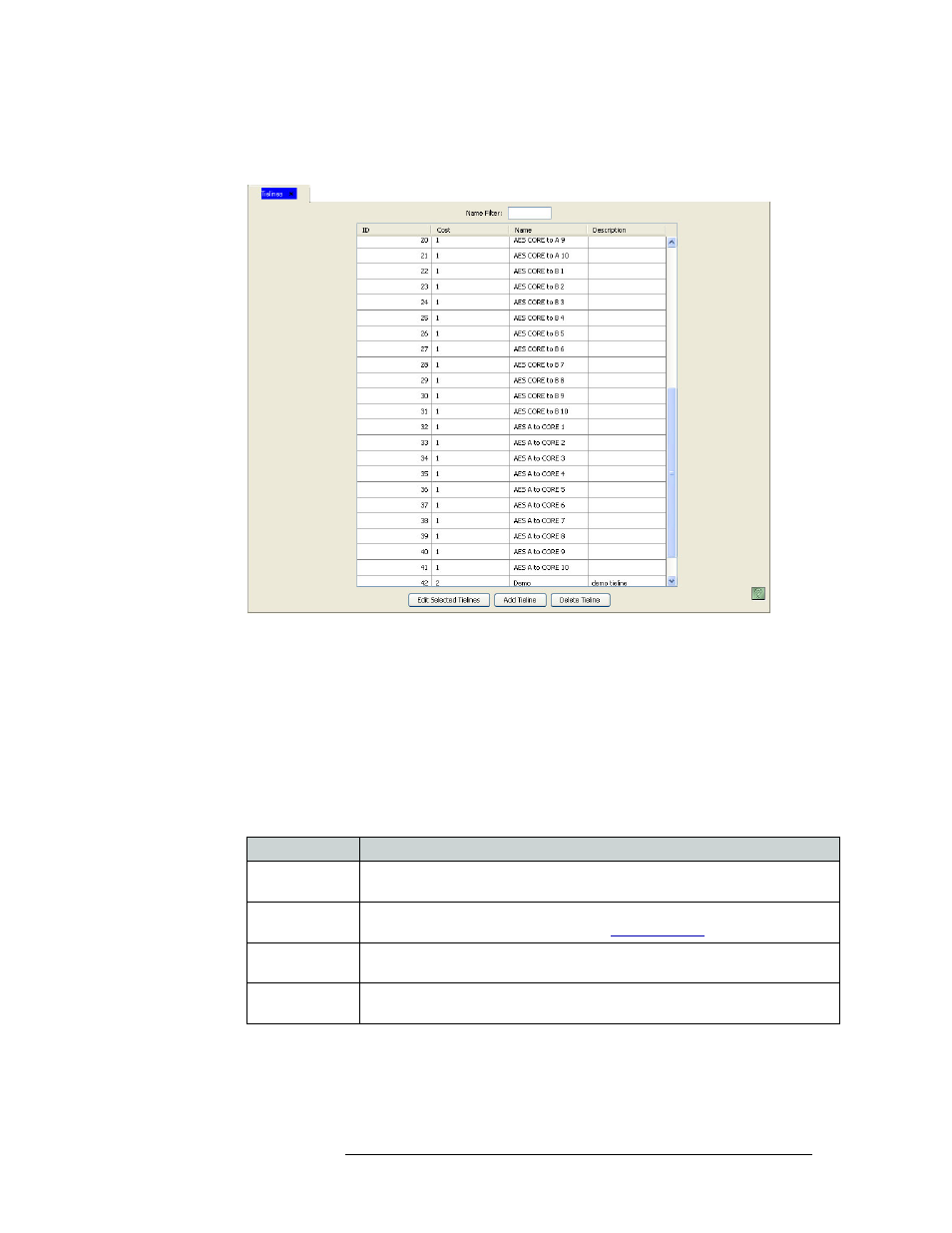

Figure 16-5. Tieline Page
The ‘Name’ column lists the name assigned the tieline in NV9000-SE.
3 Double click on a single row to view details for each tieline in the ‘Tieline Details’ page.
Or
Click anywhere in the row listing the tieline being viewed and click
Edit Selected Tieline
. Use the
‘Shift’ or ‘Ctrl’ key on your keyboard to select multiple tielines. Each tieline opens in a sepa-
rate tabbed window. Click the tab to bring the window forward.
In the ‘Upstream’ and ‘Downstream’ areas of the screen, the following sections display infor-
mation, as follows:
4 Click
X
on the window title tab to close the page.
Section Description
PhysLevel The routers or physical devices available. The checked router/device is included in
the tieline and represented in the ‘Graph’ section of the screen.
Virtual Levels The virtual levels associated with the device. If checked, the level and corresponding
signal types are “bound” to the tieline. (See
Signal Binding on page 458.)
Signal Types For each virtual level selected, the signal types associated with that virtual level
display.
Graph Located in the center of the screen, this section provide a graphical representation of
the ports connected to create the tieline, including specific port numbers.
