32 Rev 3.0 • 25 Mar 10
4. Configurations
Analyzing Configurations
4 The results of the analysis displays on the ‘Analyze Report’ page in a ‘tree’, as shown in
Figure 4-13. Click the ‘Analyze Report’ page window tab to bring the page forward.

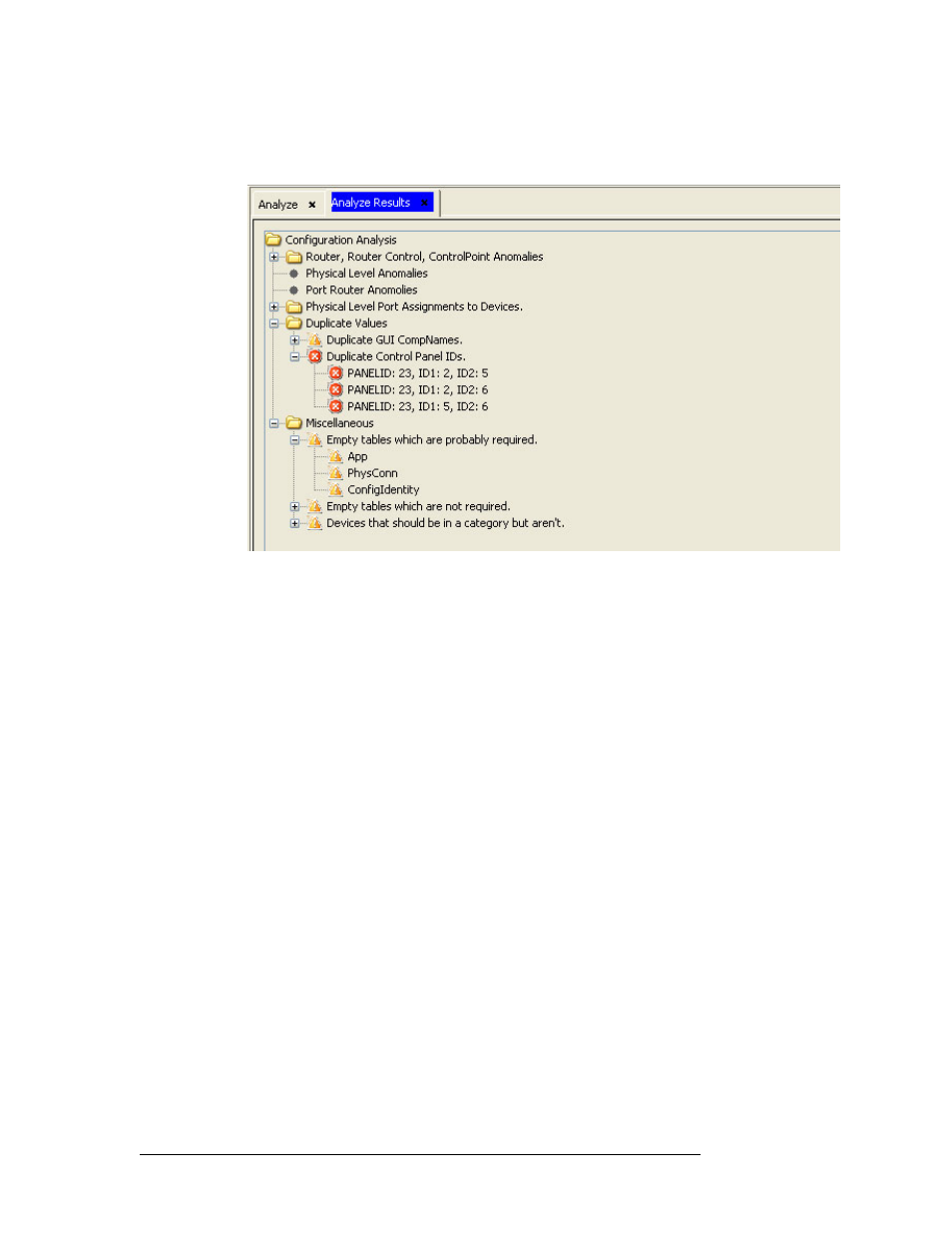

Figure 4-13. Analyze Report Page
5 To view details, click on the + to expand a level in the ‘tree’.
Or
Click
Expand All
to expand all levels.
Or
Click
Collapse All to contract all levels.
6 To print a report, exactly as it displays, click
Print
. A report is sent to the printer connected to
the computer running NV9000-SE Utilities. The levels appear in the print out, either expanded
or collapsed, exactly as they appear on the ‘Analyze Report’ page.
7 Click
X
on the window title tab to close the page.
