118 Rev 3.0 • 25 Mar 10
8. Level Sets
Creating a Level Set
6 Repeat Step 5 until all levels in the level set have been defined.
7 Click
Save
.
Or
To revert to the previously saved configuration, click
Revert to Saved .
8 Click
X
on the window title tab to close the page.
How to Add Level Sets Using the ‘Level Sets’ Table
1 Launch NV9000-SE. (See Launching and Exiting the Application on page 12.)
2 From the Navigation area, select the ‘Views’ pane and then ‘Level Sets’. The ‘Level Sets’ table
appears:

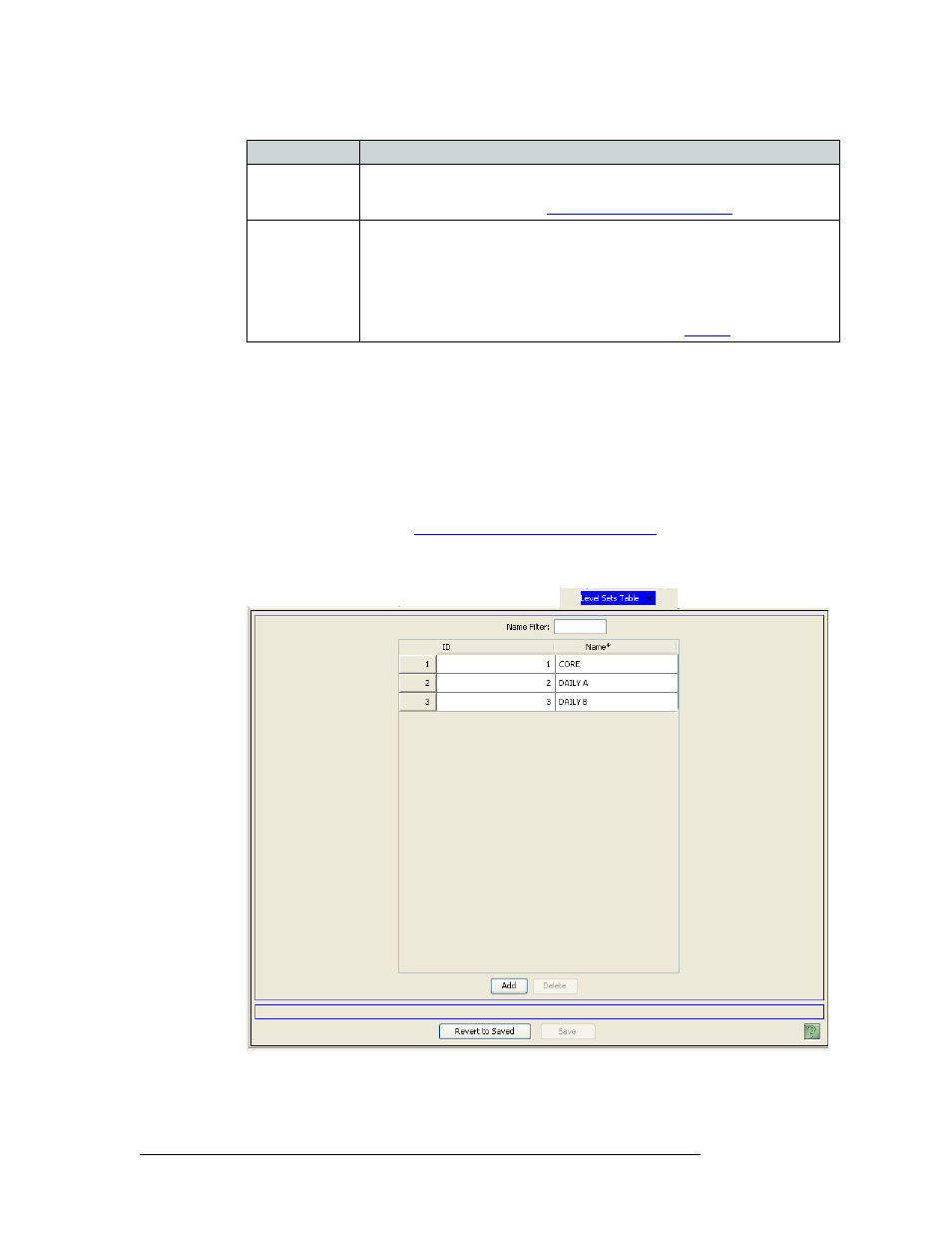

Figure 8-4. Level Sets Table
Physical Level Select a physical level from the drop-down list to associate with the virtual level
(that is, the virtual level maps to the physical level). Physical levels are entered when
router information is added. See
Updating Router Physical Levels on page 87.
Free Source (Optional) Select a free source from the drop-down list to associate with the virtual
level. A free source is a source, usually black and silence, that can be routed to a
destination to free up that destination.
The drop-down list displays all devices defined as being associated with the current
level set, if any. From these devices you can choose a free source.
To add a free source device, you must first create the level set, add devices to it, and
then return to the level set and select the free source. See Devices on page 157.
Field Description
