11. Control Panels
Adding a Control Panel
The ‘NV9602’ page appears:

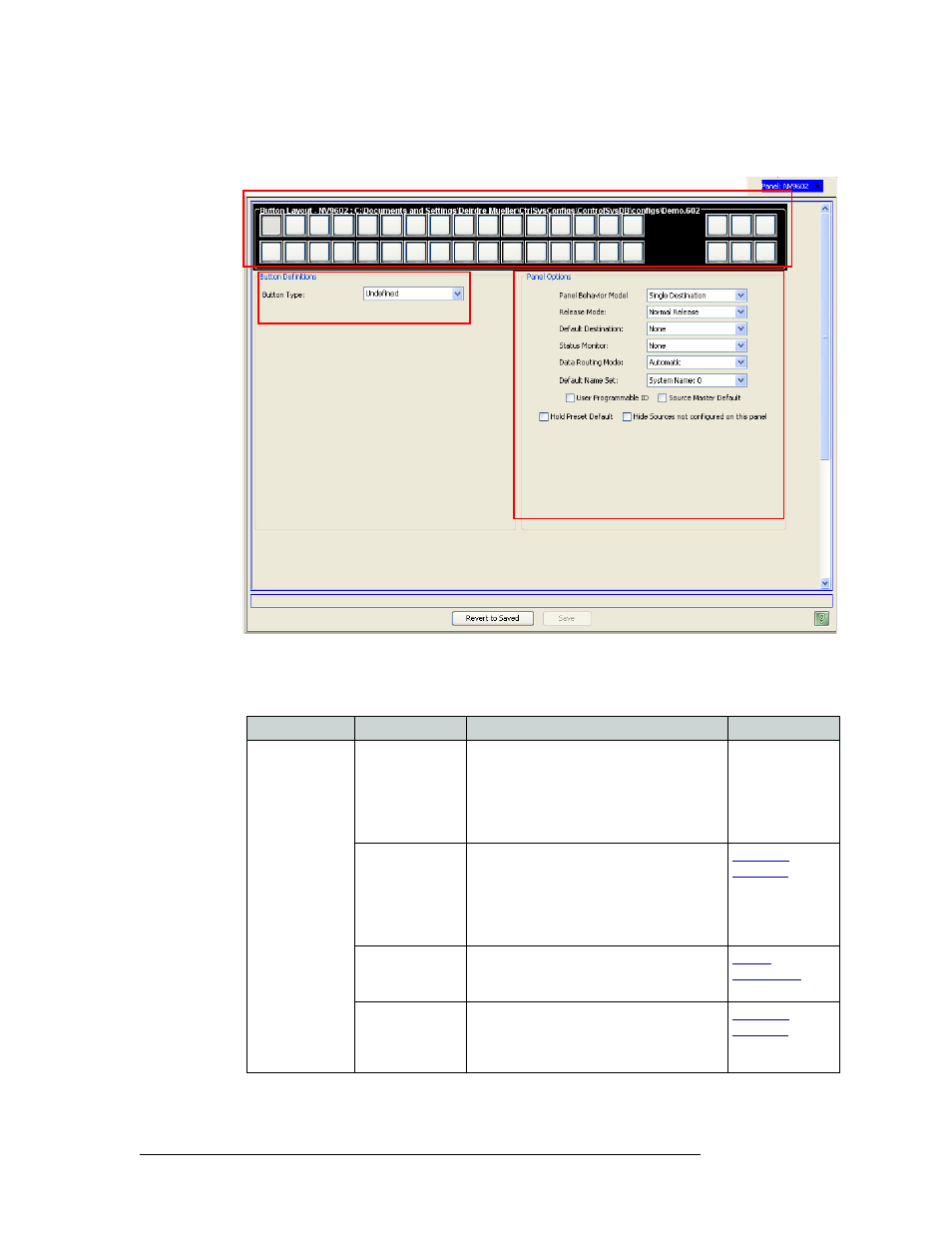

Figure 11-11. NV9602 Page
2 In the ‘Panel Options’ section, select control panel behaviors from the drop-down lists, such as
operation modes and default settings.
Button Layout section
Button Definitions section
Panel
Options
section
Field Option Description Related Topic
Panel behavior
model
Single destination A single destination device is assigned to this
control panel. Buttons are generally
configured as source devices, which are then
available to this destination simply by
selecting them. This mode is commonly
referred to as BPS, or button-per-source.
—
Limited X-Y A mix of source and destination devices is
programmed, allowing any source to be
routed to any destination. This mode is not to
be confused with full X-Y operation
— this
is a subset using only devices assigned to
control panel buttons.
Modes of
Operation
on page
357
Single destination
with Breakaway You may assign NV9602 buttons as virtual
levels allowing level-by-level “takes.” All
panels are restricted to a single destination.
About
Breakaways
on
page 359
Multiple
destination This mode breaks a single NV9602 into
multiple “button-per-source” panels, similar
to NV9601 multi-destination mode. Refer to
the NV9602 User’s Guide for more details.
Modes of
Operation
on page
357
