74 Rev 3.0 • 25 Mar 10
7. Routers
Locating and Viewing Existing Router Details

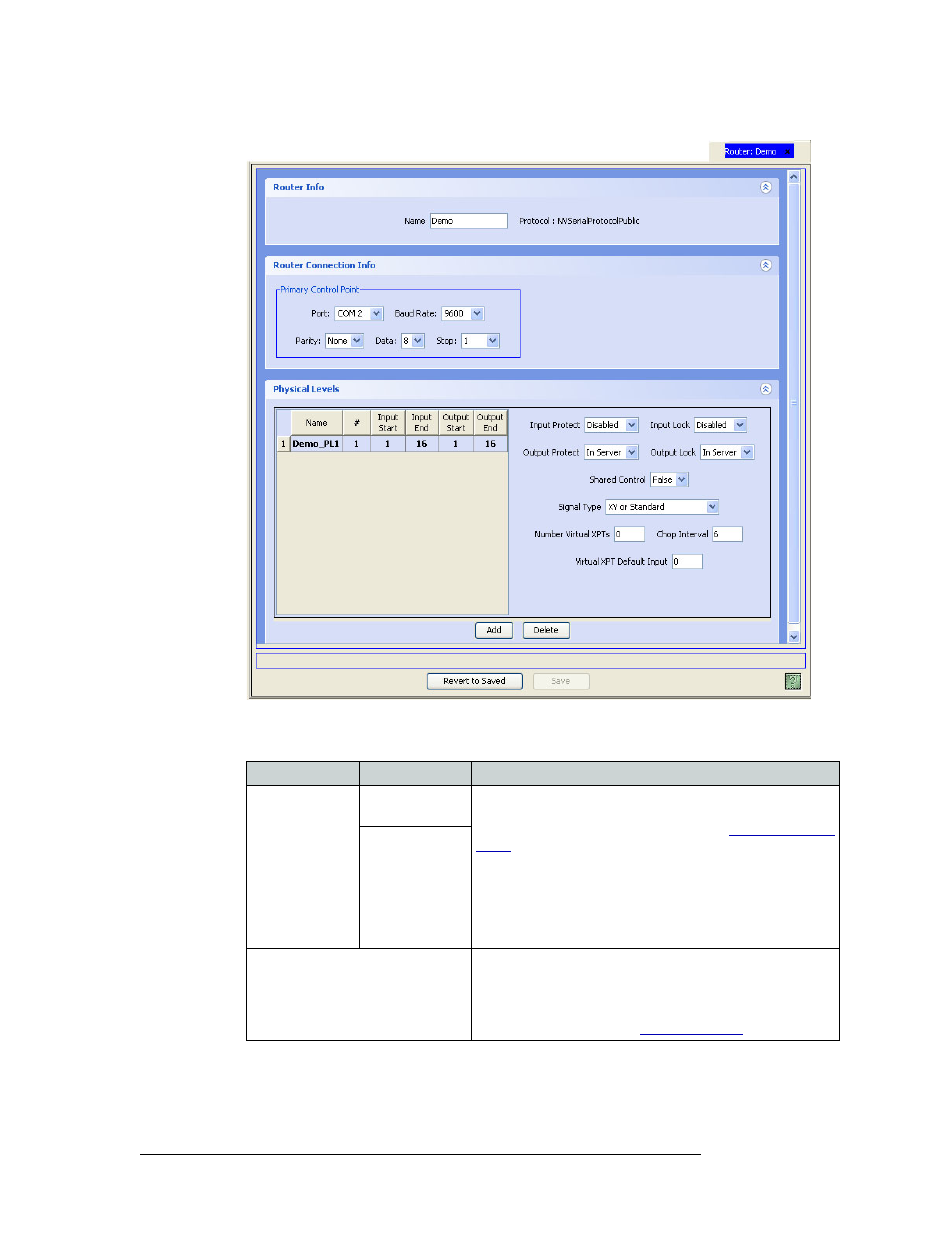

Figure 7-9. Router Details Page for Serial Protocol
Each section displays specific information, as follows:
4 Click
X
on the window title tab to close the page.
Section Sub-section Description
Router
Connection Info Primary Control
Point Control points (also called control ports) are serial or Ethernet
ports on the NV9000 system controller through which routers,
panels, and other devices are connected. (See Managing Control
Points on page 96.)
Lists ‘IP address’ of connection to the control system if using an
Ethernet protocol.
Or
Lists ‘Port’, ‘Baud Rate’, ‘Parity’, ‘Stop’ and ‘Data’ if using a
serial connection to the control system.
Secondary
Control Point
Physical Levels Lists the input start and end, and the output start and end for
each physical level defined in the router.
Fields to the right list if an input or output has been locked, the
type of signal, and additional information. For a complete
description of each field, see
Adding a Router on page 63.
