120 Rev 3.0 • 25 Mar 10
8. Level Sets
Locating and Viewing Level Sets
All level sets currently defined in the system are listed. To narrow the list, enter the first charac-
ters of the level set name in the ‘Name Filter’ field. The list is automatically reduced to display
only level sets matching that character string.

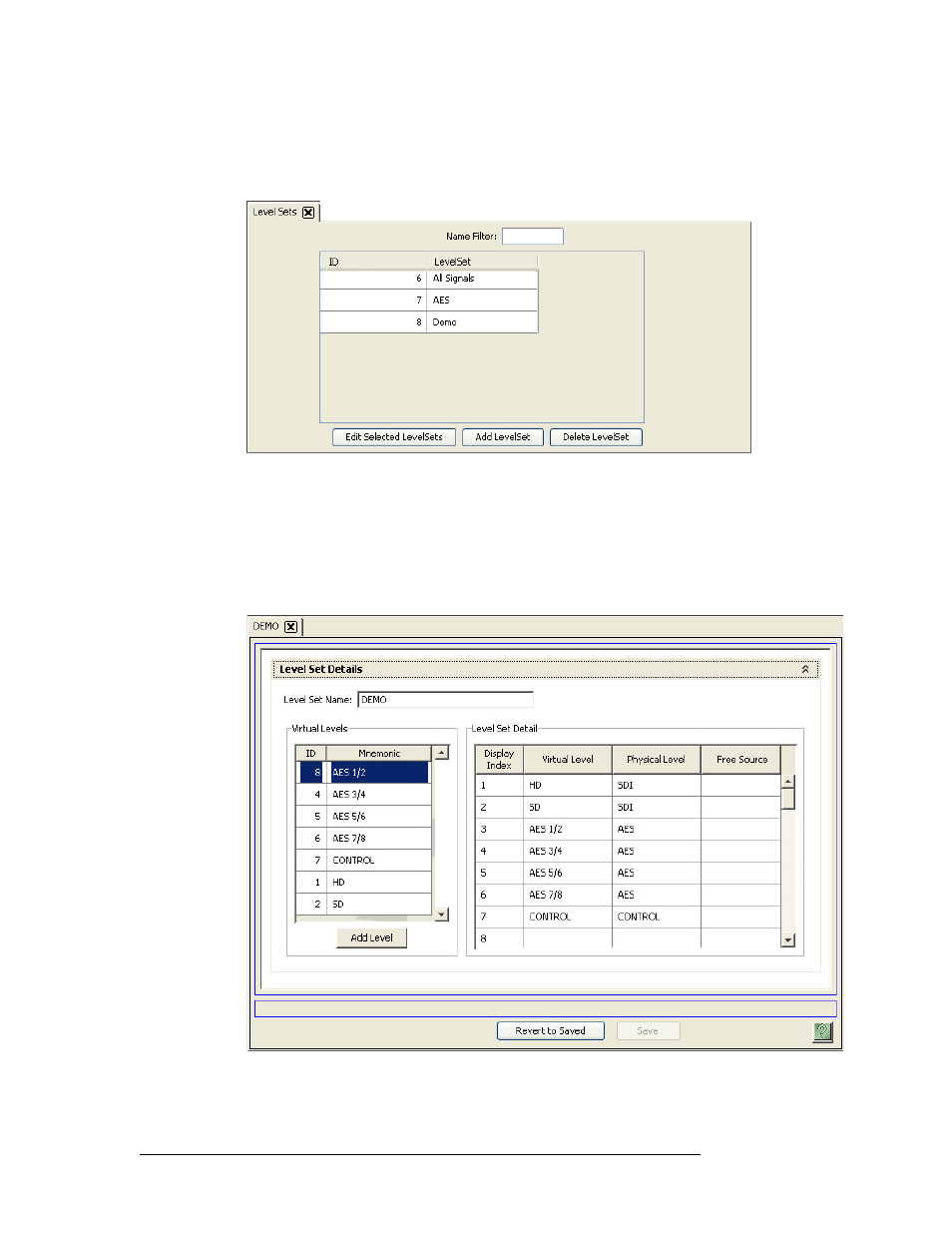

Figure 8-5. Level Sets Page
3 Double click on a single row to open the ‘Level Set Details’ page for that level set, as shown in
Figure 8-6.
Or
Click anywhere in the row listing the level set you want to view and click
Edit Selected Level
Sets
. Each level set opens in a separate tabbed window. Click a tab to bring that window for-
ward.
Figure 8-6. Level Set Details Page
4 There are three sections. The ‘Level Set Name’ field displays the name currently assigned to the
level set. The ‘Virtual Level’ section displays the ID and mnemonic (name) assigned to each
