7. Routers
Viewing Router Ports
Viewing Router Ports
Using the ‘View Router Ports’ page, you can easily and quickly view all ports for a selected router.
The page is for informational purposes only. To update ports, go to the section of this manual that
describes how to perform that task for that specific port (i.e., device ports would be discussed in the
Managing Devices section).
Viewable ports are:
• Devices
• Virtual Levels
• Physical Levels
• Level Sets
• Crosspoint Exclusions
• Input Ports/Output Ports
How to View Router Ports
1 Launch NV9000-SE. (See Launching and Exiting the Application on page 12.)
2 From the Navigation area, select the ‘Tasks’ pane and then ‘View Router Ports’. The ‘View
Router Ports’ page appears:

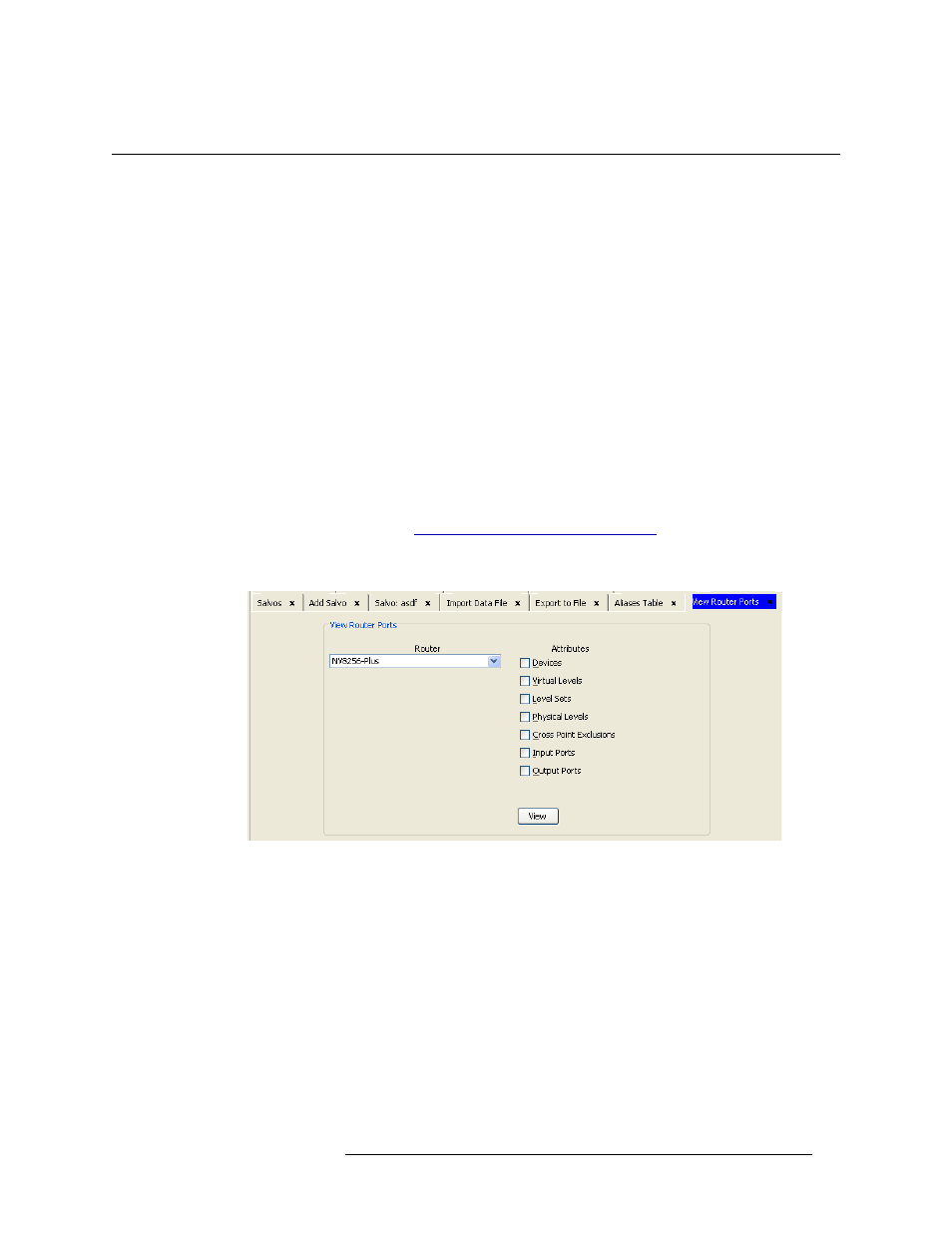

Figure 7-12. View Router Ports Page
3 Select a ‘Router’ from the drop-down list.
4 Check each check box in the ‘Attributes’ section corresponding to the ports you want to view
and click
View
. The ‘Router Ports’ page appears, listing each attribute selected in same-titled
