NV9000-SE Utilities • User’s Guide 469
16. Tielines
Locating and Viewing Existing Tieline Details
Viewing the ‘Tieline Path Detail’ Table
1 Launch NV9000-SE. (See Launching and Exiting the Application on page 12.)
2 From the Navigation area, select the ‘Views’ pane and then ‘Tieline Path Detail’. The ‘Tieline
Path Detail’ table appears, as shown in Figure 16-8.
To narrow the list of tielines that display, enter the first digits of a Tieline path ID number in the
‘Path Filter’ field.
Or
Enter the first characters of a source (upstream device) in the ‘Input Tieline’ field.
Or
Enter the first characters of a destination (downstream device) in the ‘Output Tieline’ field.
Or
Enter the first characters of a physical level in the ‘Phys Level Filter’ field.
The list is automatically reduced to display only tielines matching those character strings
entered.

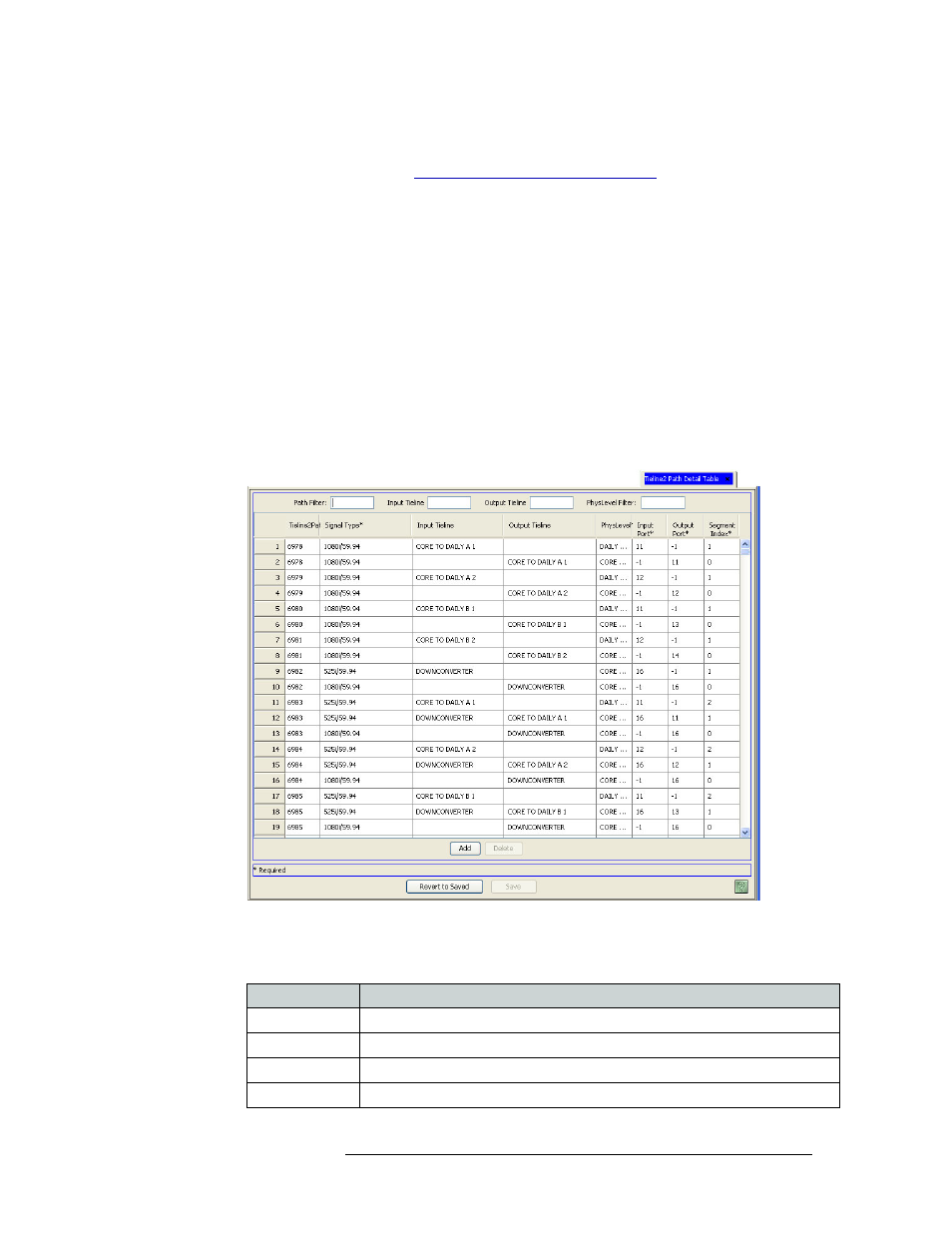

Figure 16-8. Tieline Path Detail Table
Several columns display tieline information. Each row represents a single input or output for a
tieline.
Column Description
Tieline Path Lists the ID number associated with the specific tieline path.
Signal Type The signal type associated with the tieline.
Input Tieline The source (upstream device) specified for the tieline; one per row.
Output Tieline The destination (downstream device) specified for the tieline; one per row.
