Page 60
40
Rev 3.0 • 25 Mar 10
5. System Management
Managing System Controller Communication
4 Select ‘Edit Control System’. The ‘Edit Control System’ dialog box appears:

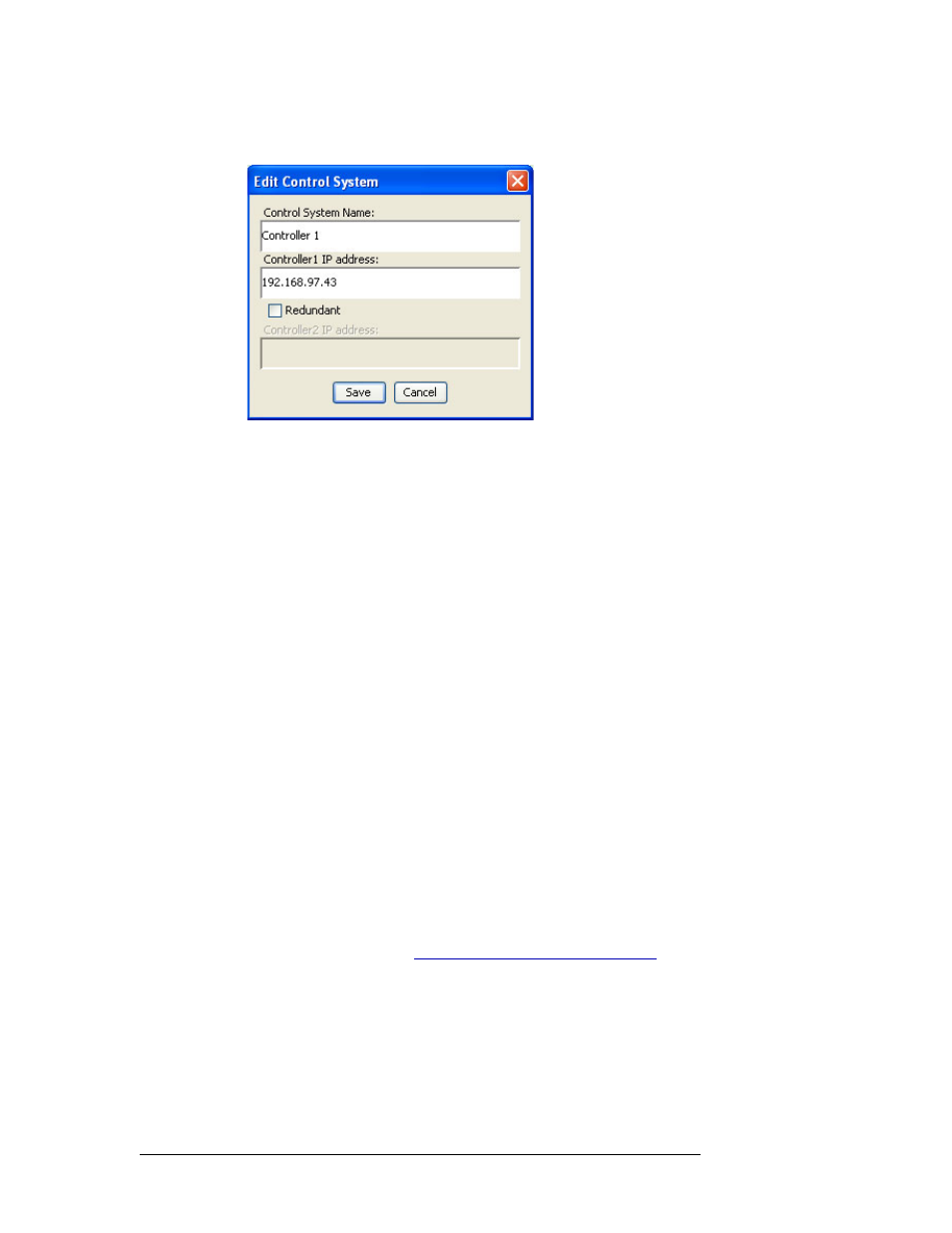

Figure 5-3. Edit Control System Dialog Box
5 Update the ‘Control System Name’ in the field provided. The name must have fewer than 256
characters. While there is no restriction on the characters used, it is recommended that you use
alphanumeric characters only and no symbols or punctuation marks.
6 Update the ‘Controller1 IP address’ of the system controller’s primary server in the field pro-
vided. If the address has been used already, NV9000-SE displays an alert.
The IP address for NV9000 system controller is 192.168.97.1 for the primary controller and
192.168.97.2 for a secondary (redundant) controller. NV915 system controllers the IP address
is 192.168.2.1 for the primary controller and 192.168.2.2 for the secondary controller. If run-
ning NV9000-SE remotely, connections are usually made using the “house” net.
7 If the system controller has a redundant server, update the redundant server’s IP address in the
‘Controller2 IP address’ field that appears.
8 Click
Save
to save your changes and close the dialog box.
Or
Click
Cancel
to close the dialog box without saving changes.
9 Click
X
on the window title tab to close the dialog box.
Changing or Viewing DHCP
The Dynamic Host Configuration Protocol (DHCP) is a computer networking protocol used by
hosts (DHCP clients) to retrieve IP address assignments and other configuration information. If
using a DHCP host, you can update the DHCP at any time.
How to Change or View the DHCP
1 Launch NV9000-SE. (See
Launching and Exiting the Application
2 From the Navigation area, select the ‘System Management’ pane.
3 Select a system controller and right-click to display a pop-up menu.
4 Select ‘Edit/View DHCP’. Current DHCP information displays.
5 Update the DHCP as needed and click
Save
to save your changes and close the dialog box.
Or
Click
Cancel
to close the dialog box without saving changes.
