NV9000-SE Utilities • User’s Guide 419
14. External Interfaces
Updating External Interface Information
3 Click anywhere in the row listing the external interface being updated and click
Edit Selected
External Interfaces
. The ‘External Interface Details’ page appears, as shown in Figure 14-10.

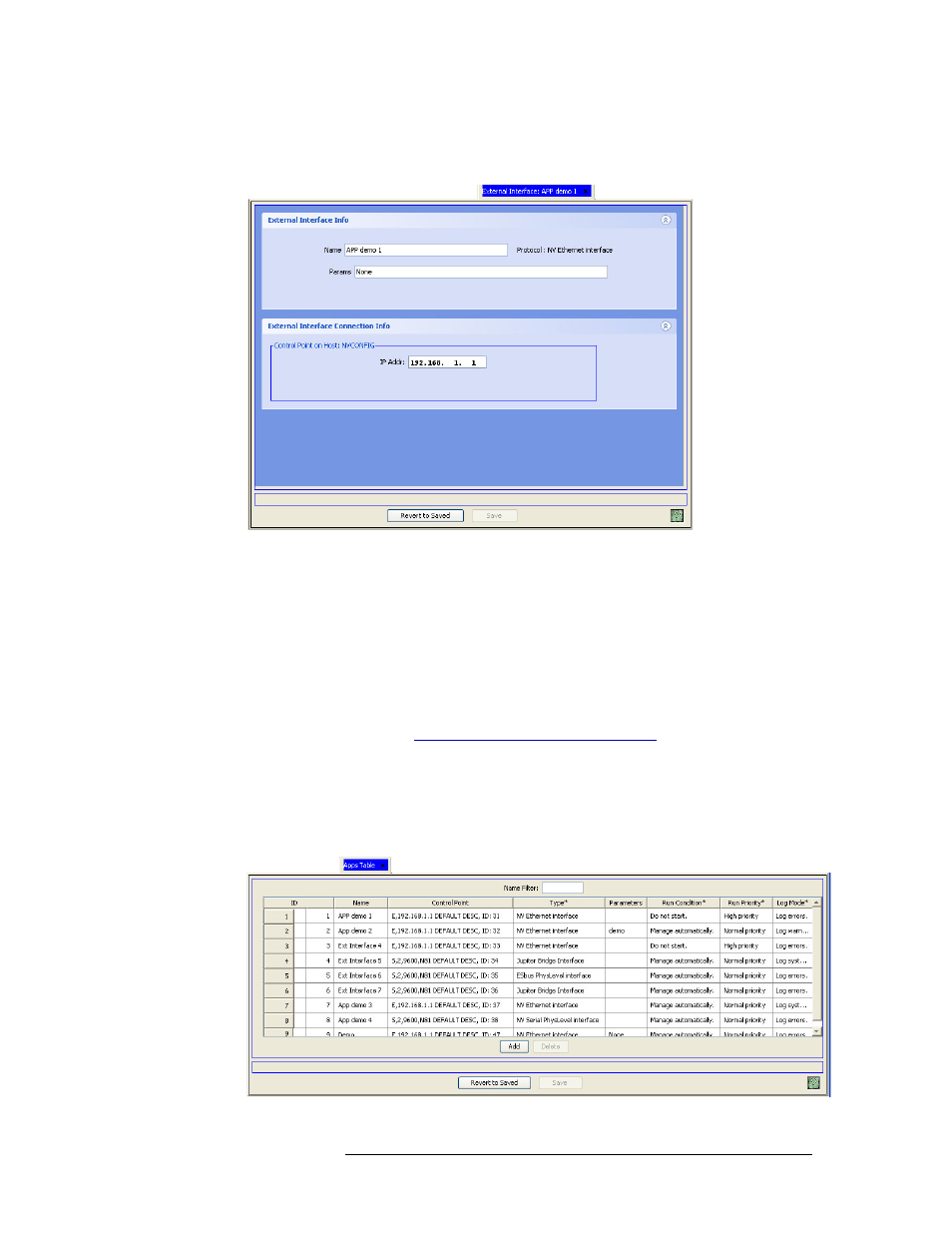

Figure 14-10. External Interface Details Page (Example for Ethernet Protocol)
4 Update the ‘Name’ in the field provided.
5 Click
Save
.
Or
To revert to the previously saved configuration, click
Revert to Saved.
6 Click
X
on the window title tab to close the page.
How to Update an External Interface Name Using the ‘Apps’ Table
1 Launch NV9000-SE. (See Launching and Exiting the Application on page 12.)
2 From the Navigation area, select the ‘Views’ pane and then ‘Apps’. The ‘Apps’ table appears,
as shown in Figure 14-11.
To narrow the list of external interfaces that display, enter the first characters of an external
interface name in the ‘Name Filter’ field. The list is automatically reduced to display only
external interfaces matching that character string.
Figure 14-11. Apps Table
