13. EC9700 and EC9710 Panels
Adding an EC9700/EC9710 Panel
If Display Primary Level Only’ is selected, only one level can be displayed through the GUI
and the ‘SW Panel Details’ page lists only one level, as shown in Figure 13-9.

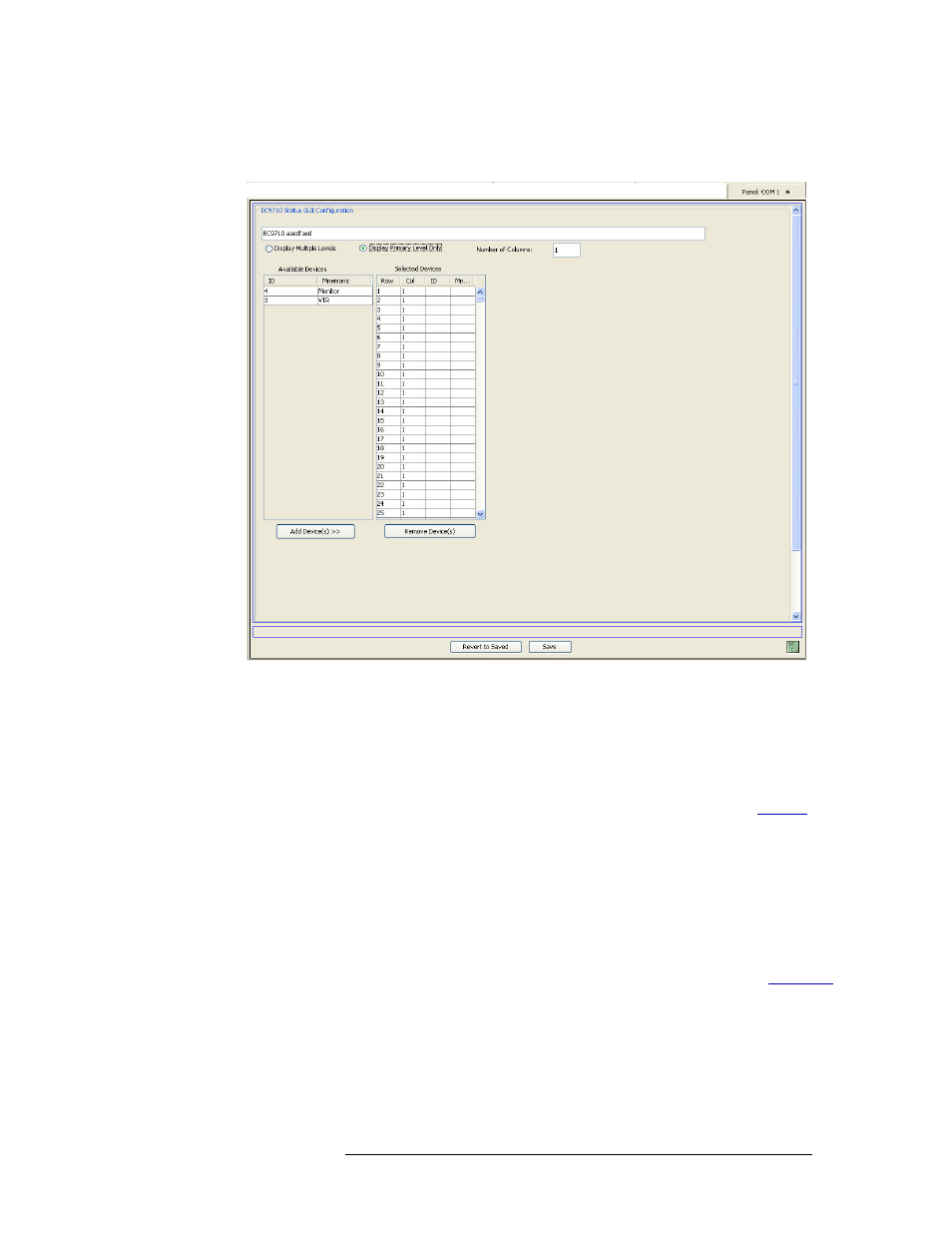

Figure 13-9. EC9710 Details Page
7 The ‘Available Devices’ section lists all devices currently in the NV9000-SE system by ‘ID’
and ‘Mnemonic’ (name). Select the row listing the device you want to add and click
Add
Device(s)
. The device is added to the first available row in the ‘Selected Devices’ table.
Repeat until all devices have been added. If a device was added in error, select the row listing
the device and click
Remove Device(s)
.
For more information on devices and adding them to the NV9000-SE system, see Devices on
page 157.
8 If ‘Display Multiple Levels’ was selected in step 6, select level sets. The ‘Available Levels’
section lists all level sets currently in the NV9000-SE system by ‘ID’ and ‘Mnemonic’. (See
Figure 13-8.) Select the row listing the level set you want to add and click
Add Level(s)
. The
level set is added to the first available row in the ‘Selected Levels’ table.
Repeat until all level sets have been added. If a level set was added in error, select the row list-
ing the level set to be removed and click
Remove Level
.
For more information on level sets and adding them to the NV9000-SE system, see Level Sets
on page 111.
9 Click Save to save your changes.
10 Click X on the window title tab to close the page.
