Grass Valley NV9000-SE v.3.0 - Manual (Page 428)

408 Rev 3.0 • 25 Mar 10
13. EC9700 and EC9710 Panels
Deleting Panels
3 Click anywhere in the row listing the control panel(s) being deleted and click
Delete SW Panel
.
4 On the confirmation dialog box, click
Delete
.
5 Click X on the window title tab to close the page.
How to Delete a Control Panel Using the ‘GUIs’ Table
1 Launch NV9000-SE. (See Launching and Exiting the Application on page 12.)
2 From the Navigation area, select the ‘Views’ pane and then ‘GUIs. The ‘GUIs’ table appears, as
shown in Figure 13-18.
To narrow the list of panels that display, enter the first characters of a control panel name in the
‘Computer (or Window User) Name Filter’ field. The list is automatically reduced to display
only panels matching that character string.

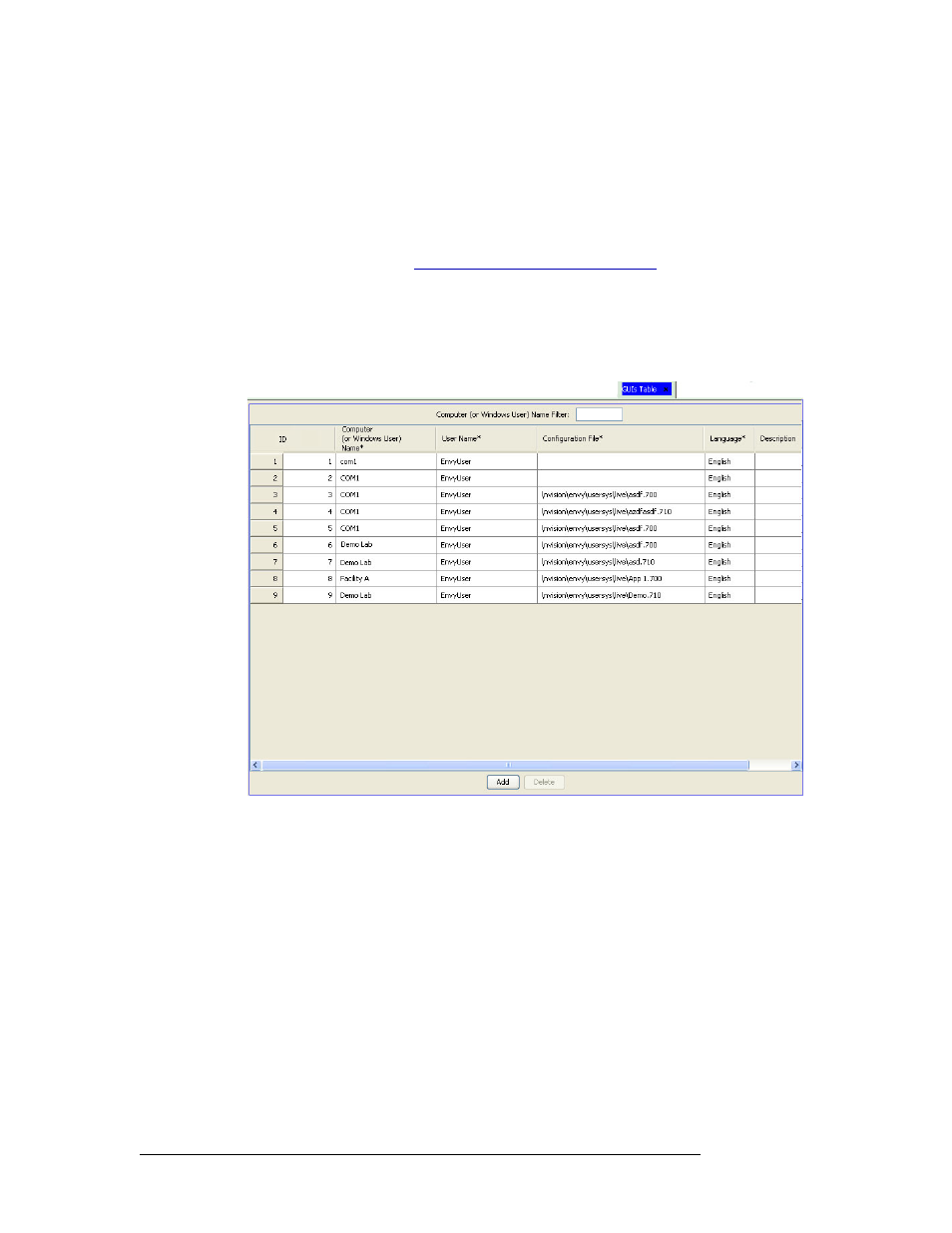

Figure 13-18. GUIs Table
3 From the list of panels that display, click anywhere in the row listing the control panel being
deleted and click
Delete
. The row is removed from the list.
4 Click
Save
.
Or
To revert to previously saved configuration, click
Revert to Saved
.
5 Click
X
on the window title tab to close the table.
