NV9000-SE Utilities • User’s Guide 263
11. Control Panels
Adding a Control Panel
a If checked, the ‘Configure Slave Panel’ dialog box appears:

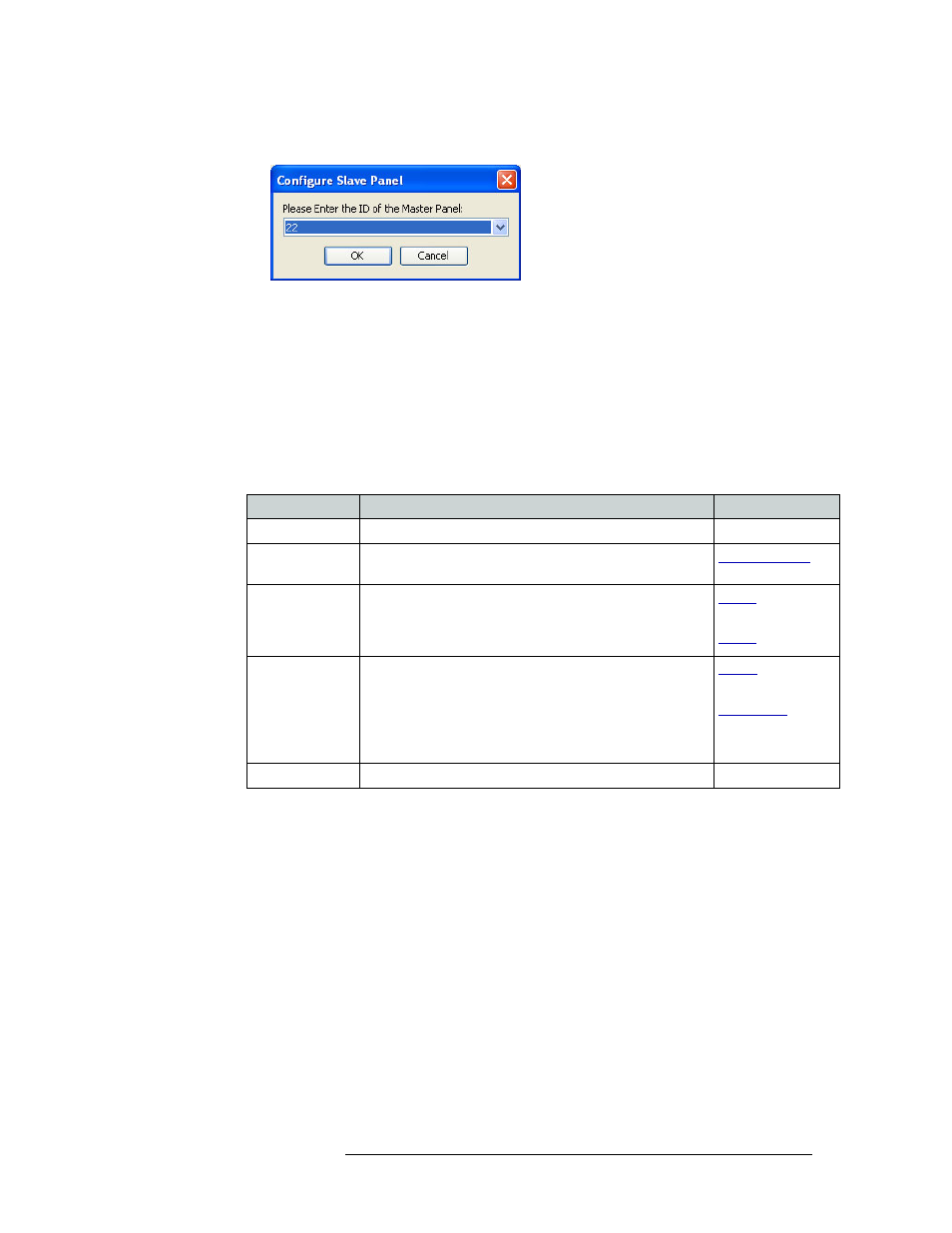

Figure 11-14. Configure Slave Panel Dialog Box
b From the drop-down list, select the ID of the control panel acting as the “master” control
panel and click
OK
.
To view a list of control panel IDs, from the ‘Views’ pane select ‘Panels’. All panels
currently in the system display with an ID in the ‘Panel ID’ column.
4 In the ‘Button Layout’ section, select a blank button and then in the ‘Button Definitions’ sec-
tion, select a definition for the button from the drop-down list. The button definition appears on
the selected button in the ‘Button Layout’ section.
Select button options as follows:
5 Click
Save
.
Or
To revert to the previously saved configuration, click
Revert to Saved .
6 Click
X
on the window title tab to close the page.
Button Description Related Topic
Destination Assigns a destination device to this control panel. —
Previous Source Immediately restores the previously selected source to the
current destination (similar to an “undo” button).
Previous Source on
page 363
Salvo The button either executes a salvo or arms a salvo (where a
second press executes the salvo). When you assign Salvo to a
button, a drop-down list appears in which you select a salvo
ID.
Salvos on page 364
and
Salvos on page 431
Source Loads a predefined source device into the preset column,
ready for selection by pressing Take.
When you assign ‘Source’ to a button, a drop-down list
appears in which you select a source(s). Select a level from
‘Level Set Filter’ to limit the sources to only those assigned to
that level.
Source on page 365
and
Source Shift on page
365
Undefined Makes the button undefined and inactive. It will remain unlit. —
