Grass Valley NV9000-SE v.3.0 - Manual (Page 514)

494 Rev 3.0 • 25 Mar 10
16. Tielines
Deleting a Tieline Group
If removing a tieline, select the tieline from the ‘Tielines in Group’ list and click the right facing
arrow. The tieline appears in the ‘Tielines Available’ list and is no longer associated with the
tieline group.

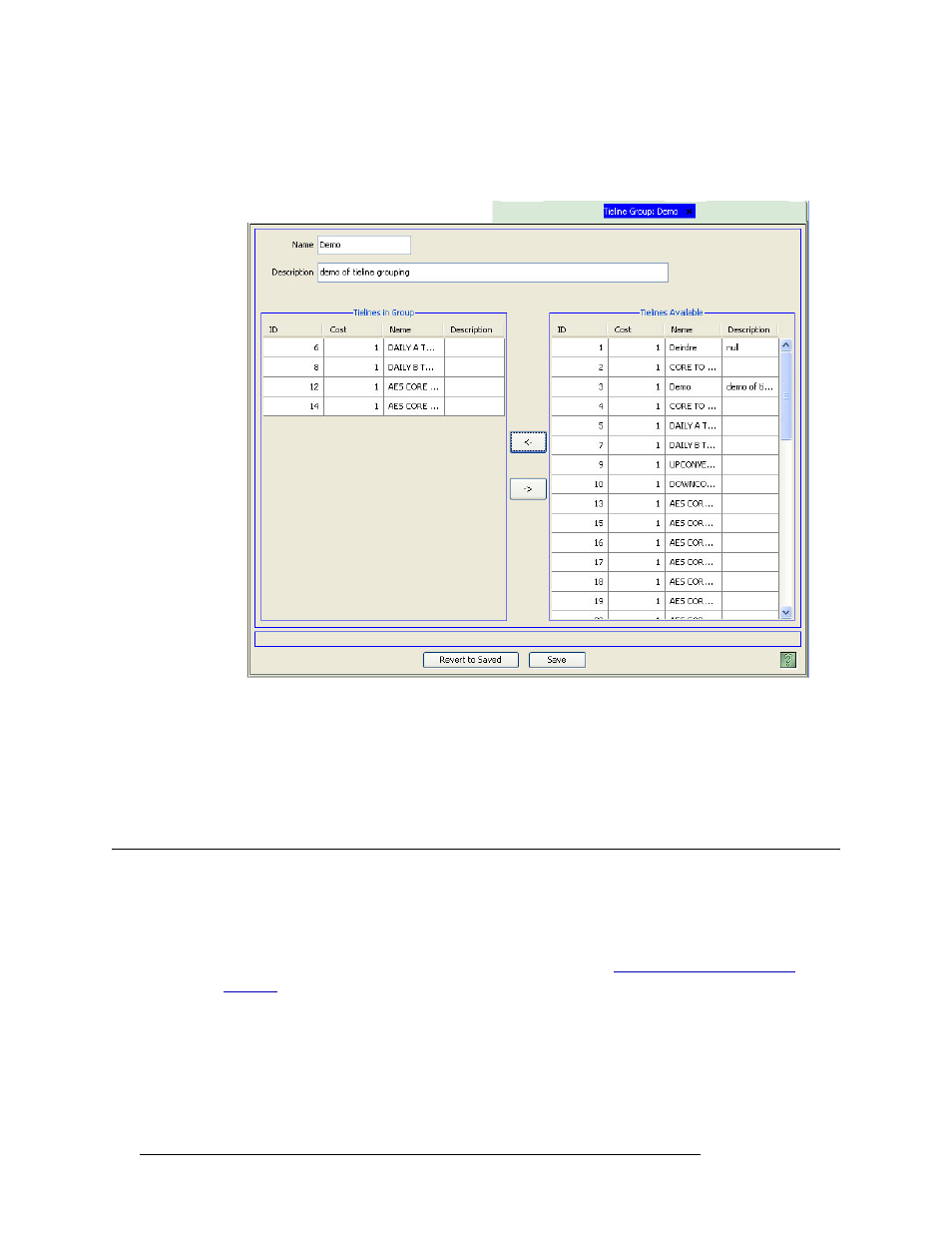

Figure 16-30. Tieline Group Details Page
5 Click
Save
.
Or
To revert to previously saved configuration, click
Revert to Saved
.
6 Click
X
on the window title tab to close the page.
Deleting a Tieline Group
Tieline groups can be deleted from the NV9000-SE system at any time. Once changes are saved,
there is no “undo” function; the configuration is permanently altered. To implement saved configu-
ration changes, the changes must be written to the NV9000 system controller for dispersal to con-
nected routers. For information on implementing changes, see
Implementing Configuration
Changes on page 17.
If currently connected to the NV9000 system controller and NV9000-SE, configuration changes
take effect immediately. It is recommended that tielines be removed off-line. That ensures that all
settings are correct before you go “live.”
Tieline groups can be deleted using the ‘Tieline Groups’ page accessed through the ‘Configuration’
pane or the ‘Tieline Group’ table, accessed through the ‘Views’ pane.
