528 Rev 3.0 • 25 Mar 10
B. Control Panels
NV9608
NV9608

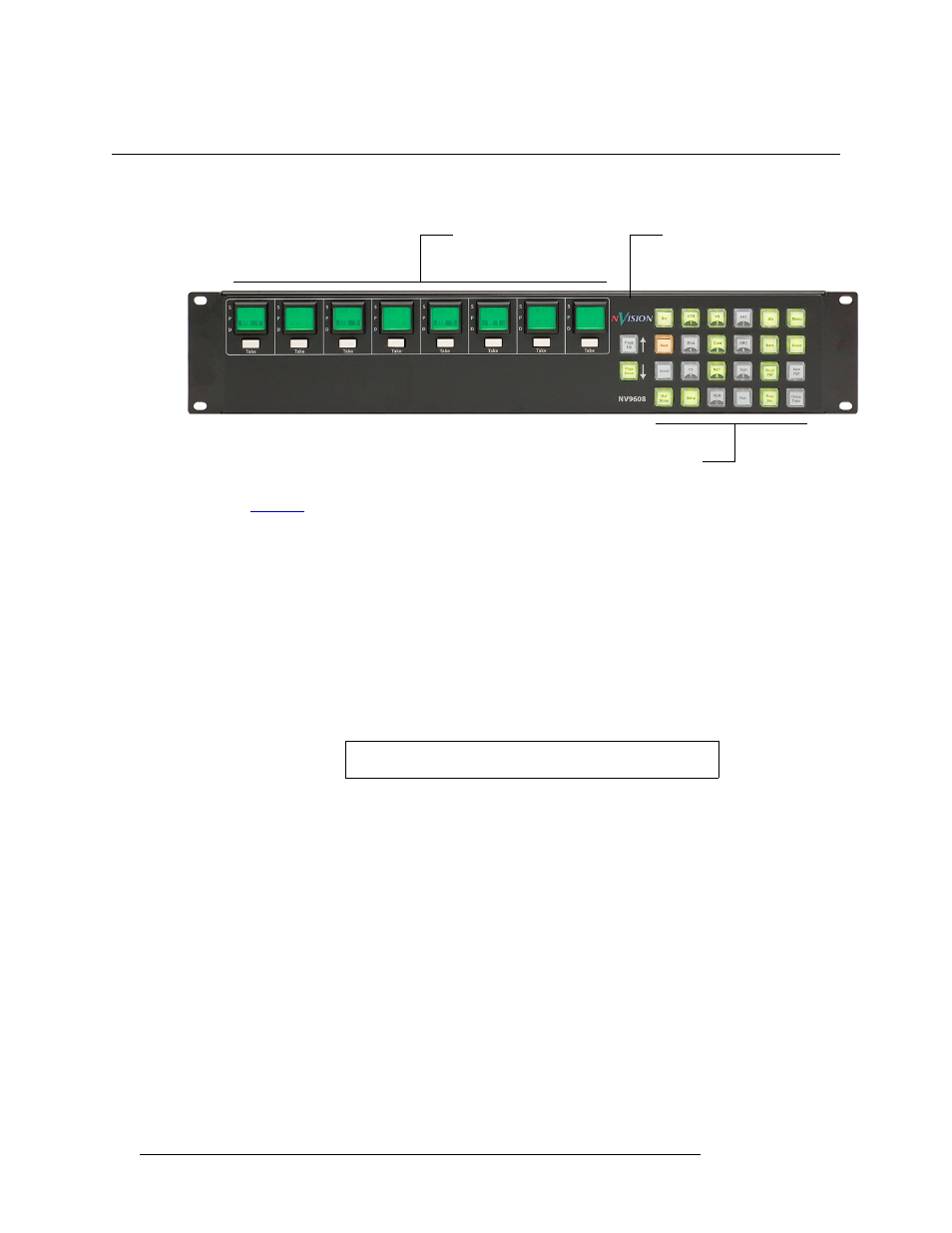

The NV9608 is an X-Y/multi-destination control panel featuring 8 LCD buttons:
See NV9608 on page 277 for information regarding the ‘NV9608’ configuration page.
This 2RU panel is organized as shown in the illustration above:
• LCD button units:
Each unit comprises a large LCD button and a small ‘Take’ button below the LCD button. The
LCD buttons each have 3 lines of text (up to 8 characters per line). In multi-destination mode,
the 3 lines of text display source, preset, and destination, respectively. A button can display
other messages in other contexts.
When defined, an LCD button represents:
• A destination (in multi-destination mode). The NV9608 provides support for up to 512
destinations on up to 64 pages. You can select a page with the (dedicated) scroll buttons.
• A salvo (in salvo mode). The NV9608 provides support for salvos on multiple pages of
salvo buttons. You can select a page with the (dedicated) scroll buttons.
In X-Y mode, the LCD buttons represent (1) the selected destination on the top left button, in
amber, and (2) up to 7 levels on the other buttons.
In menu mode, some of the LCD buttons execute menu functions.
The LCD buttons are also used — in a very specific way — during the definition of a “gang”
take.
• Dedicated
Page Up
and
Page Down
buttons. These buttons scroll through pages of destinations
or through pages of salvos. The scroll buttons page through levels if you have more levels
defined than fit on the LCD buttons.
• Keypad and category area — 24 buttons, 10 of which are have fixed functions. These are either
numeric buttons (0–9) or “category” buttons, depending on context. The other 14 buttons can
be assigned any function, including additional categories and suffixes.
LCD buttons
Category, numeric,
and function buttons
Up/down buttons
and arrows
Note UI2 allows only one page (8 destinations) at present.
