NV9000-SE Utilities • User’s Guide 67
7. Routers
Adding a Router
• For serial, from the drop-down fields select the serial port settings for the router. The
settings differ depending on which protocol was selected.

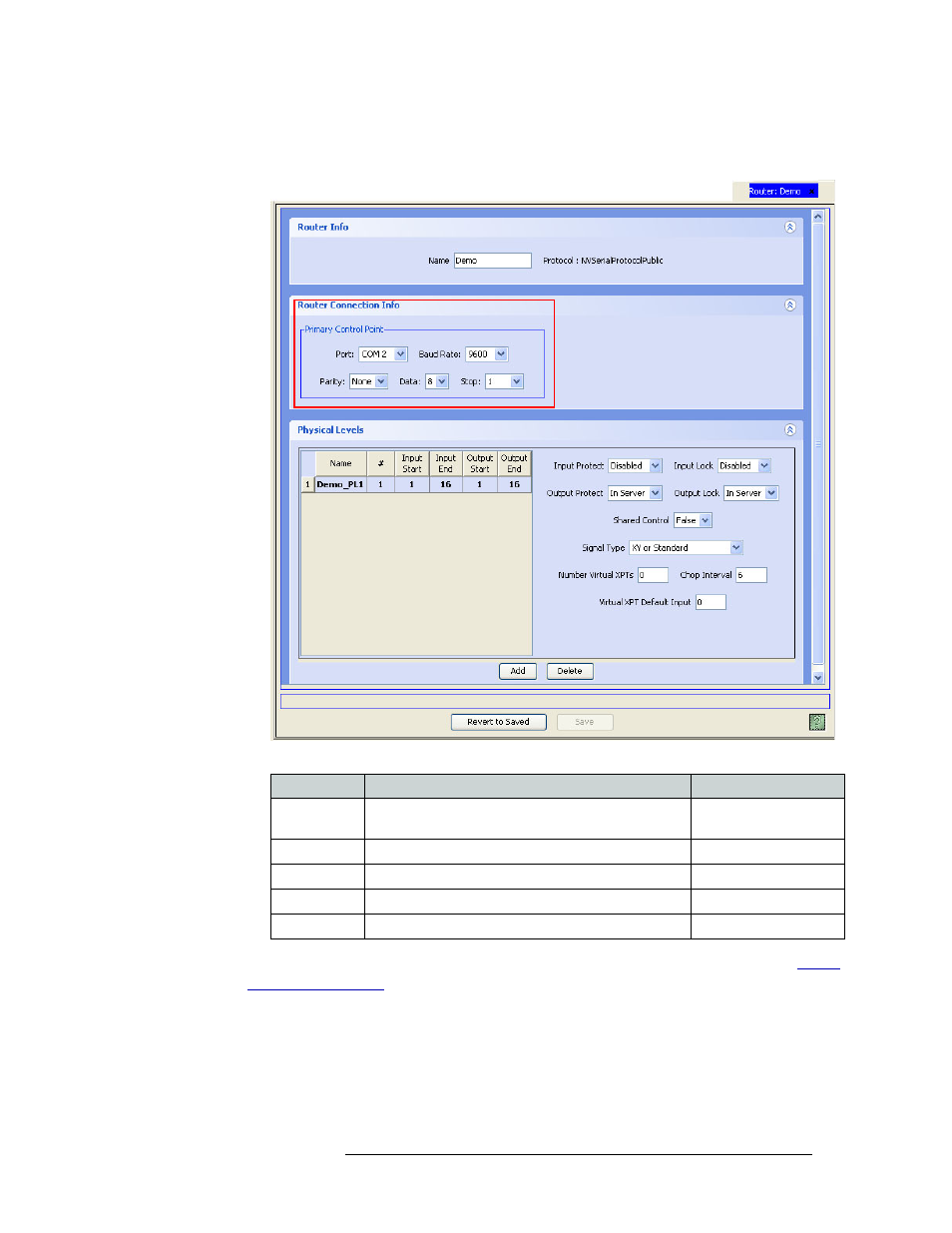

Figure 7-4. Router Details Page for Serial Protocol
6 The ‘Physical Levels’ section has two parts. On the left is a table of physical levels. (See About
Levels and Level Sets on page 112.) On the right are miscellaneous parameters and options.
Router Connection
Section
Field Description Options
Port Select the COM port for the router, between 1–48. By
default COM1 is selected.
Choices depend on the
options installed.
Baud Rate Select the baud rate for the port. The default is ‘38400’. 300, 1200, and so on.
Parity Select the parity for the port. The default is ‘None’. Even, Odd, None
Stop Select the stop bit for the port. The default is ‘1’. 1,2
Data Select the data bits for the port. The default is ‘8’. 7,8
