11. Control Panels
Adding a Control Panel
How to Configure a NV9641 Control Panel
1 Add a NV9641 control panel. (See Adding a Control Panel on page 240.)
Or
Locate the NV9641control panel being updated. (See
How to Locate and View Existing Control
Panels on page 347.) The ‘NV9641’ page appears:

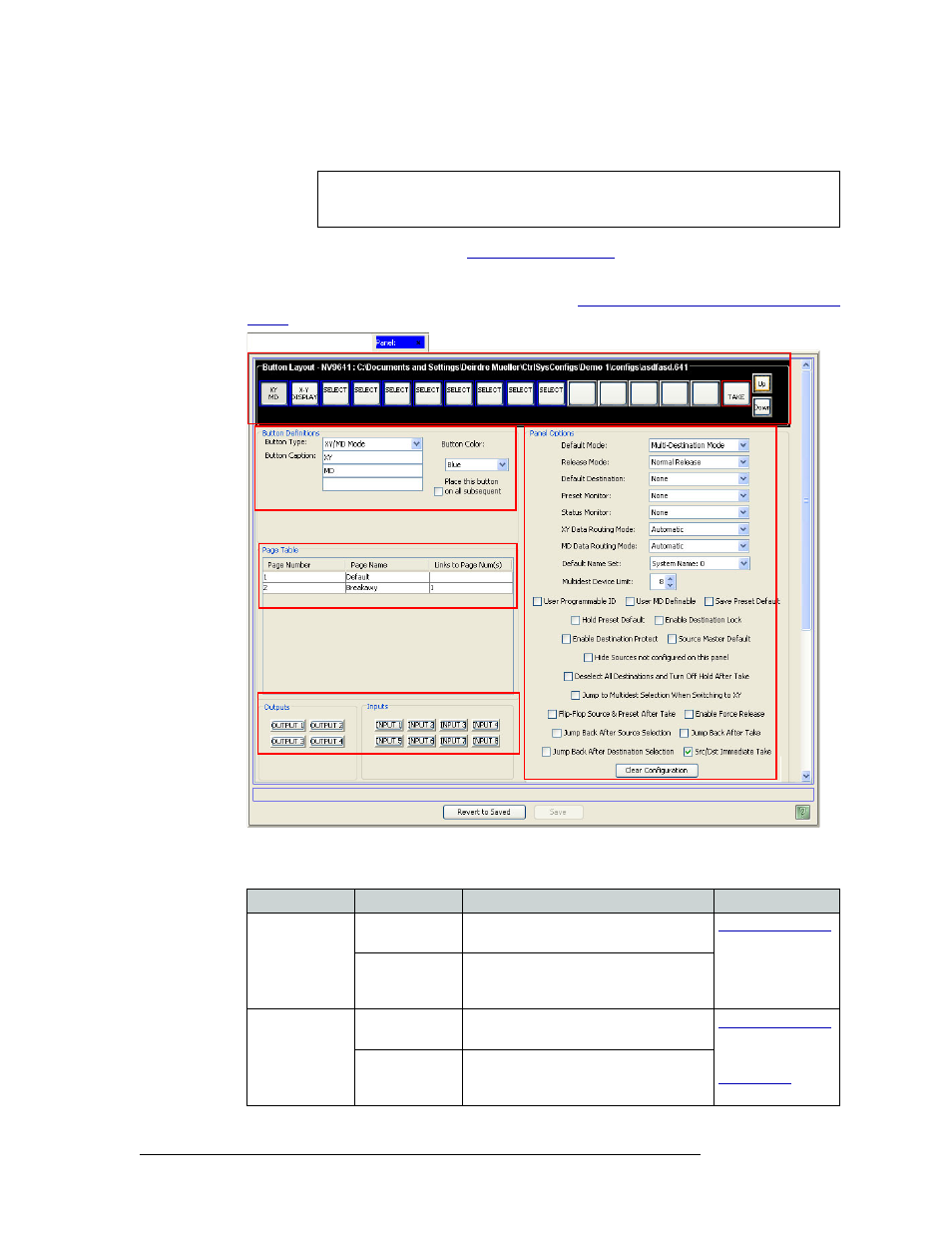

Figure 11-33. NV9641 Page
2 In the ‘Panel Options’ section, select control panel behaviors from the drop-down lists.
Important When configuring the control panel, it is important to select control panel options
first. This determines the subsequent button definitions.
Button Layout section
Button Definitions section
Panel Options section
Tree/Page section
Inputs / Outputs section
Field Option Description Related Topic
Panel Behavior
Mode
XY/MD Mode Panel functions in XY/multidestination
mode only.
Modes of Operation
on page 357
Page Mode During operation, the Up and Down
buttons navigate through all of the
pages in the order created.
Default Mode XY Mode Starts the control panel in XY mode after a
reset. Modes of Operation
on page 357
and
Default State on
page 356
Multidest Starts the control panel in MD mode after a
reset.
