176 Rev 3.0 • 25 Mar 10
9. Devices
Updating Devices
Updating Input/Output Connection Numbers
I/O connectors on devices are assigned numbers. Each connector is either a source (providing an
input) or a destination (receiving an output). At any time, the numbers assigned each connector can
be updated to meet your facility switching needs.
The numbers assigned to connectors on a device can be changed using the ‘Devices’ page accessed
through the ‘Configuration’ pane.
How to Update I/O Connection Numbers
1 Launch NV9000-SE. (See Launching and Exiting the Application on page 12.)
2 From the Navigation area, select the ‘Configuration’ pane and then ‘Devices’. The ‘Devices’
page displays, as shown in Figure 9-14.
To narrow the list of devices that display, enter the first characters of a device name in the
‘Device Filter’ field. The list is automatically reduced to display only devices matching that
character string.
Or
Select a level set from the ‘Level Set Filter’ drop-down list. The list is automatically reduced to
display only devices matching that level set.

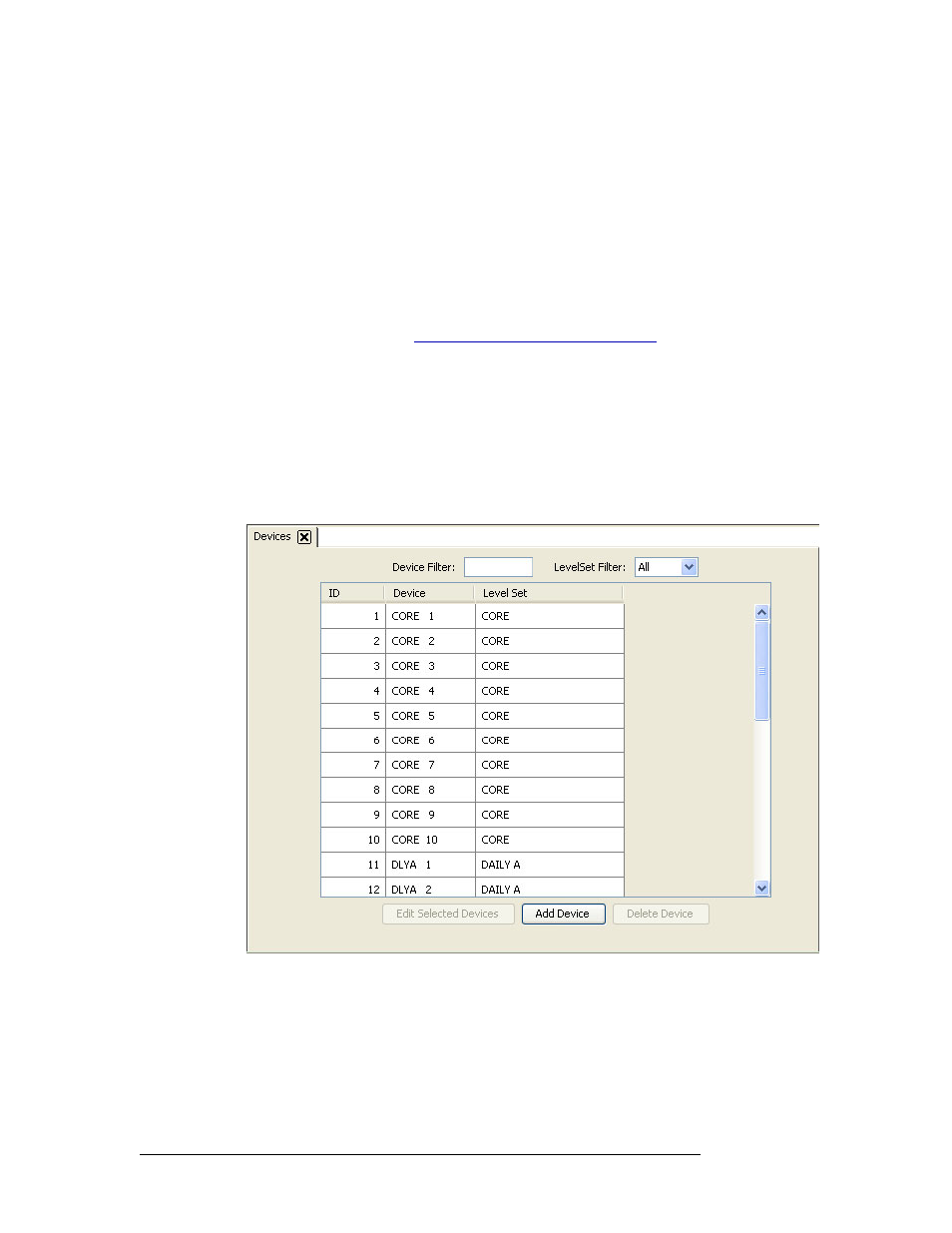

Figure 9-14. Devices Page
