186 Rev 3.0 • 25 Mar 10
9. Devices
Device Connections Queries
Exporting a Device Query
Queries run using the ‘Device Physical Connections’ table can be exported for viewing outside the
NV9000-SE system. Each device is exported as a separate file. For example, if five devices are
listed in the table, five files will be created and exported.
How to Export a Device Query
1 Launch NV9000-SE. (See Launching and Exiting the Application on page 12.)
2 From the Navigation area, select the ‘Views’ pane, then ‘Queries & Advanced Operations’ and
then ‘Device Physical Connections’. The ‘Device Physical Connections’ table displays, as
shown in
Device Phys Conns Table with Results on page 186.
3 Select a level set from the ‘Select Level Set for Query’ drop-down list. All devices within that
level set display, as shown in Figure 9-23. For more information on virtual levels, see About
Levels and Level Sets on page 112.

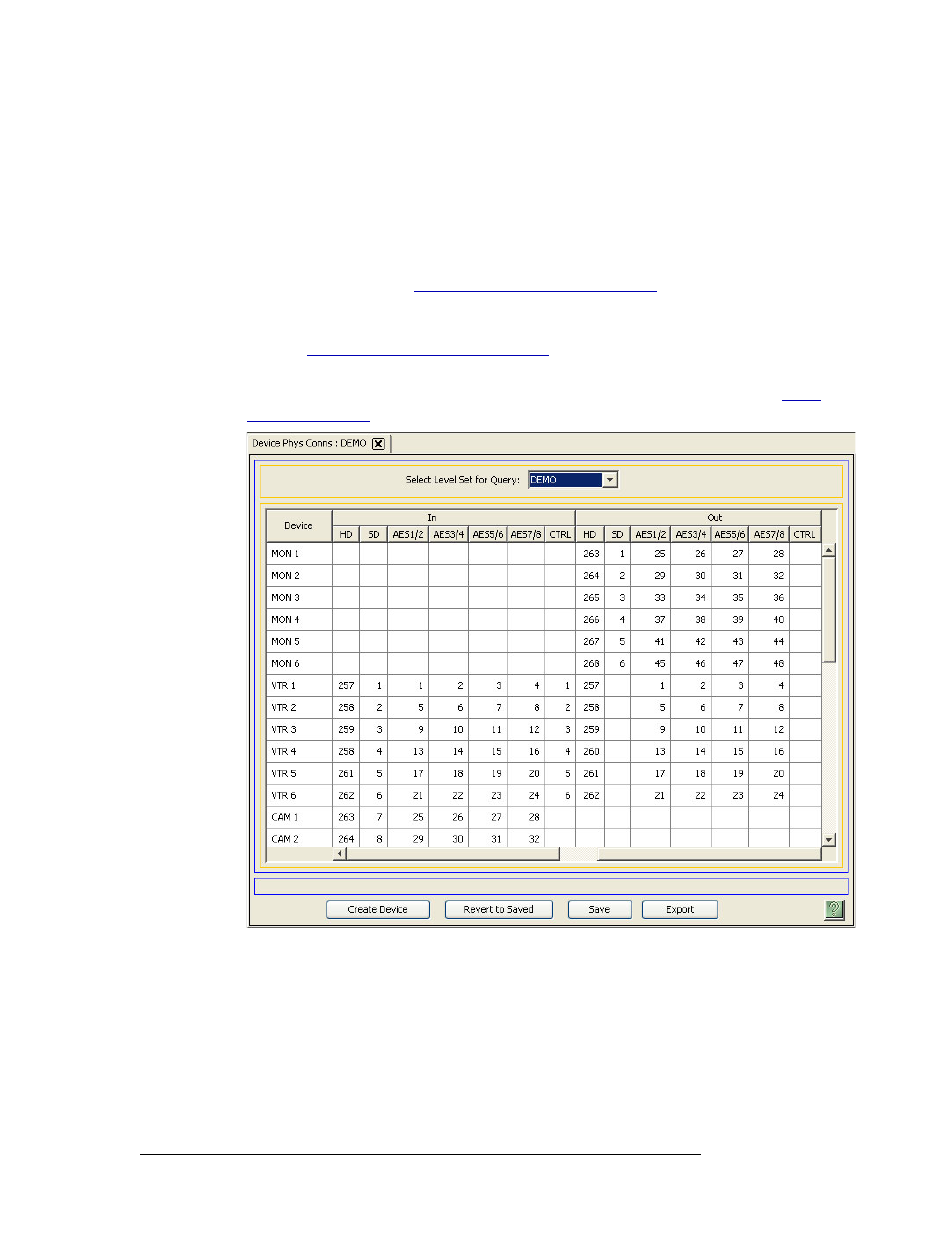

Figure 9-23. Device Phys Conns Table with Results
4 Click
Export
. The ‘Save’ dialog box appears.
5 On the dialog box, browse to the location where you want the exported files saved.
6 Enter a ‘File Name’ for the exported files in the field provided and click
Save
. The files are cre-
ated at saved to the location selected. All files are titled with the name entered in Step 5, with
the addition of a sequencing number.
7 Click
X
on the window title tab to close the table.
