11. Control Panels
Adding a Control Panel
‘User Selectable’ allows the operator to select the device (using the selection buttons) and
preset a new source. Uncheck the ‘User Selectable’ if check box if the destination is to be
“view only.” In view-only mode, the user cannot route to the destination, but other control
panels may.
d Select a ‘Destination’ from the drop-down list and click OK . The destination displays on the
selected line in the control panel window.
e Click
OK
to close the dialog box and save your changes.
Or
Click
Cancel
to close the dialog box without saving changes.
f Repeat steps b through e until all destinations you want are listed.
g To remove a destination, select the line in the window and click
Delete Entry
on the dialog
box.
6 Set up salvos as needed. For information about salvos, see Salvos on page 431:
a Right-click in the control panel window if “Salvo Display” does not appear, as shown here:

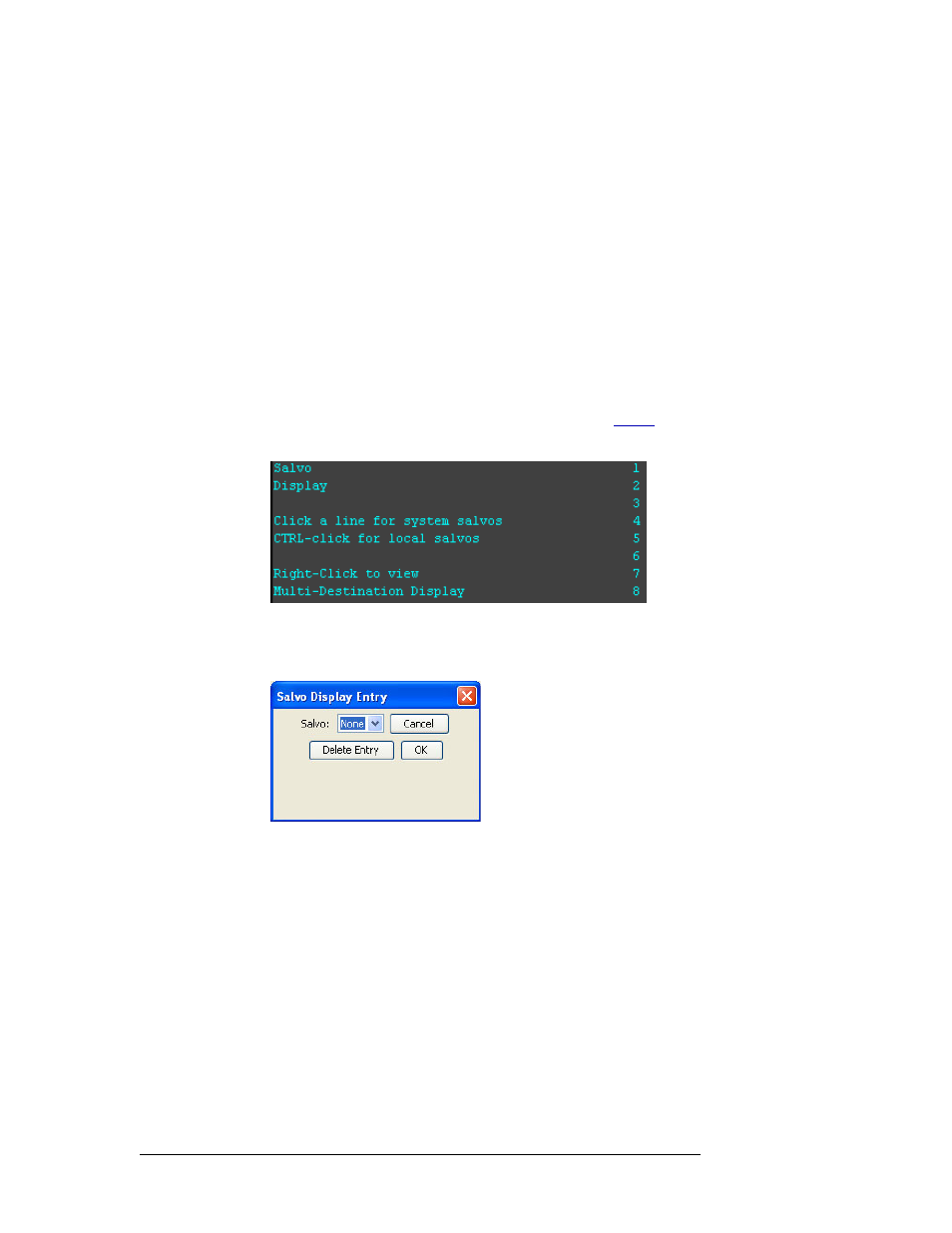

Figure 11-9. Panel Window Displaying Salvo Options
b Click on a line in the window to select it. Click
Page Up
to view additional lines. The win-
dow displays 8 lines at a time. The ‘Salvo Display Entry’ dialog box appears:
Figure 11-10. Salvo Display Entry Dialog Box
c Choose a salvo from the drop-down menu and click
OK
. The salvo displays on the selected
line in the control panel window and the dialog box closes.
Or
Click
Cancel
to close the dialog box without saving changes.
d Repeat steps b and c until all salvos you want to add display in the window.
e To remove a salvo, select the line in the window and click
Delete Entry
on the dialog box.
7 Click
Save
.
Or
To revert to the previously saved configuration, click
Revert to Saved .
8 Click
X
on the window title tab to close the page.
