NV9000-SE Utilities • User’s Guide 391
13. EC9700 and EC9710 Panels
Adding an EC9700/EC9710 Panel
7 In the ‘Panel Presence’ subsection within the ‘GUI Options’ section, select control panel lay-
outs. To have one of the control panel layouts display as the default whenever the control panel
is opened, select the ‘Default’ radio button next to that option.
8 In the ‘Category Button List’ subsection of the ‘Lists’ section, add buttons to the display con-
trol panel that enables the operator to select a category of devices (For more information on cat-
egories, see
Using Categories and Suffixes on page 190.):
a Click
Add
. The ‘Add Category Button’ dialog box appears:

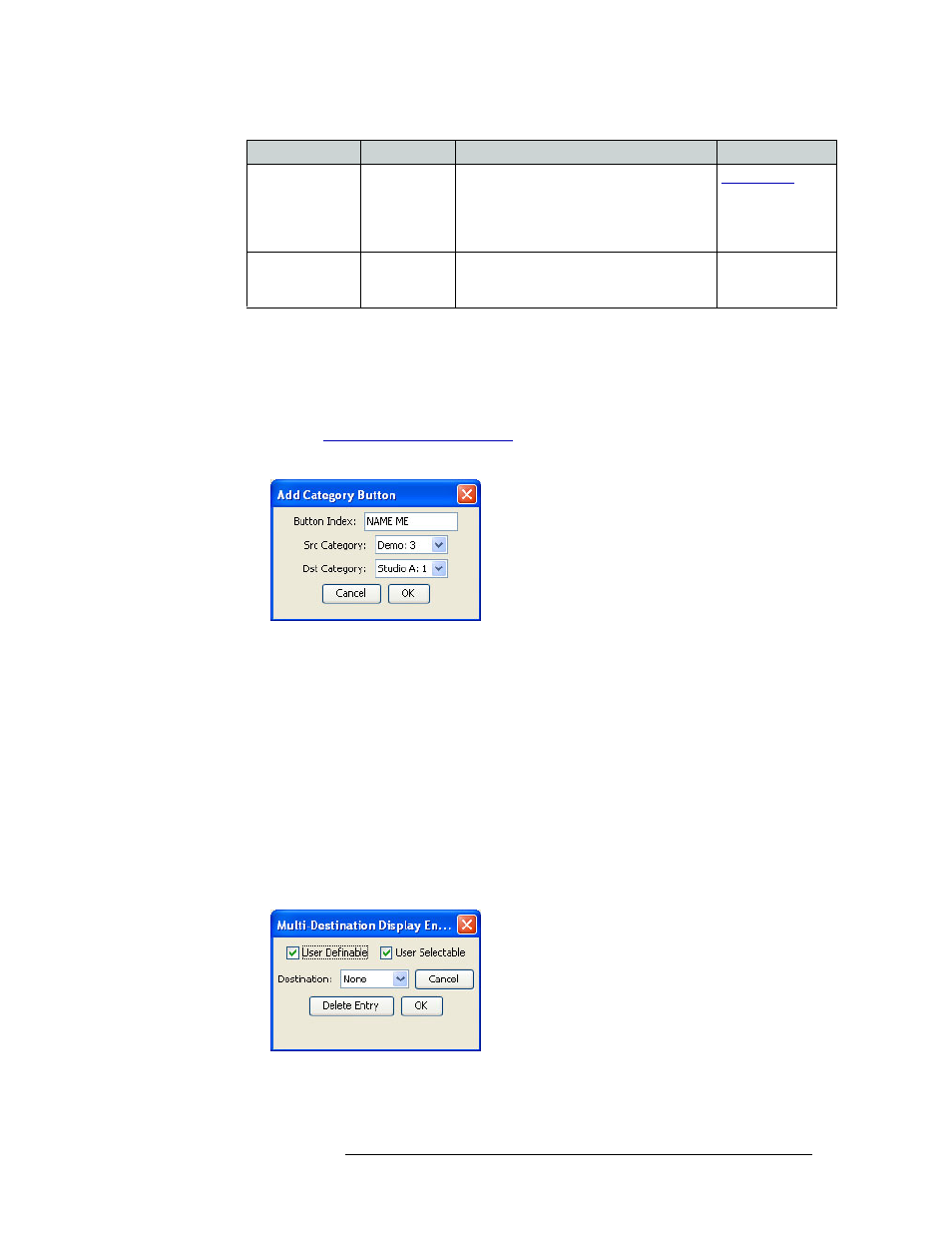

Figure 13-3. Add Category Button Dialog Box
b Enter a button name in the ‘Button Index’ field.
c Select a ‘Src Category’ (source category) from the drop-down list.
d Select a ‘Dst Category’ (destination category) from the drop-down list.
e Click
OK
. The button appears in the ‘Category Button List’.
f Repeat steps a through e until all desired buttons are added.
9 In the ‘MultiDestination Display’ subsection of the ‘Lists’ section, add buttons to the control
panel that enable the operator to send signals to multiple devices:
a Click on the numbered line to which you want to add a button and click
Add
. The button
appears on that line in the control panel GUI.
The ‘Multi-Destination Display Entry’ dialog box appears:
Figure 13-4. Multi-Destination Display Entry Dialog Box
Save Preset
Default
(check or
uncheck)
(MD only) When on, this button causes the
control panel to save whatever source is in
the ‘Preset’ column, so that if the control
panel is reset, that source reappears. When
off, the presets are not saved.
Default State on
page 360
Hide
Unconfigured
Sources (check or
uncheck) Hides name of all source devices that are not
presently configured. The control panel
displays asterisks instead. —
Field Option Description
