9. Devices
Adding a Device
4 Click
Next
. The ‘Multiple Devices Details’ page appears, as shown in Figure 9-4.
Or
Click
Finish
to save the new device information to the system.
Or
Click
Cancel
to clear the fields without saving any information.

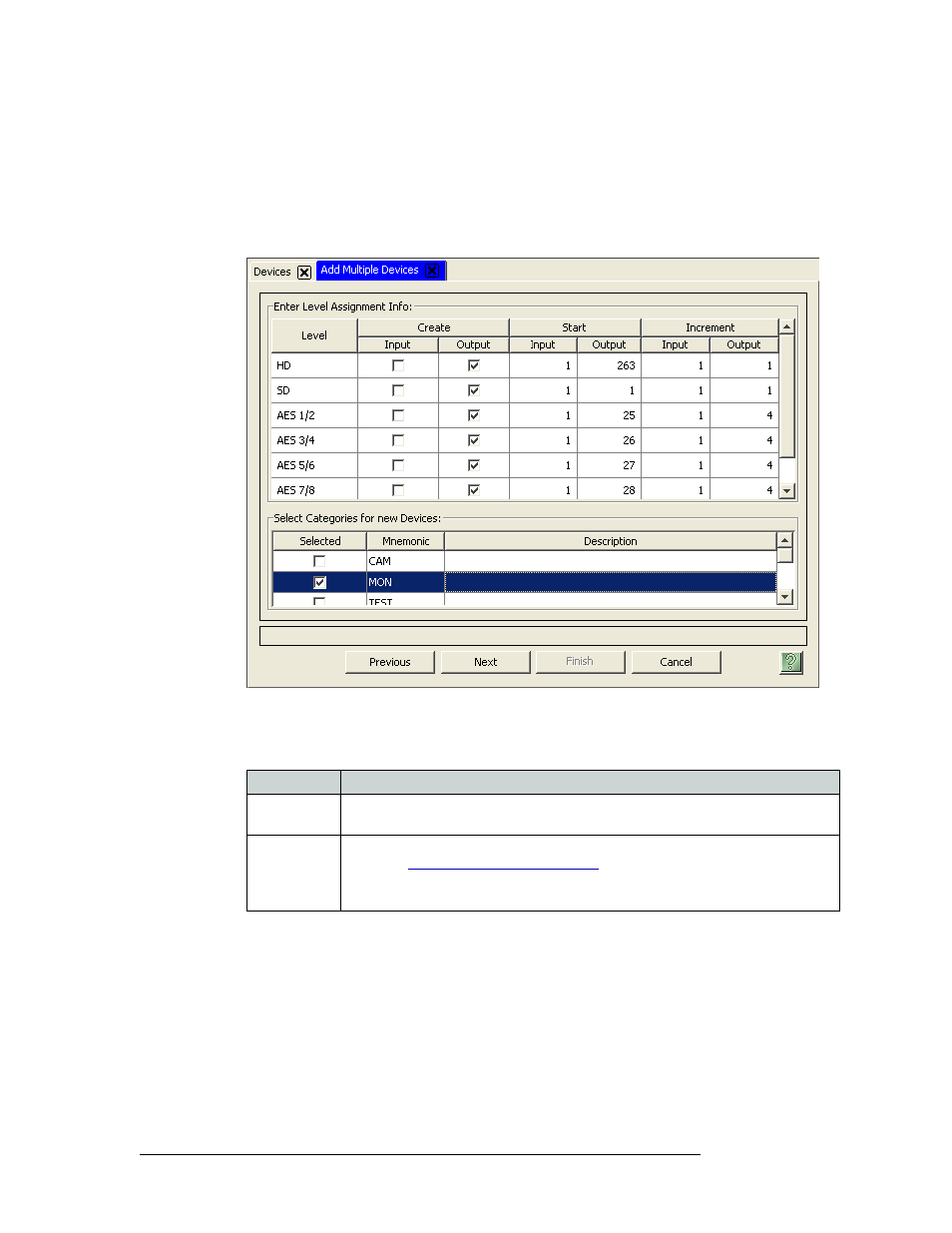

Figure 9-4. Multiple Devices Details Page
5 The ‘Enter Level Assignment Info’ section displays the virtual levels that make up the level set
selected in the previous page (Step 3). Enter information as needed:
Column Description
Max The maximum number of inputs and outputs are listed. Enter new maximums if needed
to match the type of device being added.
Create Check the check box in each ‘Input’ and ‘Output’ column as they apply to each virtual
level. (See
Physical Levels vs. Virtual Levels on page 112.)
For example, if adding monitors, all connections will be to outputs, with the exception
of the control level. Therefore the output column for that level must be checked.
