9. Devices
Updating Devices
Enter the first characters of a level set name in the ‘Level Set Filter’ field. The list is automati-
cally reduced to display only level sets matching that character string.

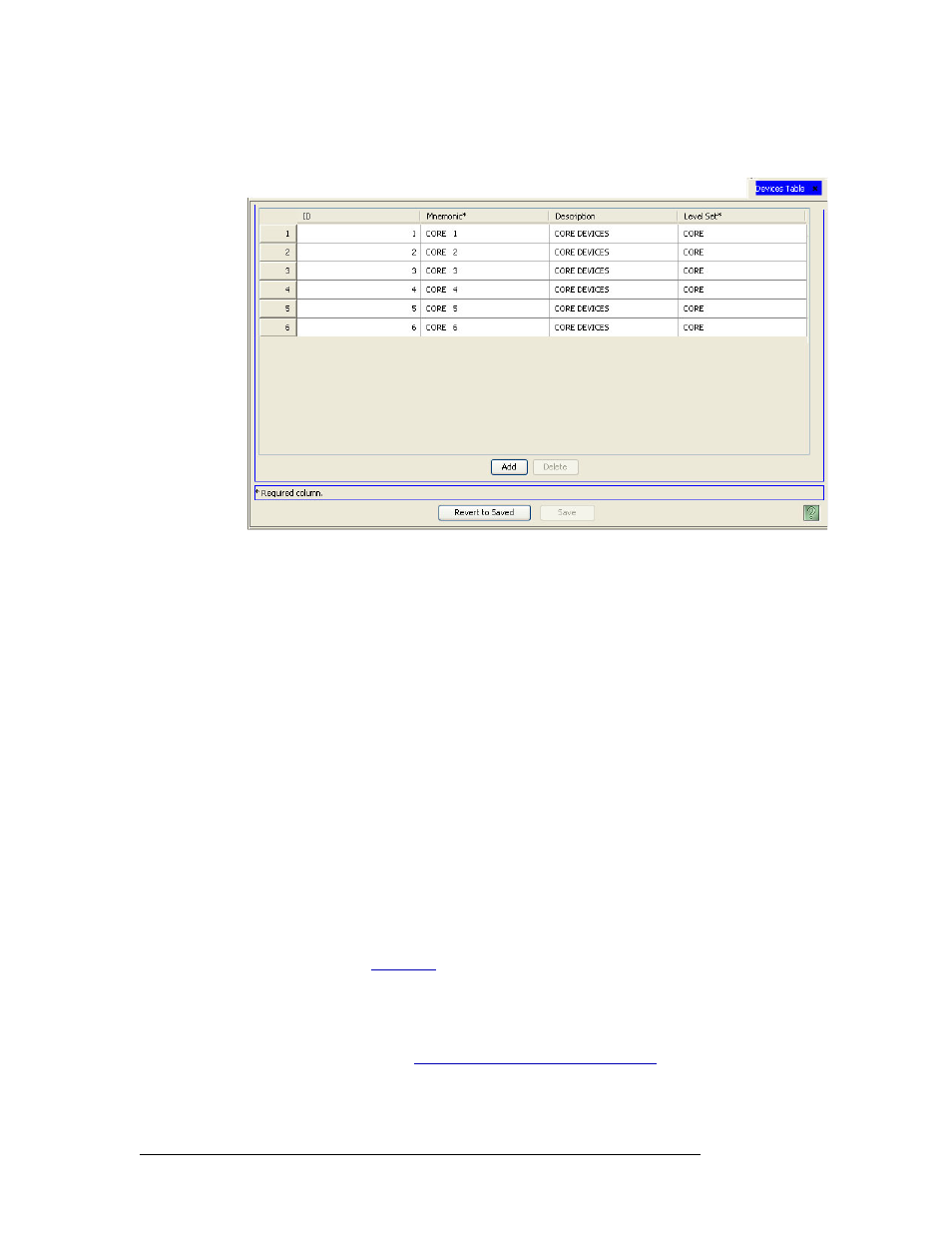

Figure 9-12. Devices Table
3 Locate the row listing the device being updated.
4 Click on the ‘Mnemonic’ field to activate it and enter a new name.
5 Click on the ‘Description’ field to activate it and enter a new description.
6 Click
Save
.
Or
To revert to previously saved configuration, click
Revert to Saved
.
7 Click X on the window title tab to close the table.
Updating the Device’s Assigned Level Set
A level set is composed of virtual levels. A virtual level typically represents a signal type used in
your system, such as AES or HD. Unlike physical levels that represent physical divisions and are
specific to a router or device, virtual levels are signal type abstractions that can be applied to all
routers and devices. Virtual levels are grouped together as level sets. Every device must have a
level set assigned and that level set must include virtual levels that encompass the signal types man-
aged by the device.
The level set(s) assigned to a device can be changed using the ‘Devices’ table accessed through the
‘Views’ pane. You can only select from a list of existing level sets. For instructions on adding or
updating level sets, see
Level Sets on page 111.
To view a list of existing level sets, from the ‘Views’ pane, select ‘Level Sets’.
How to Update Device Level Sets
1 Launch NV9000-SE. (See Launching and Exiting the Application on page 12.)
2 From the Navigation area, select the ‘Views’ pane and then ‘Devices’. The ‘Devices’ table dis-
plays, as shown in Figure 9-13.
