102 Rev 3.0 • 25 Mar 10
7. Routers
Excluding Crosspoints
8 Click
Save
.
Or
To revert to previously saved configuration, click
Revert to Saved
.
9 Click X on the window title tab to close the table.
How to Update a Crosspoint Exclusion
1 Launch NV9000-SE. (See Launching and Exiting the Application on page 12.)
2 From the Navigation area, select the ‘Views’ pane and then ‘XPTExclusions’. The ‘XPTExclu-
sions’ table displays, as shown in Figure 7-33.
To narrow the list of physical levels that display, enter the first characters of a physical level in
the ‘Physical Level Filter’ field. The list is automatically reduced to display only levels match-
ing that character string.

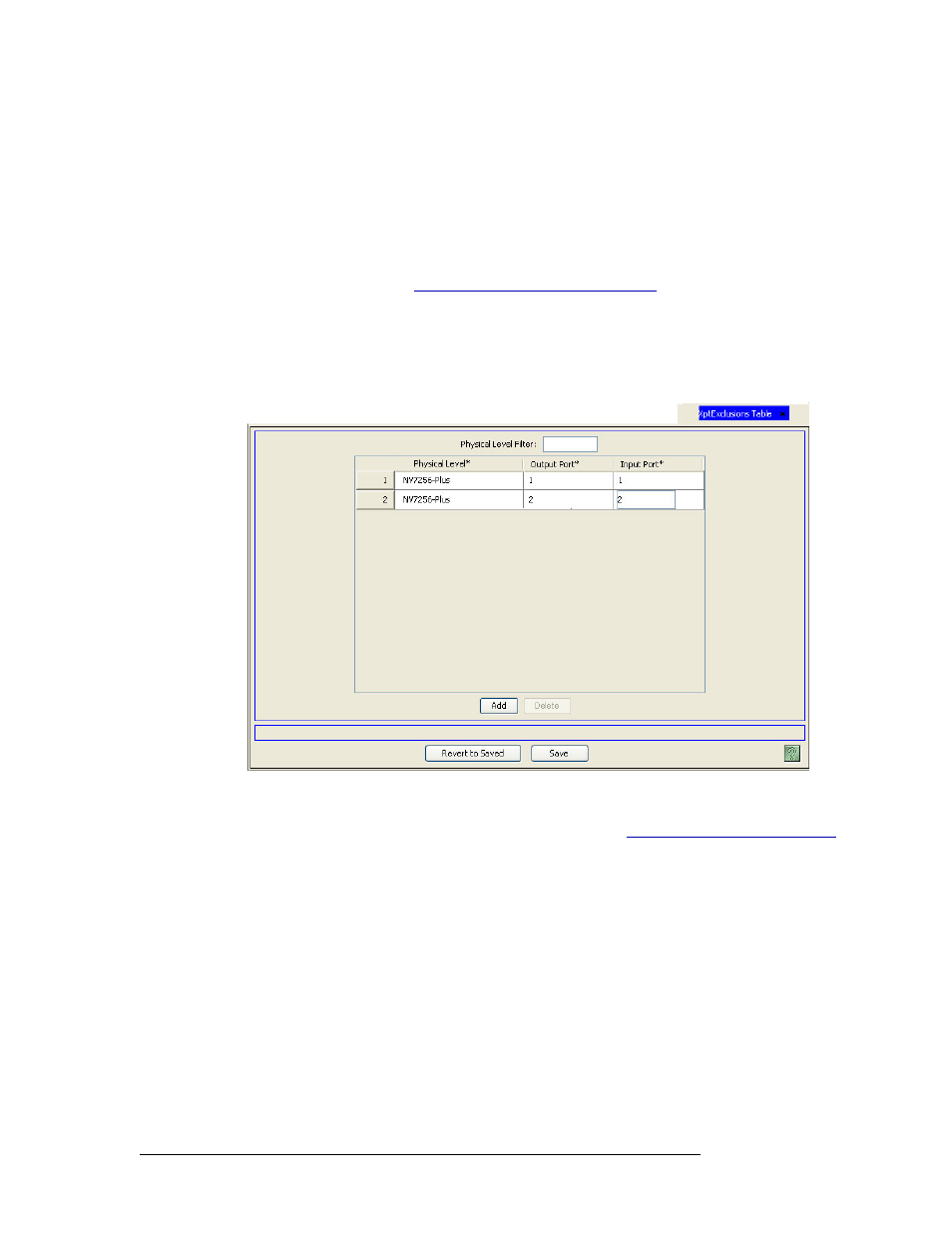

Figure 7-33. XPT Exclusion Table
3 On the row listing the crosspoint exclusion being updated, click in the ‘Physical Level’ column
and select a new physical level from the drop-down list. (See Physical Levels vs. Virtual Levels
on page 112.)
4 Enter a new ‘Output Port’ in the field provided. The port number is the specified physical level,
corresponding to the destination you want to protect.
5 Enter a new ‘Input Port’ in the field provided. The port number is the specified physical level,
corresponding to the source you want to exclude.
6 Click
Save
.
Or
To revert to previously saved configuration, click
Revert to Saved
.
7 Click X on the window title tab to close the table.
