8. Level Sets
Managing Signal Types and Signal Binding
4 In the blank row, click on a cell in a column to activate it and select information as follows:
5 Click
Save
.
6 Click
X
on the window title tab to close the table.
Viewing Signal Type Information
Depending on the information you want to view, different tables present different signal type infor-
mation.
Tables are accessed through the ‘Views’ pane:
• The ‘Signal Type’ table lists all signals currently available in the NV9000-SE system.
• The ‘Virtual Level Signal Binding’ table lists all virtual levels that have been bound to a signal
type and the type of signal.
How to View a Signal Type
1 Launch NV9000-SE. (See Launching and Exiting the Application on page 12.)
2 From the Navigation area, select the ‘Views’ pane and then ‘Signal Types’. The ‘Signal Types’
table appears, as shown in Figure 8-34.
To narrow the list of signals that display, enter the first characters of a signal type in the ‘Name
Filer’ field. The list is automatically reduced to display only signal types matching that charac-
ter string.

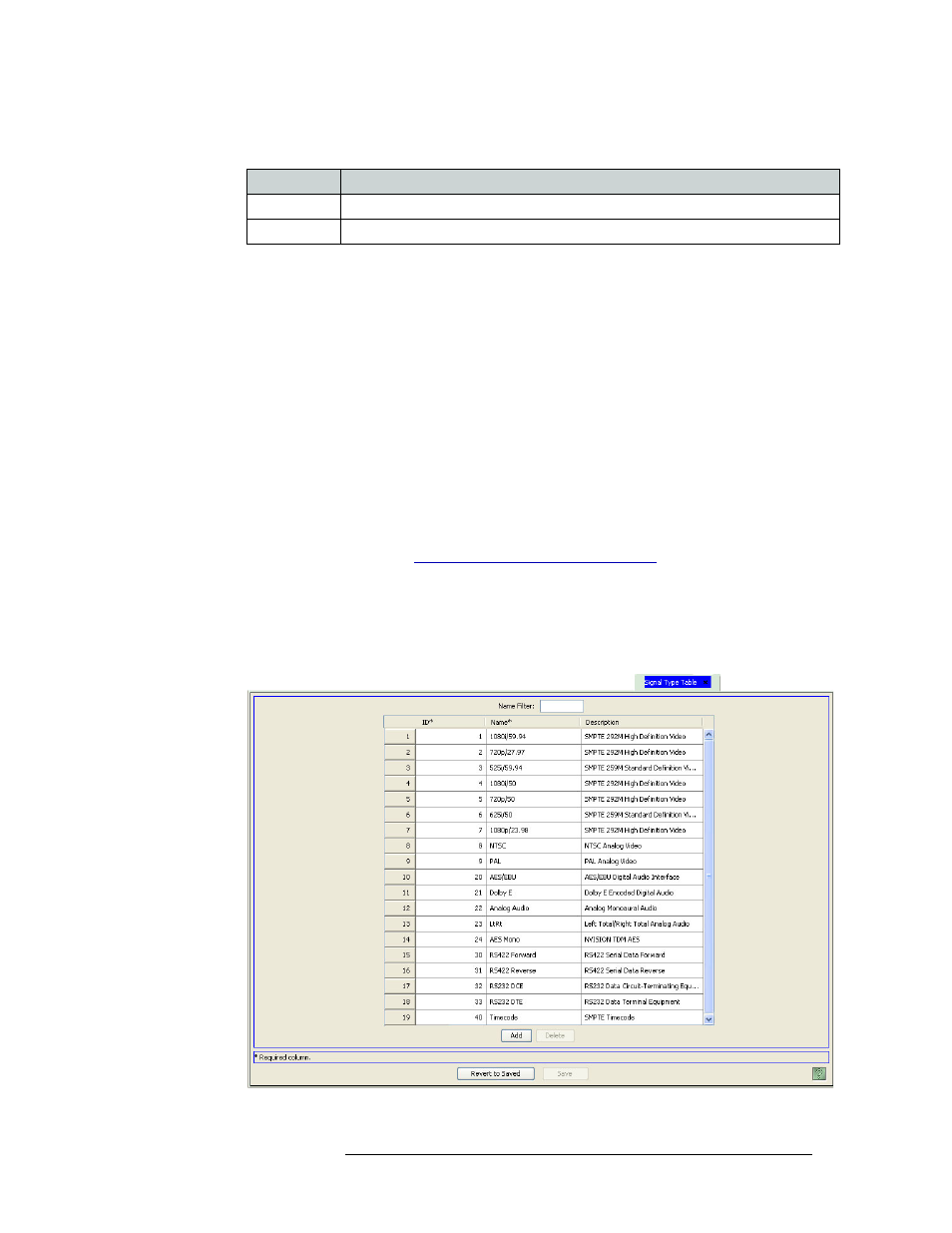

Figure 8-34. Signal Types Table
Column Description
Virtual Level From the drop-down list, select a virtual level.
Signal Type From the drop-down list, select a signal type to bind to the virtual level selected.
