11. Control Panels
Adding a Control Panel
The ‘NV9608’ page appears:

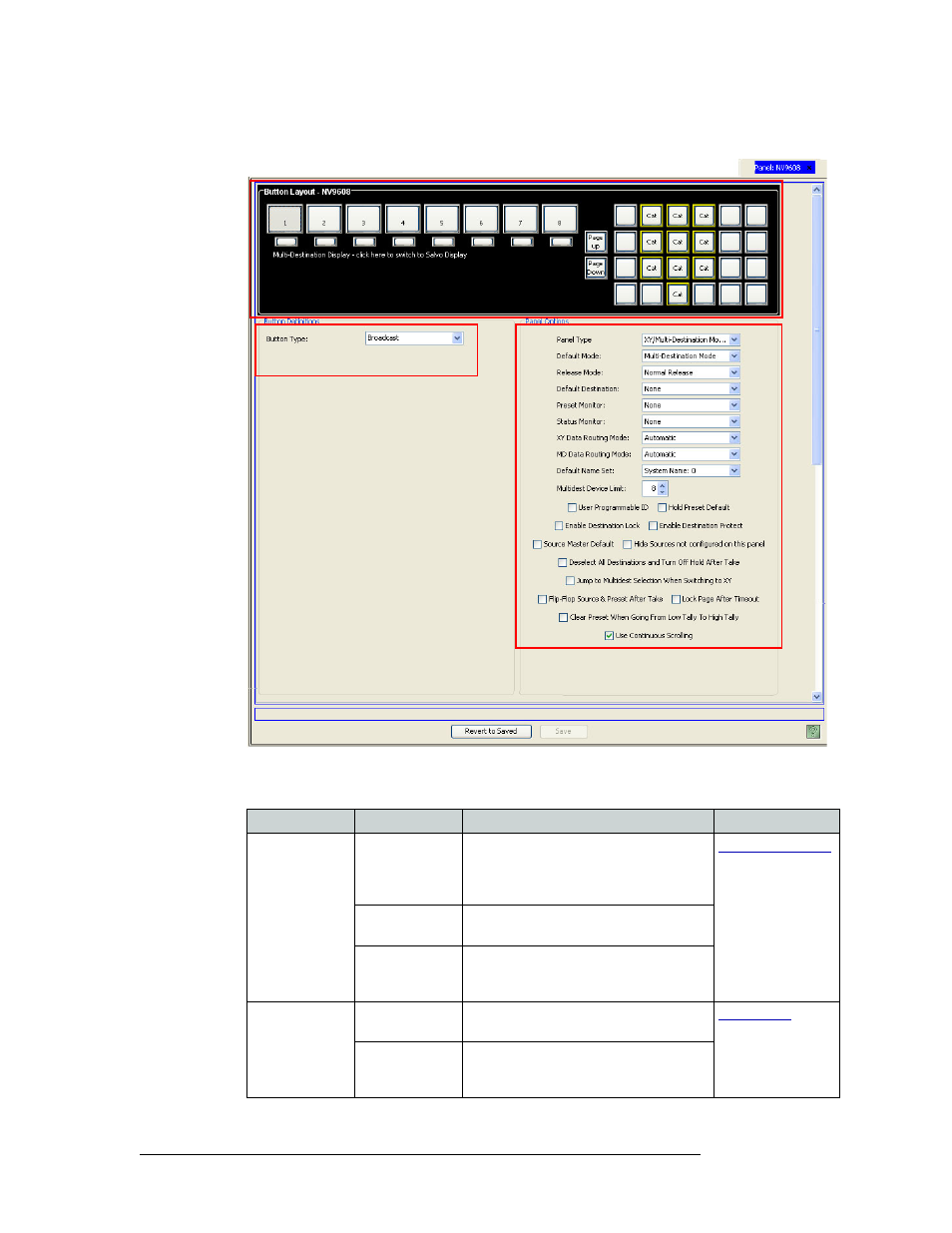

Figure 11-19. NV9608 Page
2 In the ‘Panel Options’ section, select control panel behaviors from the drop-down lists:
Button Layout section
Button Definitions section
Panel
Options
section
Field Option Description Related Topic
Panel Type XY / Multi-
Destination
Mode
Panel can be used in either XY or
Multidestination modes. If this option is
chosen, place an XY/MD button on the
control panel.
Modes of Operation
on page 357
XY Mode Locks control panel in XY mode.
Multidestination mode cannot be accessed.
Multi-
Destination
Mode
Locks the control panel in multidestination
mode. XY mode cannot be accessed.
Default Mode XY Mode Starts the control panel in X-Y mode after a
reset. Default State on
page 356
Multi-
Destination
Mode Starts the control panel in multidestination
(MD) mode after a reset.
