Grass Valley NV9000-SE v.3.0 - Manual (Page 425)

NV9000-SE Utilities • User’s Guide 405
13. EC9700 and EC9710 Panels
Updating EC9700/EC9710 Panel Details
To narrow the list of panels that display, enter the first characters of a control panel name in the
‘Computer (or Window User) Name Filter’ field. The list is automatically reduced to display
only panels matching that character string.

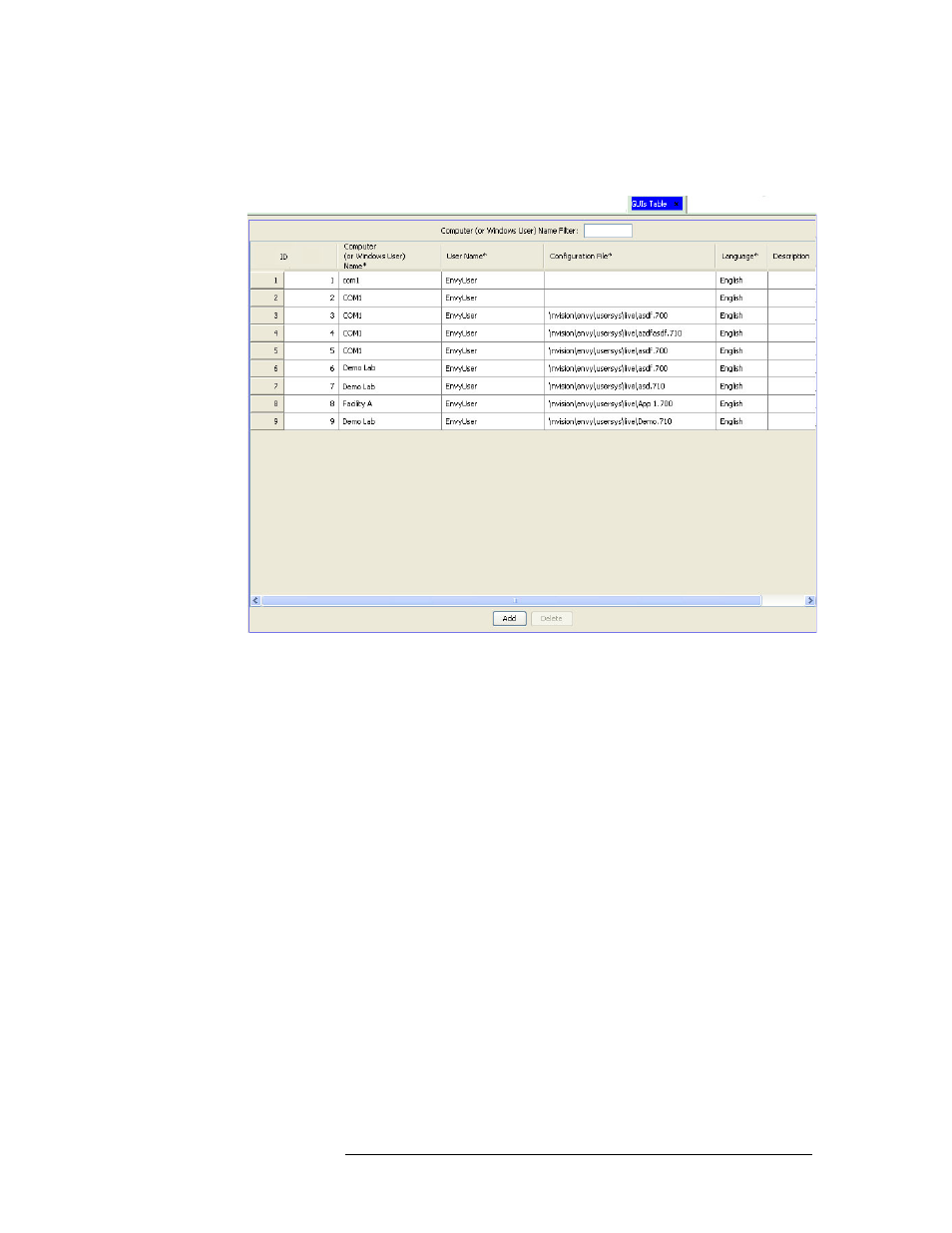

Figure 13-15. GUIs Table
3 Locate the row listing the control panel being updated.
4 Click on the ‘User Name’ field to activate it and select a new user name from the drop-down
list.
5 Click
Save
.
Or
To revert to previously saved configuration, click
Revert to Saved
.
6 Click
X
on the window title tab to close the table.
Changing the Associated Language
By default, English is associated with all control panel configurations. Other languages are not
available at this time, but may be available in future releases.
Updating EC9700/EC9710 Panel Configurations
Panel configurations are managed through the ‘EC9700/9710’ page accessed through the ‘Configu-
ration’ pane. Each EC9700/EC9710 control panel has a unique interface. To update a control panel
configuration, you must access that specific interface.
