356 Rev 3.0 • 25 Mar 10
11. Control Panels
Panel Operation
To narrow the list of panels that display, enter the first characters of a control panel name in the
‘Panel Name Filter’ field. The list is automatically reduced to display only panels matching that
character string.

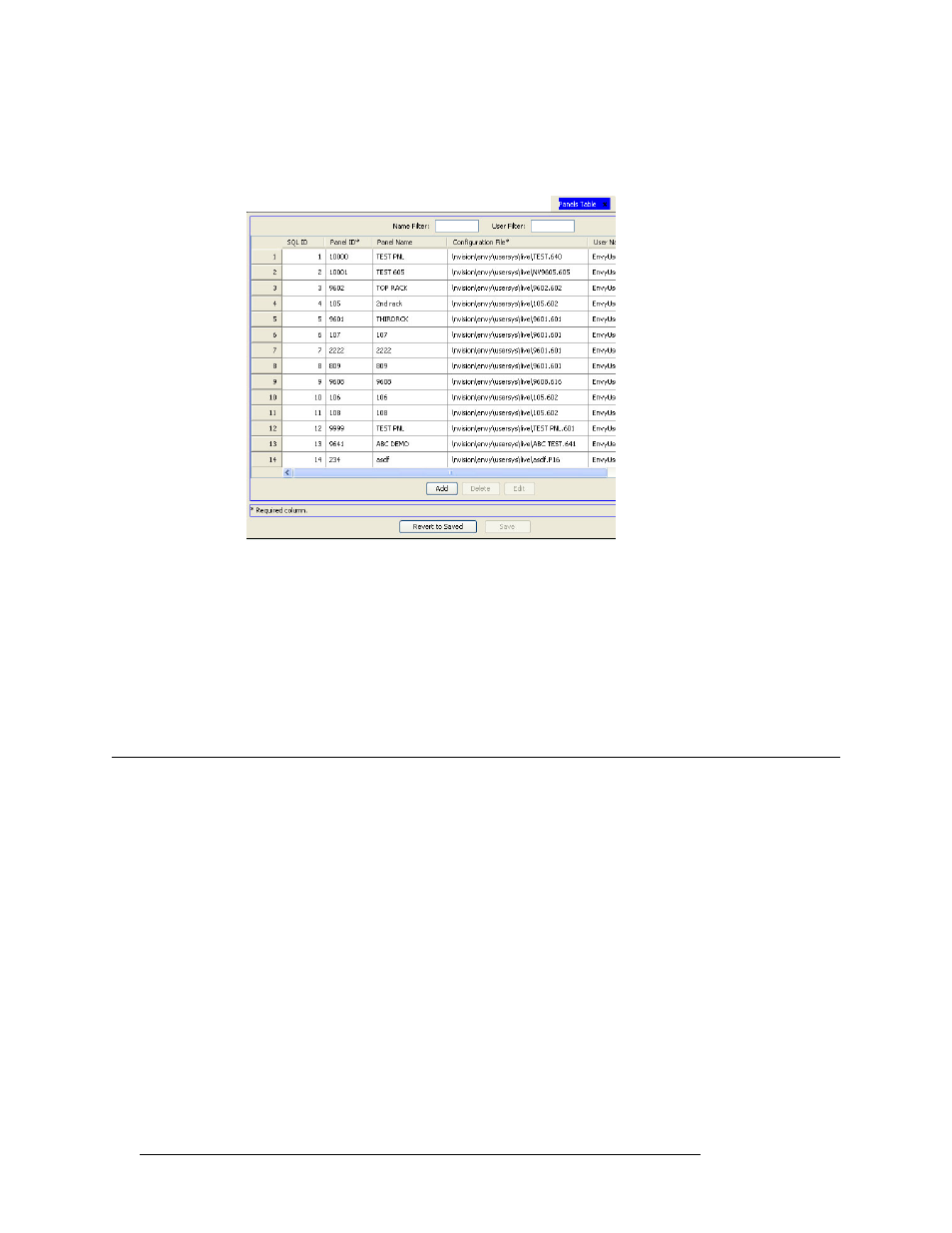

Figure 11-55. Panels Table
3 From the list of panels that display, click anywhere in the row listing the control panel being
deleted and click
Delete
. The row is removed from the list.
4 Click
Save
.
Or
To revert to the previously saved configuration, click
Revert to Saved .
5 Click
X
on the window title tab to close the table.
Panel Operation
This section describes the function that occurs when a specific button is pressed, default behaviors,
and modes of operation. For details on performing a specific task on the control panel, refer to the
control panel’s User’s Guide.
Default State
The default control panel state consists of the default destination and the default mode in a control
panel’s current configuration. It occurs under the following conditions:
• The panels’s power is cycled.
• A
Default State
button is pressed.
• Stopping and starting the NV9000 server.
• The control panel configuration is updated on-line.
