84 Rev 3.0 • 25 Mar 10
7. Routers
Updating Router Details
or updating control points, see Managing Control Points on page 96. To view a list of current con-
trol points, from the ‘Views’ pane select ‘Control Points’.
How to Update Router Control Points
1 Launch NV9000-SE. (See Launching and Exiting the Application on page 12.)
2 From the Navigation area, select the ‘Views’ pane and then ‘Router Controls’. The ‘Router
Controls’ table appears, as shown in Figure 7-18.
To narrow the list, enter the first characters of the router’s name in the ‘Router Filter’ field. The
list is automatically reduced to display only routers matching that character string.
Or
Enter the first characters of the control point’s description in the ‘Control Point Filter’ field.
The list is automatically reduced to display only control points matching that character string.

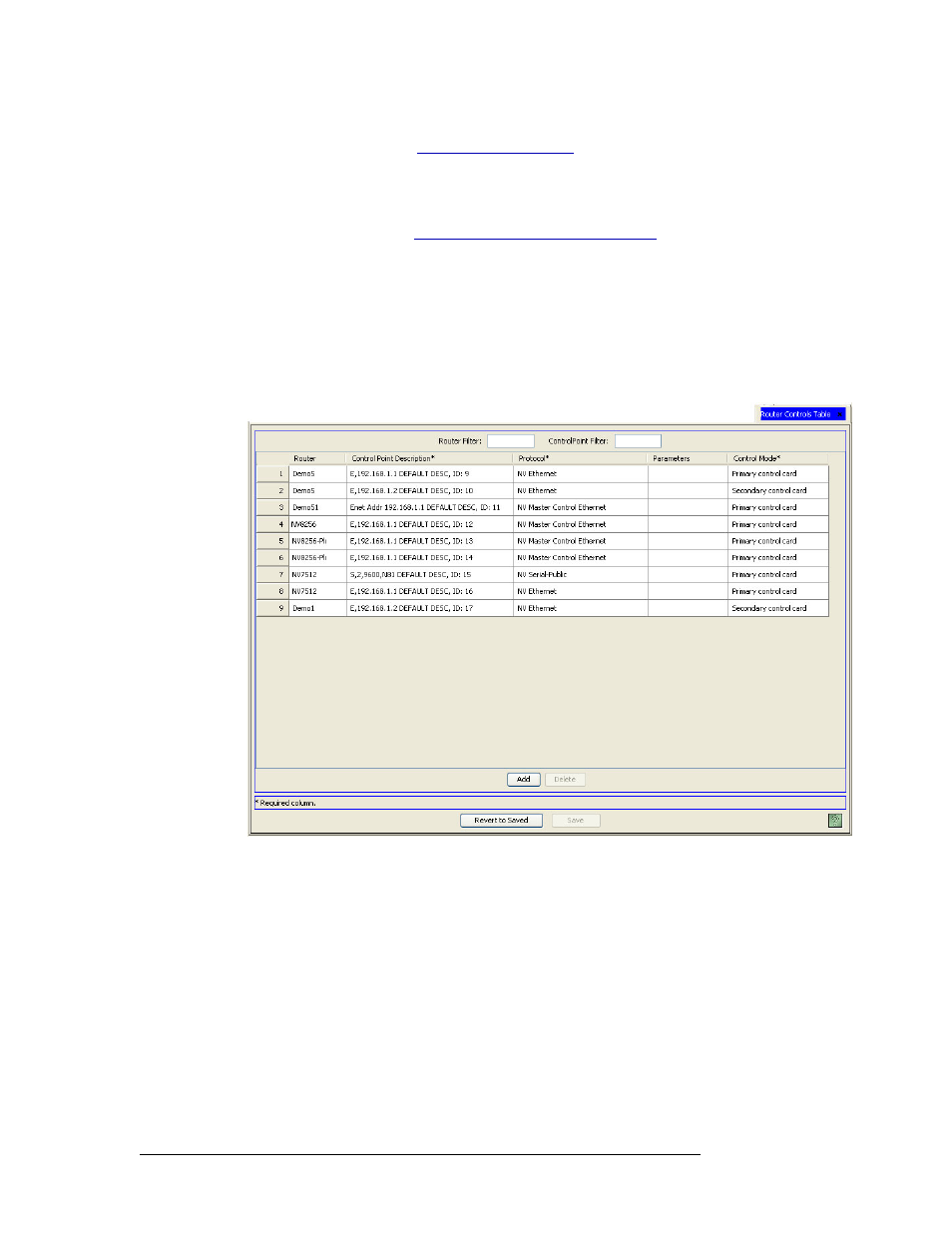

Figure 7-18. Router Controls Table
3 On the row listing the router being updated, click in the ‘Control Point Description’ column to
activate it and select a new control point from the drop-down list.
4 Click Save .
Or
To revert to previously saved configuration, click
Revert to Saved
.
5 Click
X
on the window title tab to close the table.
Updating Router Protocol
The NV9000 server supports several protocols for both Miranda and third-party routers. Protocols
are applications that run on the router control cards. At any time, the protocol associated with a
