11. Control Panels
Adding a Control Panel
The ‘NVRP32’ page appears:

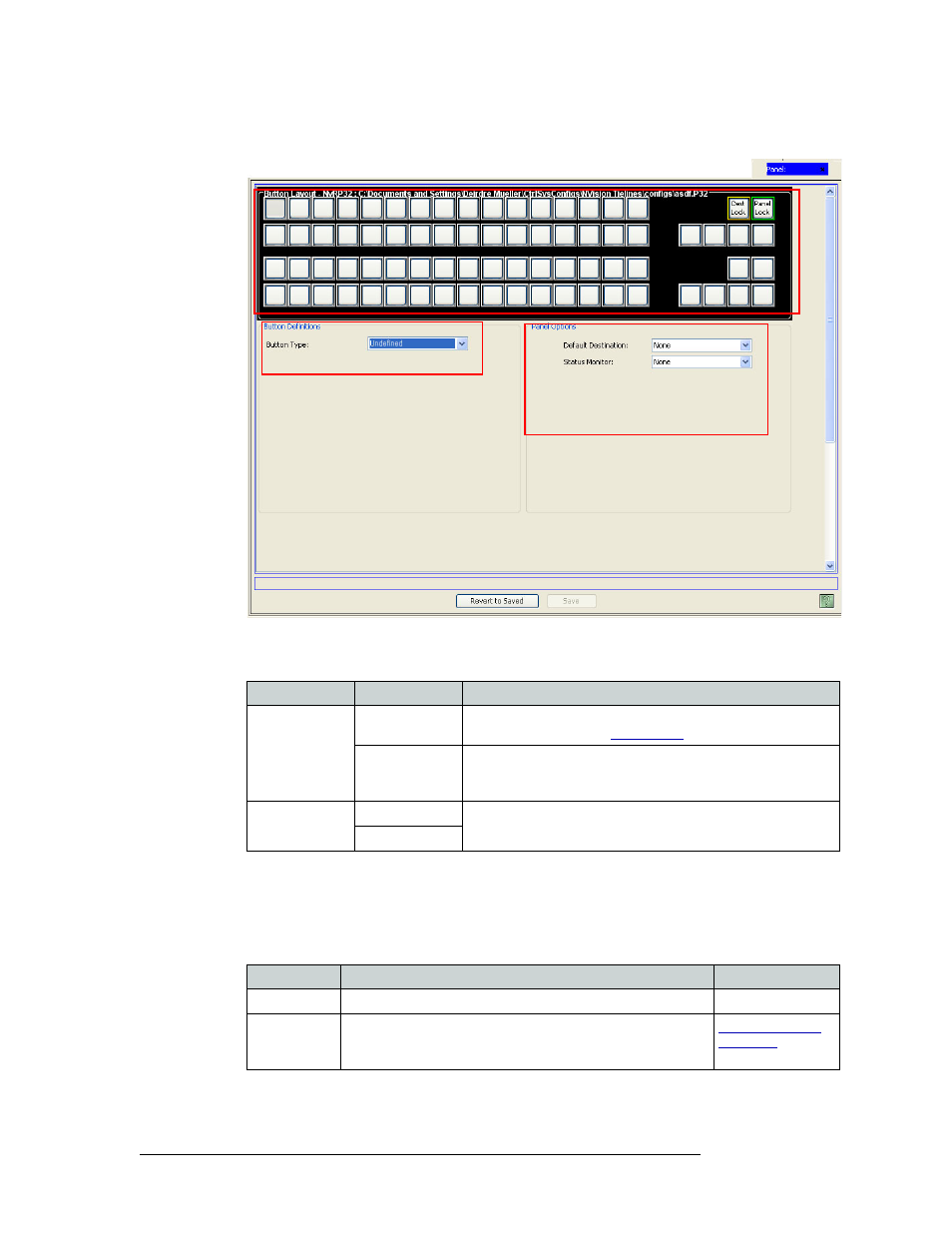

Figure 11-40. NVRP32 Page
2 In the ‘Panel Options’ section, select control panel behaviors from the drop-down lists:
3 In the ‘Button Layout’ section, select a blank button and then in the ‘Button Definitions’ sec-
tion, select a definition for the button from the drop-down list. The button definition appears on
the selected button in the ‘Button Layout’ section.
Select button options as follows:
Button Layout section
Button Definitions section
Panel Options section
Field Option Description
Default
Destination
None After a reset, the control panel displays no destination device.
(Not recommended). See Default State on page 356.
‹device› The Panel uses the specified device as the destination after a reset.
This also becomes the destination controlled when the control
panel is set to single destination mode.
Status Monitor None Selected destination used as a monitor to switch the source that is
in ‘status’ mode for the selected destination.
‹device›
Button Description Related Topic
Destination Assigns a destination device to this control panel. —
Level Shows the status of a specific level on the display. When a level
button is assigned, a ‘Virtual Level’ drop-down menu appears.
Choose one of the levels or ‘none’. About Levels and
Level Sets
on page
112
