NV9000-SE Utilities • User’s Guide 139
8. Level Sets
Updating Level Sets
3 Double-click on the row listing the level set being updated.
Or
Click anywhere in the row listing the level set being updated and click
Edit Selected Level Sets
.
The ‘Level Set Details’ Page appears:

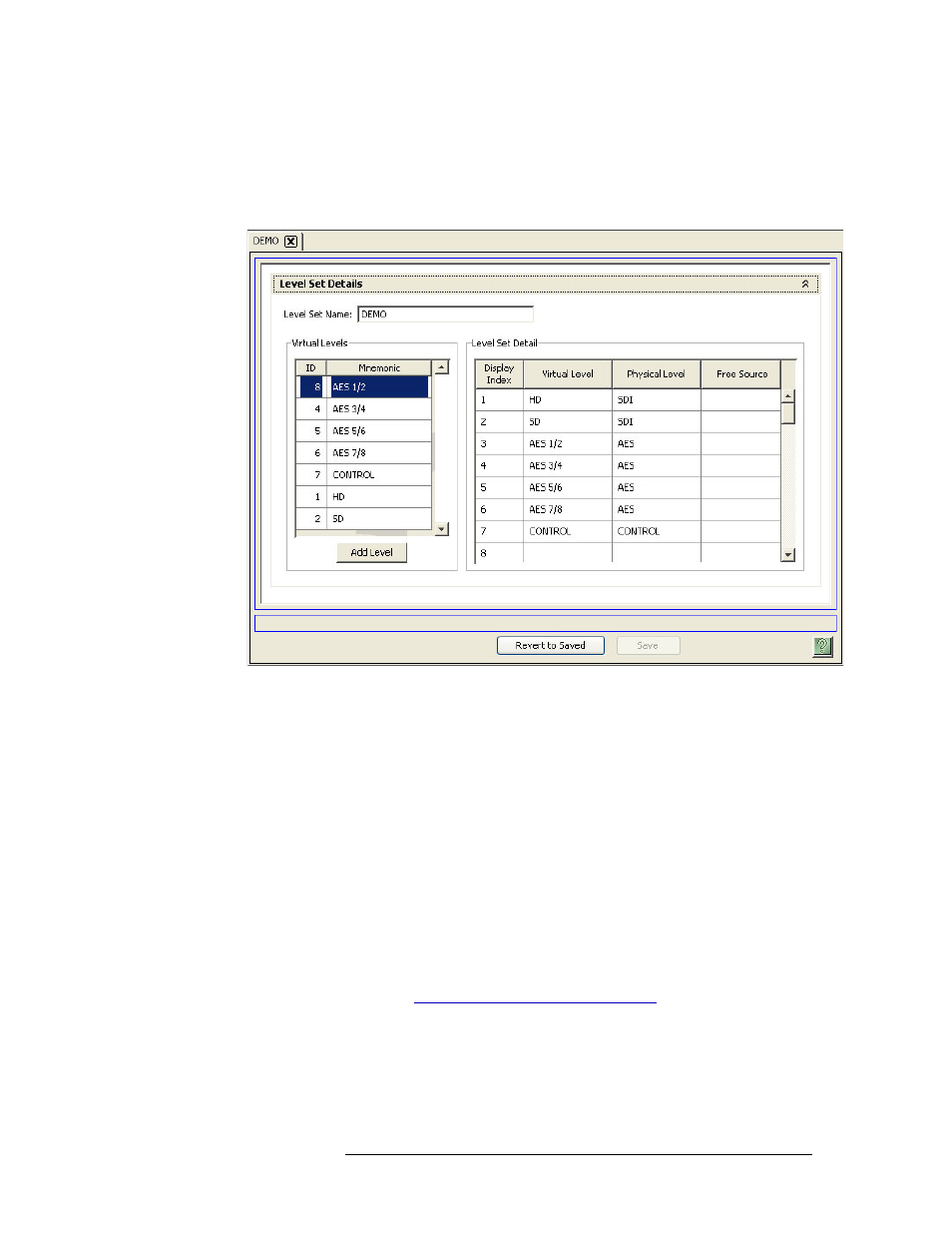

Figure 8-23. Level Set Details Page
If multiple level sets are selected, one level set displays its details and each additional level set
opens in a separate tabbed window. Click the tab to bring that window forward. If one level set
is selected, the details for that level set automatically display.
4 In the ‘Level Set Details’ section, click on a cell in the ‘Physical Level’ column to activate it
and select a new physical level from the drop-down list. The physical level is mapped to the vir-
tual level listed on the same row.
5 Click
Save
.
Or
To revert to the previously saved configuration, click
Revert to Saved
.
6 Click X on the window title tab to close the page.
How to Change Physical Levels Associated with a Level Set
Use the ‘Level Set Details’ table.
1 Launch NV9000-SE. (See Launching and Exiting the Application on page 12.)
2 From the Navigation area, select the ‘Views’ pane and then ‘Level Set Details’. The ‘Level Set
Details’ table appears, as shown in Figure 8-24.
To narrow the list of level sets that display, enter the first characters of a level set name in the
‘Level Set Filter’ field.
Or
