7. Routers
Locating and Viewing Existing Router Details
To narrow the list, enter the first characters of the router’s name in the ‘Router Filter’ field. The
list is automatically reduced to display only routers matching that character string.
Or
Enter the first characters of the control point’s identification in the ‘Control Point Filter’ field.
The list is automatically reduced to display only control points matching that character string.

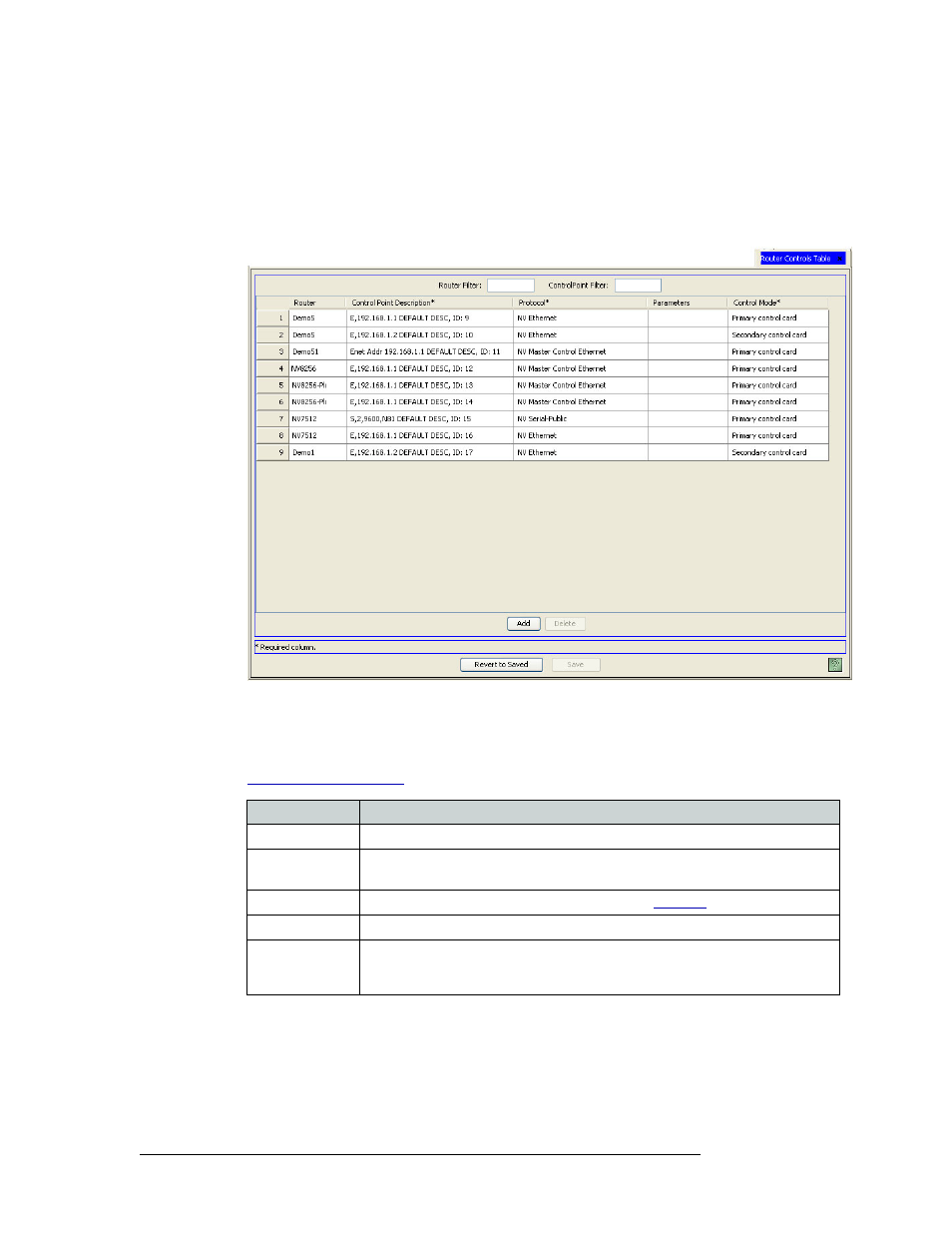

Figure 7-11. Router Controls Table
Several columns display router information. Each row represents a single control point (also
called control port) and the associated router. Control points are serial or Ethernet ports on the
NV9000 system controller through which routers, panels, and other devices are connected. (See
Managing Control Points on page 96.)
3 Click X on the window title tab to close the table.
Column Description
Router Name Lists the router name.
Control Point
Description Lists the control point associated with the router (listed in the same row).
Protocol The router protocol associated with the router. (See Protocols on page 515.)
Parameters Optional parameters for third-party protocols.
Control Mode Lists if the ‘Primary control card’ or the ‘Secondary control card’ is acting as the
primary control. These are not the primary and secondary routers, but the control
cards of a router.
