9. Devices
Locating and Viewing Device Details
How to Locate and View Devices Using the ‘Devices’ Page
1 Launch NV9000-SE. (See Launching and Exiting the Application on page 12.)
2 From the Navigation area, select the ‘Configuration’ pane and then ‘Devices’. The ‘Devices’
page displays, as shown in Figure 9-7.
All devices currently defined in the system are listed. To narrow the list, enter the first charac-
ters of the device’s name in the ‘Device Filter’ field. The list is automatically reduced to display
only devices matching that character string.
Or
From the ‘Level Set Filter’ drop-down list, select the level set associated with the device. The
list is automatically reduced to display only devices assigned to the same level set as the one
selected.

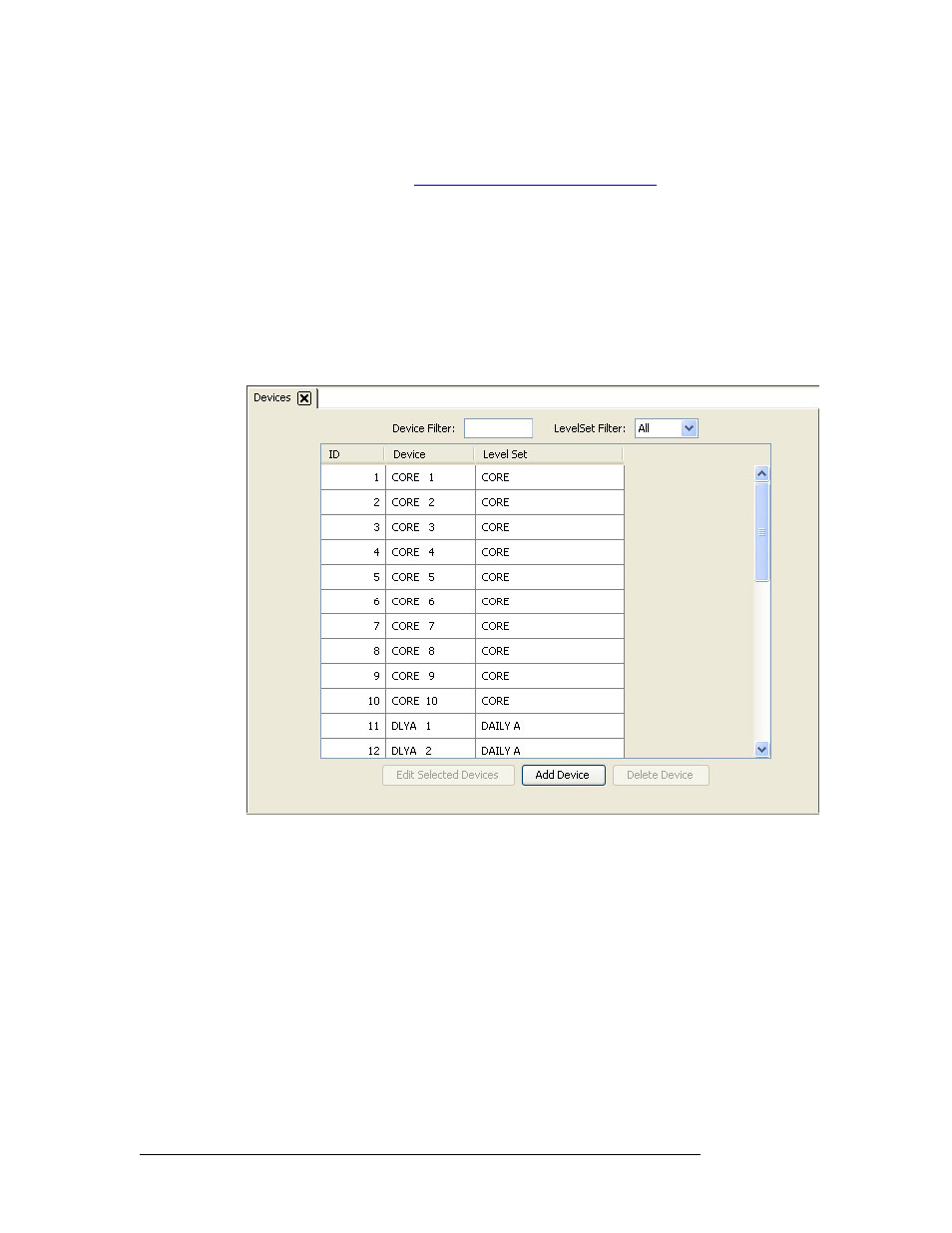

Figure 9-7. Devices Page
The ‘Device’ column lists the name assigned the device in NV9000-SE. The ‘Level Set’ col-
umn lists the level set associated with the device.
3 Double click on a single row to open details for that device.
Or
Click anywhere in the row listing the device you want to view and click
Edit Selected Devices
.
Use the ‘Shift’ or ‘Ctrl’ key on your keyboard to select multiple devices. Each device opens in
a separate tabbed window. Click a tab to bring that page to the front.
