8. Level Sets
Locating and Viewing Level Sets
virtual level currently in the system. The ‘Level Set Detail’ section displays the following
detailed information about the level set:
5 Click
X
on the window title tab to close the table.
How to Locate and View Level Sets Using the ‘Level Sets’ Table
1 Launch NV9000-SE. (See Launching and Exiting the Application on page 12.)
2 From the Navigation area, select the ‘Views’ pane and then ‘Level Sets’. The ‘Level Sets’ table
appears, as shown in Figure 8-7.
To narrow the list of level sets that display, enter the first characters of a level set name in the
‘Name Filter’ field. The list is automatically reduced to display only level sets matching that
character string.

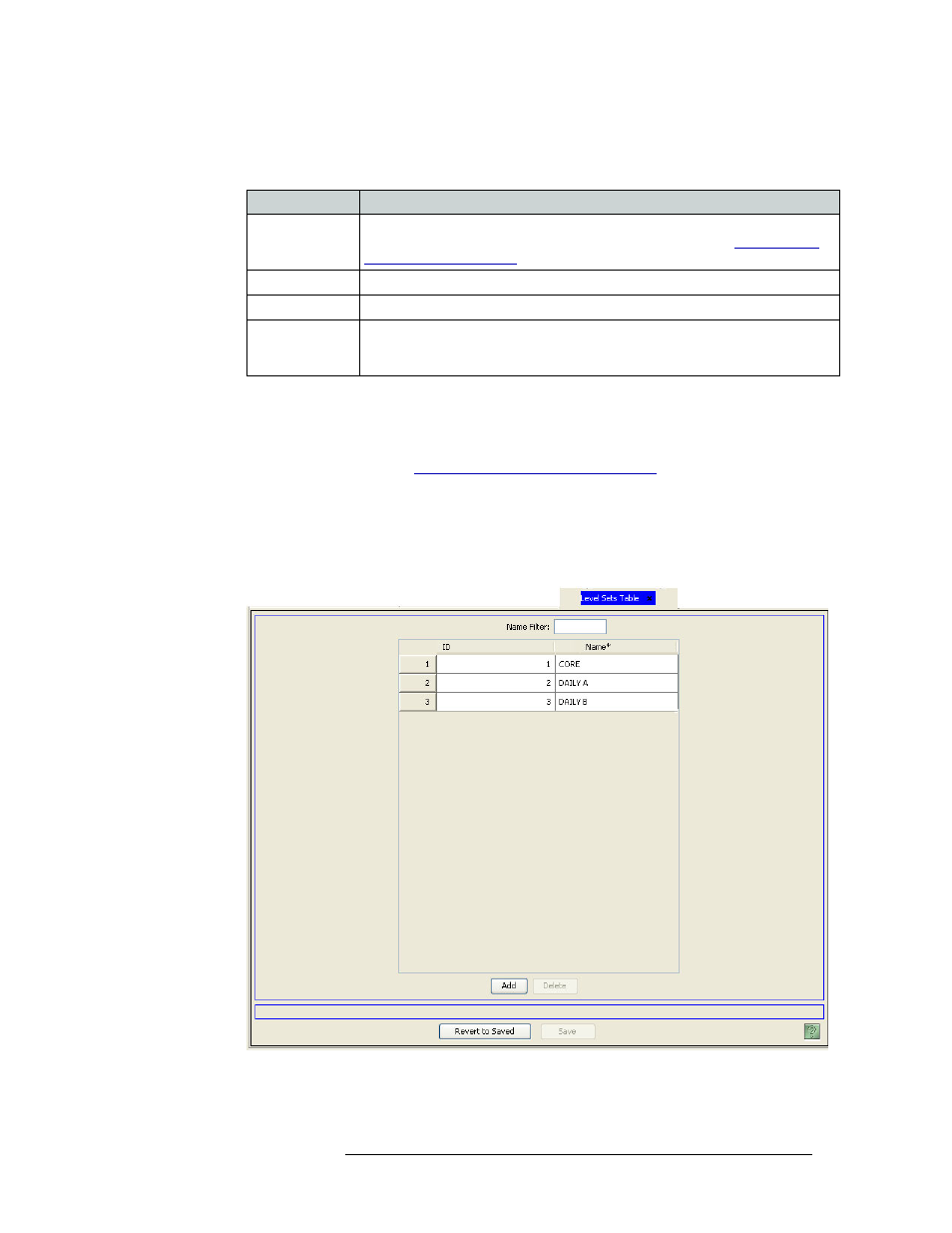

Figure 8-7. Level Sets Table
Field Description
Display Index The display index number determines the order of display on a control panel. The
lowest level in the level set is considered the “primary” level. See
Updating the
Level Set Index Number on page 143.
Virtual Level The virtual levels that compose the level set.
Physical Level The physical level associated with each virtual level.
Free Source A free source is a source, usually black and silence, that can be routed to a
destination to free up that destination. The column lists any free sources that have
been assigned to the corresponding virtual level and physical level on the same row.
