480 Rev 3.0 • 25 Mar 10
16. Tielines
Updating a Tieline
Figure 16-17. Tieline Page
3 Double click on a single row to view details for that tieline in the ‘Tieline Detail’ page.
Or
Click anywhere in the row listing the tieline being viewed and click
Edit Selected Tieline . Use the
‘Shift’ or ‘Ctrl’ key on your keyboard to select multiple tielines. Each tieline opens in a sepa-
rate tabbed window. Click the tab to bring the window forward.
4 In the ‘Graph’ section, click on an arrow. Corresponding ‘Virtual Levels’ and ‘Signal Types’
display in the related sections, as shown in Figure 16-18. Only one arrow may be selected at
any one time.

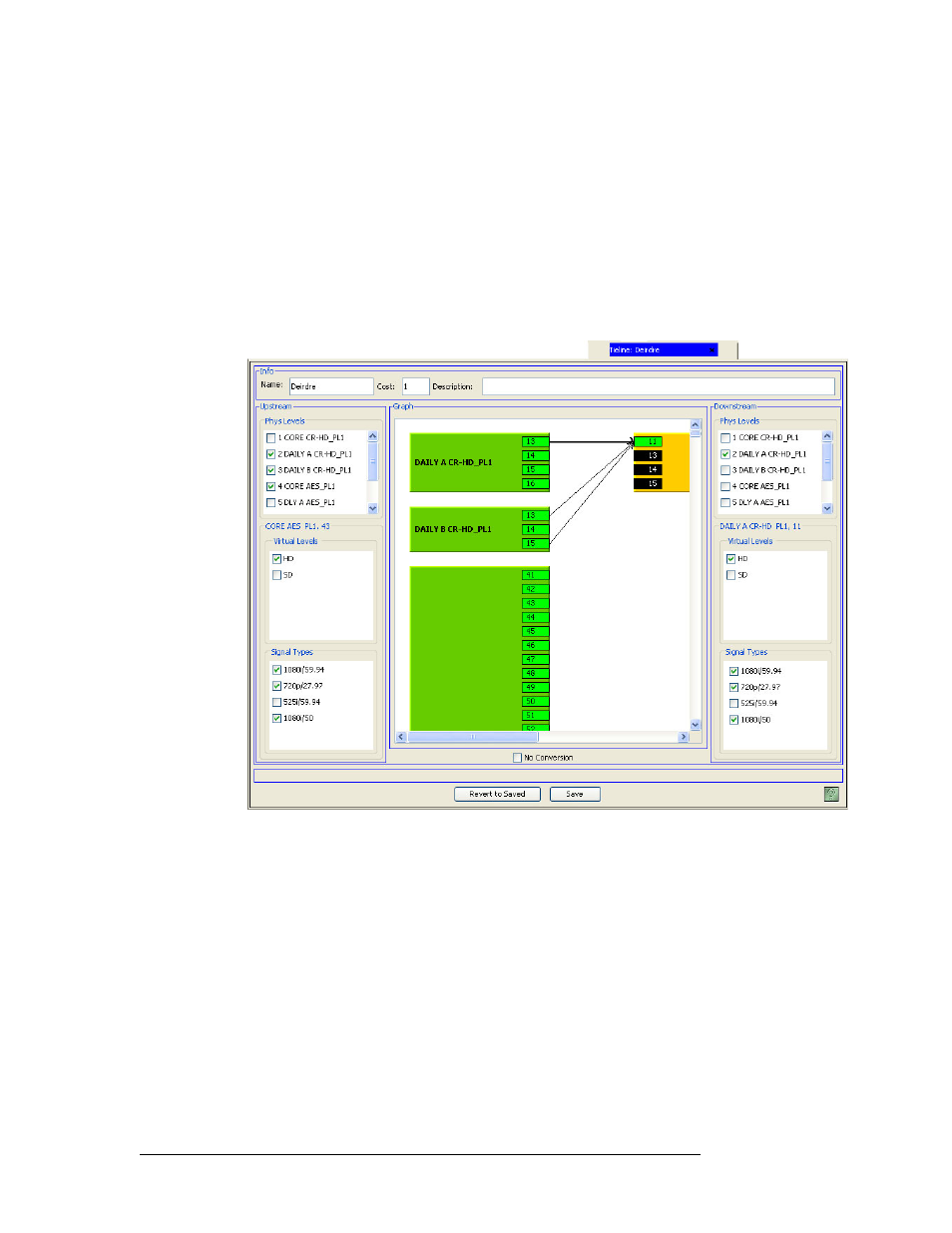

Figure 16-18. Tieline Details Page - New Tieline
5 In the ‘Upstream’ and ‘Downstream’ areas, in the ‘Virtual Levels’ section, check a check box to
select the associated level. Selecting a virtual level selects all signal types associated with that
level.
Or
Uncheck a check box to deselect the associated level. Deselecting a virtual level deselects all
signal types associated with that level.
6 In the ‘Upstream’ and ‘Downstream’ areas, in the ‘Signal Types’ section, check a check box to
select the associated signal.
Or
Uncheck a check box to deselect the associated signal.
7 Click
Save
.
Or
