NV9000-SE Utilities • User’s Guide 143
8. Level Sets
Updating Level Sets
To narrow the list of level sets that display, enter the first characters of a level set name in the
‘Level Set Filter’ field.
Or
Enter the first characters of a virtual level name in the ‘Virtual Level Filter’ field.
Or
Enter the first characters of a physical level name in the ‘Phys Level Filter’ field.
The list is The list is automatically reduced to display only level sets matching that character
string.

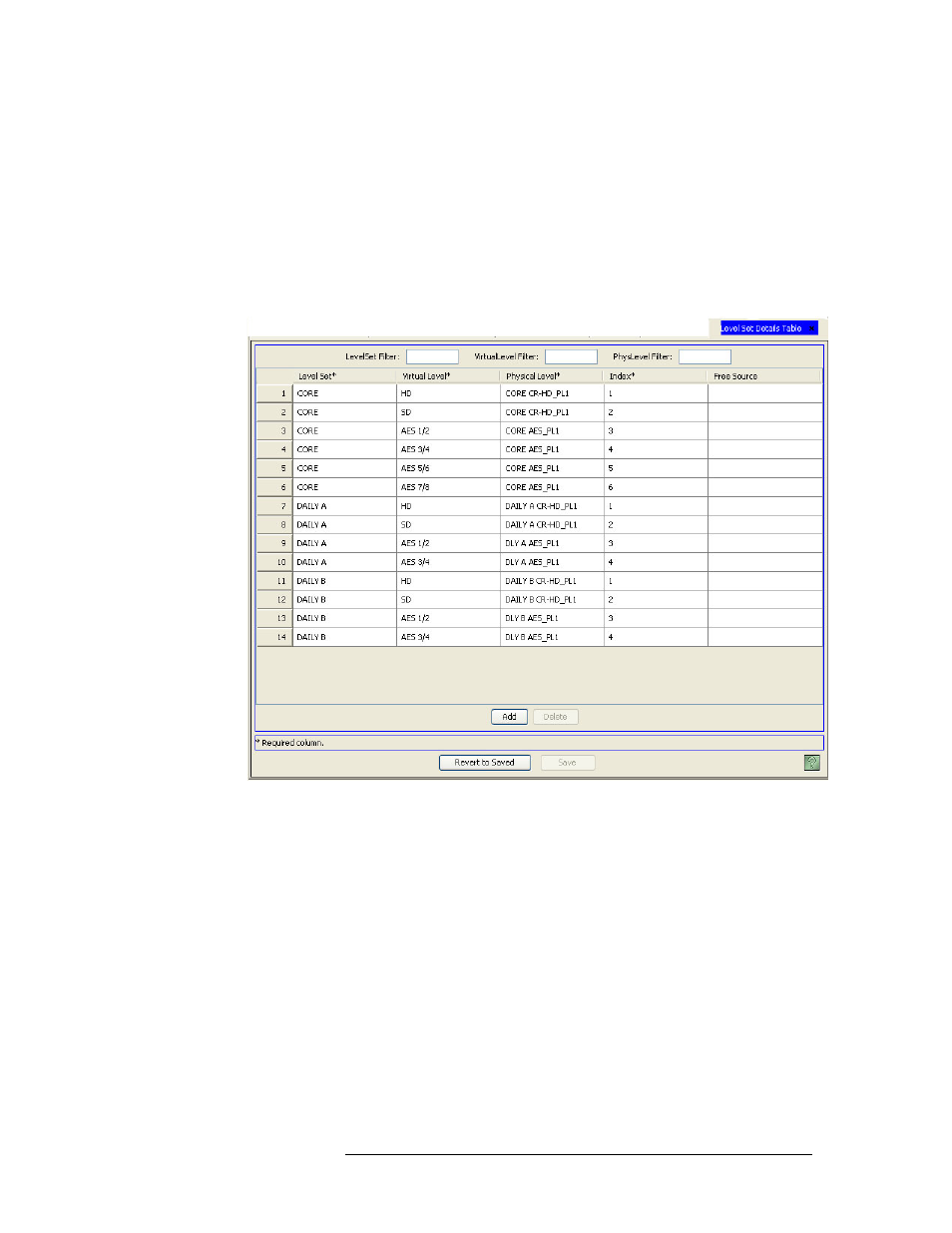

Figure 8-27. Level Set Details Tables
3 Click on a cell in the ‘Free Source’ column to activate it and select a free source from the drop-
down list. The free source is associated with the level set listed on the same row.
Or
From the drop-down list, select ‘None’ to have no free source associated with the level set.
4 Click
Save
.
Or
To revert to the previously saved configuration, click
Revert to Saved .
5 Click
X
on the window title tab to close the table.
Updating the Level Set Index Number
The index numbers assigned to a virtual level in a level set determine how the levels display on a
control panel. The index number can be changed to reorder the levels as desired. The lowest level
(lowest index number) in the level set is considered the “primary” level.
