NV9000-SE Utilities • User’s Guide 495
16. Tielines
Deleting a Tieline Group
How to Delete a Tieline Group Using the ‘Tieline Groups’ Page
1 Launch NV9000-SE. (See Launching and Exiting the Application on page 12.)
2 From the Navigation area, select the ‘Configuration’ pane and then ‘Tieline Groups’. The
‘Tieline Groups’ page displays, as shown in Figure 16-31. All tieline groups currently defined
in the system are listed.
To narrow the list, enter the first characters of the tieline group’s name in the ‘Name Filter’
field. The list is automatically reduced to display only tieline groups matching that character
string.

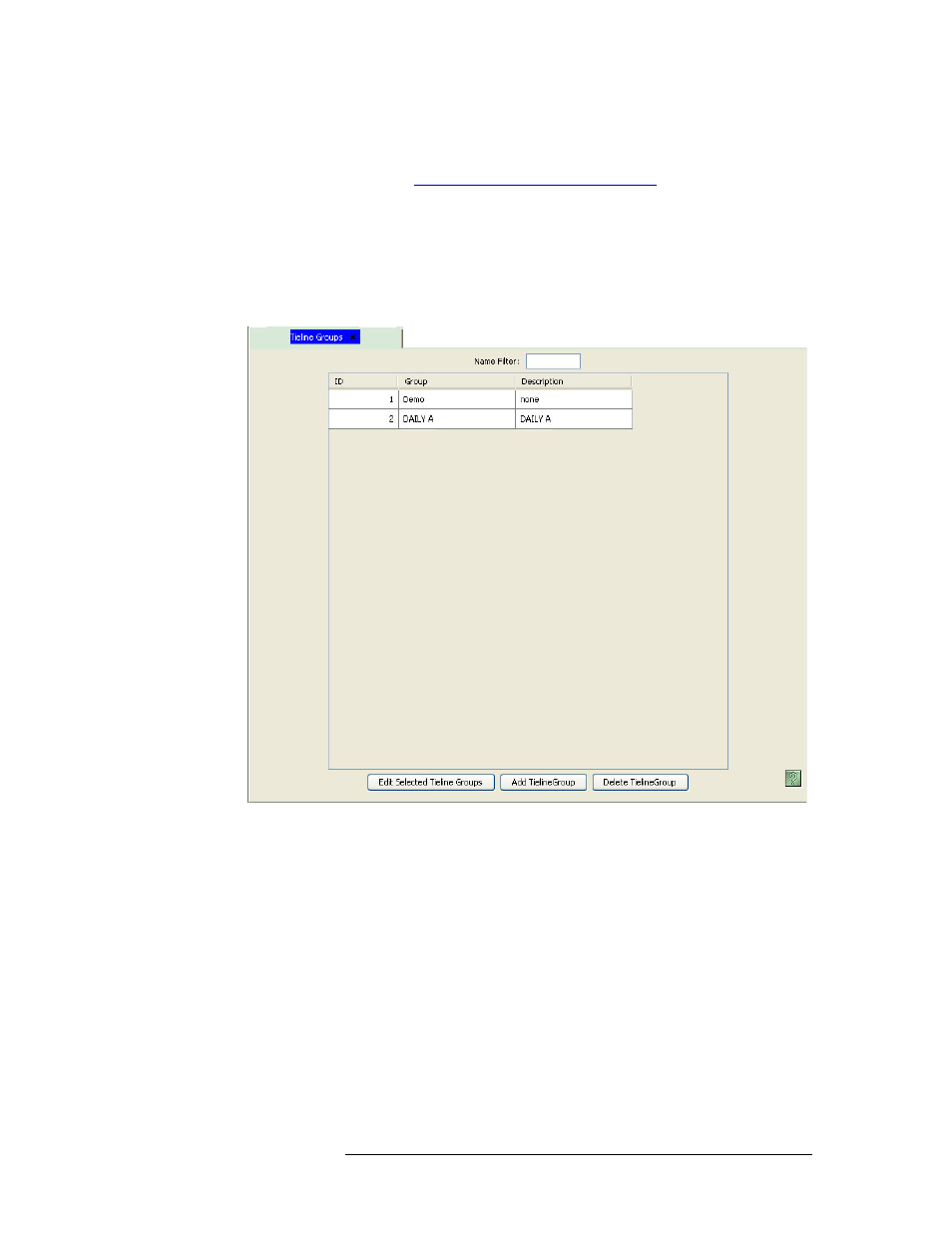

Figure 16-31. Tieline Group Page
The ‘Name’ column lists the name assigned the tieline in NV9000-SE.
3 Click anywhere in the row listing the tieline group you want to delete and click Delete Tieline .
The row is removed from the table.
4 Click
Save
.
Or
To revert to previously saved configuration, click
Revert to Saved
.
5 Click X on the window title tab to close the page.
