262
4.27 Milling Cy
cles
G840 – Calculating hole positions
“G840 A1 ..” calculates the hole positions and stores them at the
reference specified in “NF.” Program only the parameters given in the
following list.
See also:
„ G840—Fundamentals: Page 261
„ G840—Milling: Page 263
Parameters – Calculating hole positions

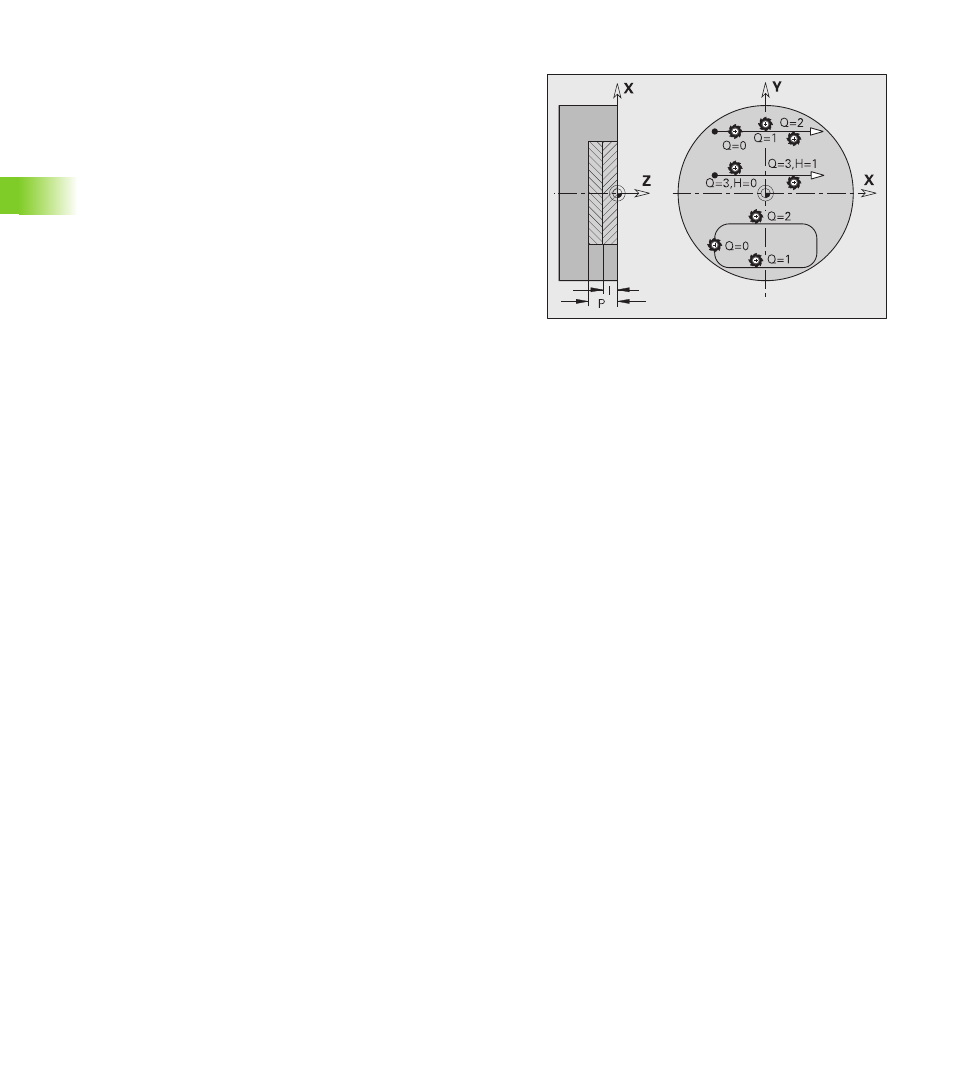

Q Cycle type (= milling location)
„ Open contour. If there is any overlapping, Q defines
whether the first area (as of starting point) or the entire
contour is to be machined.
„ Q=0: Milling center on the contour (hole position =
starting point)
„ Q=1: Machining at the left of the contour. If there is
overlapping, only the first area of the contour is
machined.
„ Q=2: Machining at the right of the contour. If there is
overlapping, only the first area of the contour is
machined.
„ Q=3: Not allowed
„ Q=4: Machining at the left of the contour. If there is
overlapping, the entire contour is machined.
„ Q=5: Machining at the right of the contour. If there is
overlapping, the entire contour is machined.
„ Closed contours
„ Q=0: Center of milling cutter on the contour (hole
position = starting point)
„ Q=1: Inside milling
„ Q=2: Outside milling
„ Q=3 to 5: Not allowed
NS Block number – beginning of contour section
„ Figures: Block number of the figure
„ Free closed contour: First contour element (not starting
point)
„ Open contour: First contour element (not starting point). NS
– NE defines the contour direction.
NE Block number – end of contour section
„ Figures, free closed contour: No input
„ Exposed contour: last contour element
„ Contour consists of an element:
„ No input: Machining in contour direction
„ NS=NE programmed: Machining against the contour
direction
