6.8 C-Axis Cont
ours
Front or rear face: Circle (full circle)

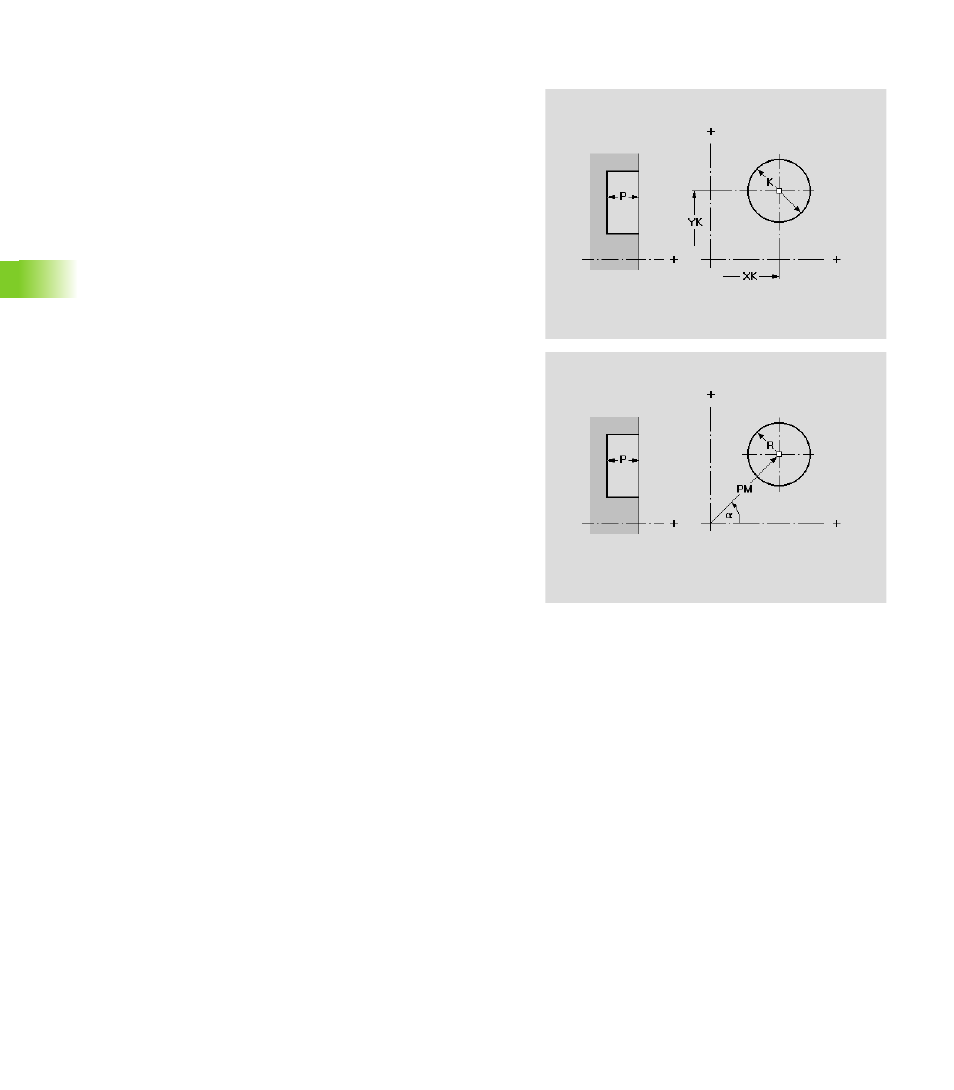

This function defines a full circle on the front/rear face.
Parameters
XK
Center in Cartesian coordinates
YK
Center in Cartesian coordinates
a
Center point in polar coordinates (reference angle: positive
XK axis)
PM
Center point in polar coordinates
R
Circle radius
K
Circle diameter
P
Depth of the figure
