6.6 F
o
rm

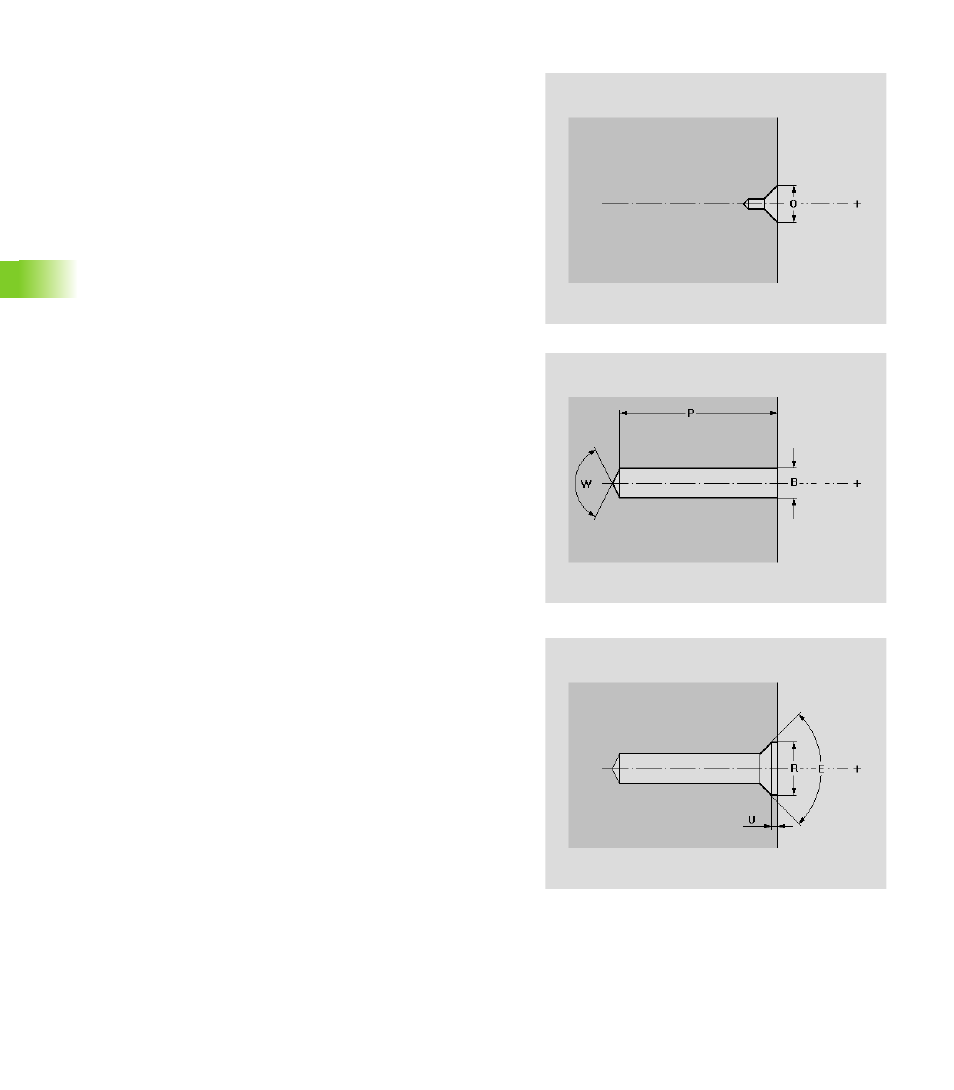

Elements
Centering
Core hole
Countersinking
Centering parameters
O Centering diameter
Core hole parameters
B Hole diameter
P Depth of hole (excluding point)
W Point angle
„ W=0°: the AWG generates a “feed rate reduction (V=1)” for
the drilling cycle
„ W>0°: point angle
Fit: H6 to H13 or “without fit” (see “Drilling” on page 556)
Countersinking parameters
R Sinking diameter
U Sinking depth
E Sinking angle
