HEIDENHAIN CNC PILOT 4290
443
6.8 C-Axis Cont
ours

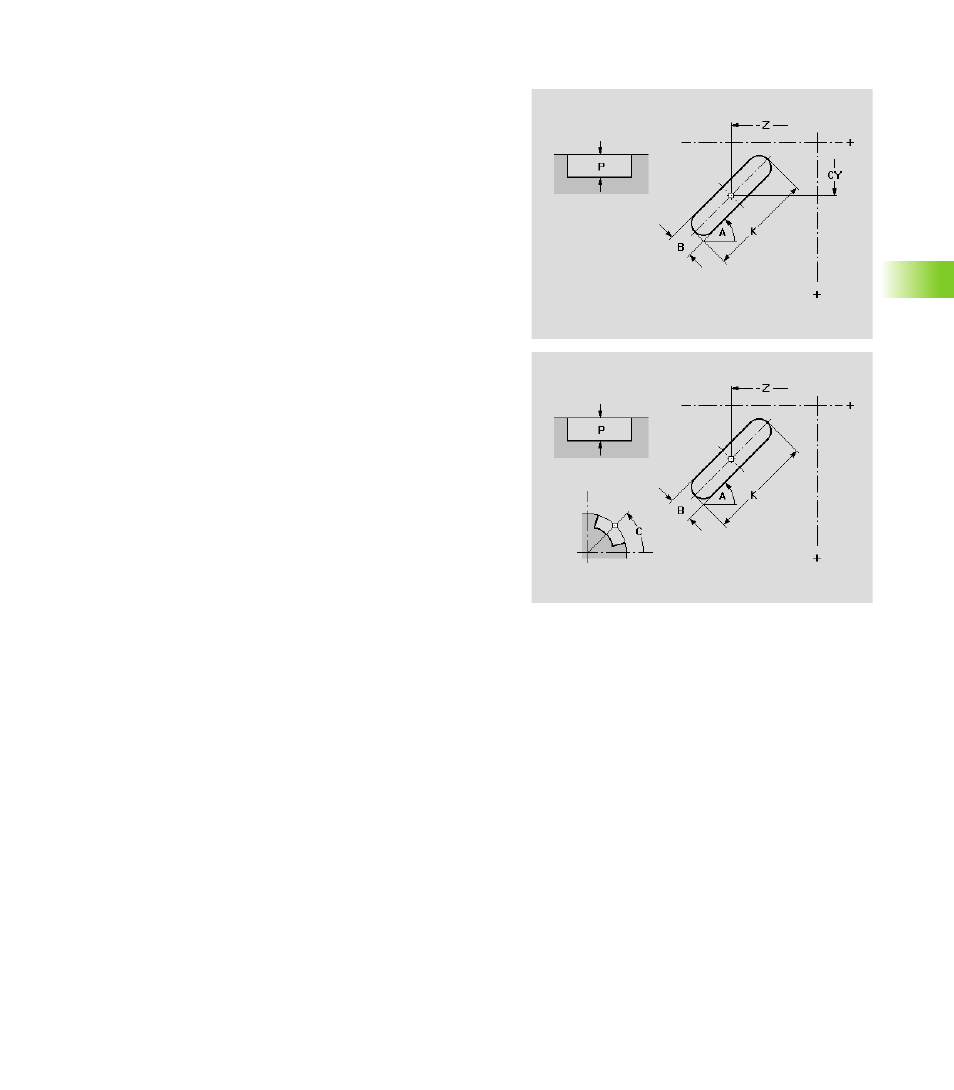

Lateral surface: Linear slot
This function defines a linear slot on the lateral surface.
Parameters
Z
Center of the figure
CY
Center of the figure – angle as “linear dimension”
C
Center of the figure – angle
A
Angle to longitudinal axis of slot (reference: Z axis)
K
Slot length
B
Slot width
P
Depth of the figure
