520
6.14 Int
e
ra
ctiv
e W
o
rk
ing Plan Gener
a
tion (IWG)

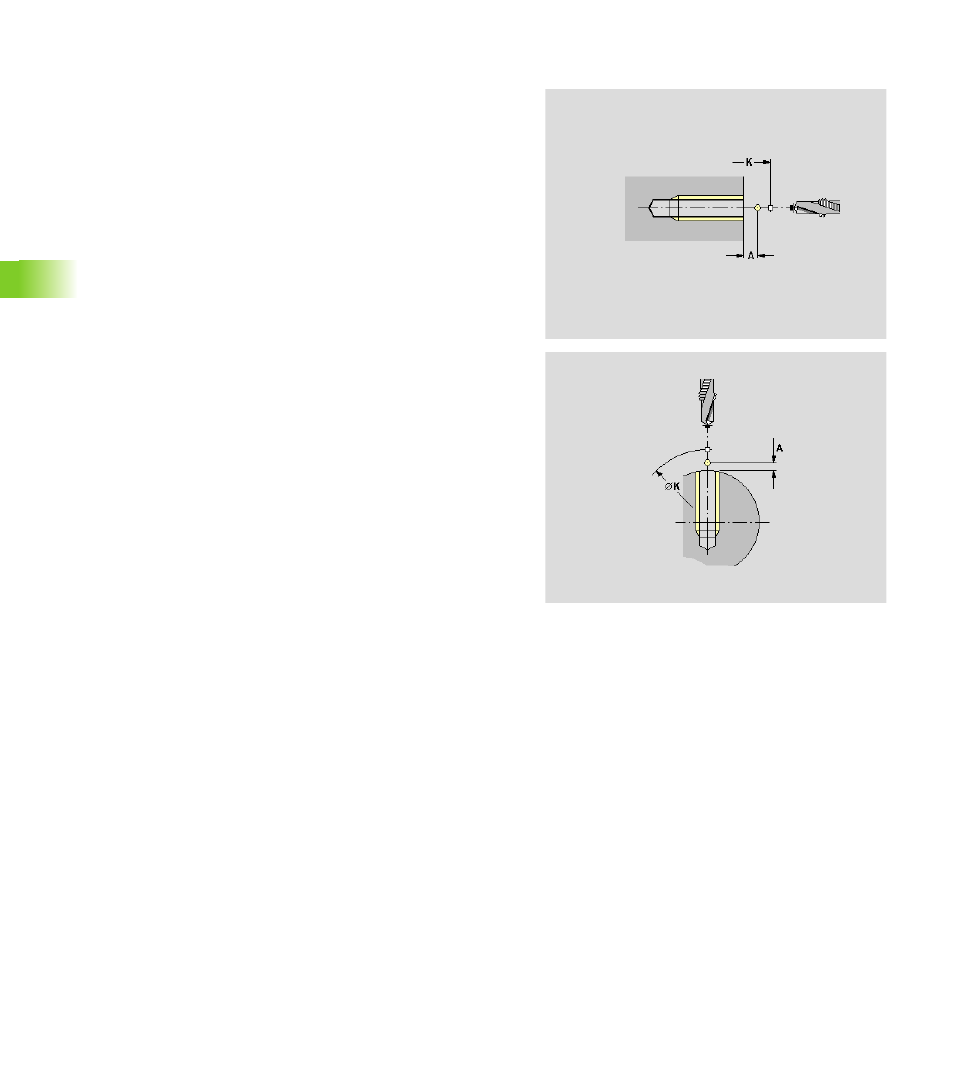

Tapping
The IWG generates the cycle G73 for the following drilling operations:
Tapping
Drilling with thread (special drilling)
Parameters
K
Retraction plane (default: Return to the starting position or
to the safety clearance)
D
Retract (“Continue” soft key)
At the programmed feed rate
At rapid traverse
A
Slope length (default: Machining parameter 7 “Thread
starting length [GAL]”)
S
Retraction speed (default: Tapping speed)
