HEIDENHAIN CNC PILOT 4290
439
6.8 C-Axis Cont
ours

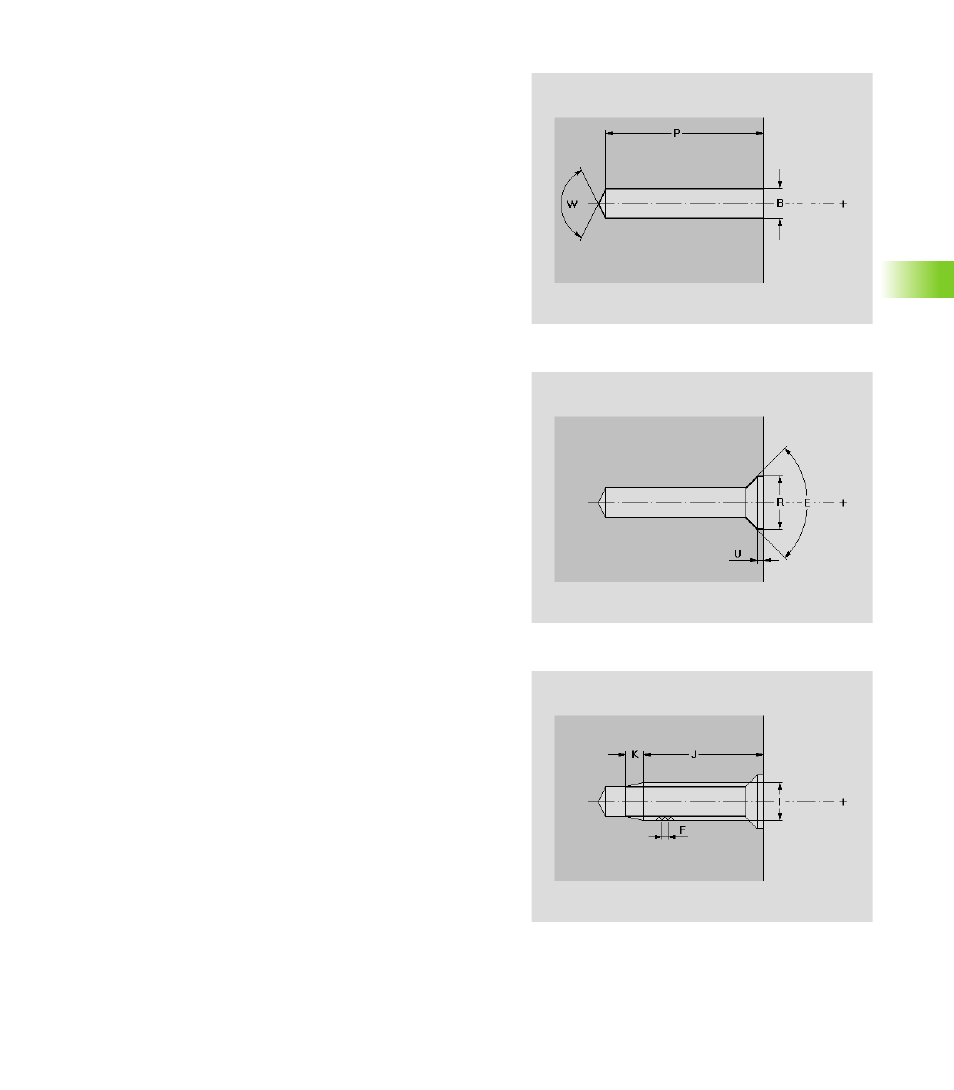

Core hole on lateral surface contour
Countersinking on lateral surface contour
Tapping on lateral surface contour
Core hole parameters
B
Diameter of hole
P
Hole depth (depth of hole and countersink – without drill point
and center point)
W
Point angle
W=0°: the AWG generates a “feed rate reduction (V=1)” for
the drilling cycle
W>0°: point angle
Fit: H6 to H13 or “without fit” (see “Drilling” on page 556)
Countersinking parameters
R
Sinking diameter
U
Sinking depth
E
Sinking angle
Thread parameters
I
Nominal diameter
J
Thread depth
K
Thread runout length
F
Thread pitch
Type of thread:
Right-hand thread
Left-hand thread
