9.3 Maint
e
nance S
y
st
em
Maintenance dates and intervals

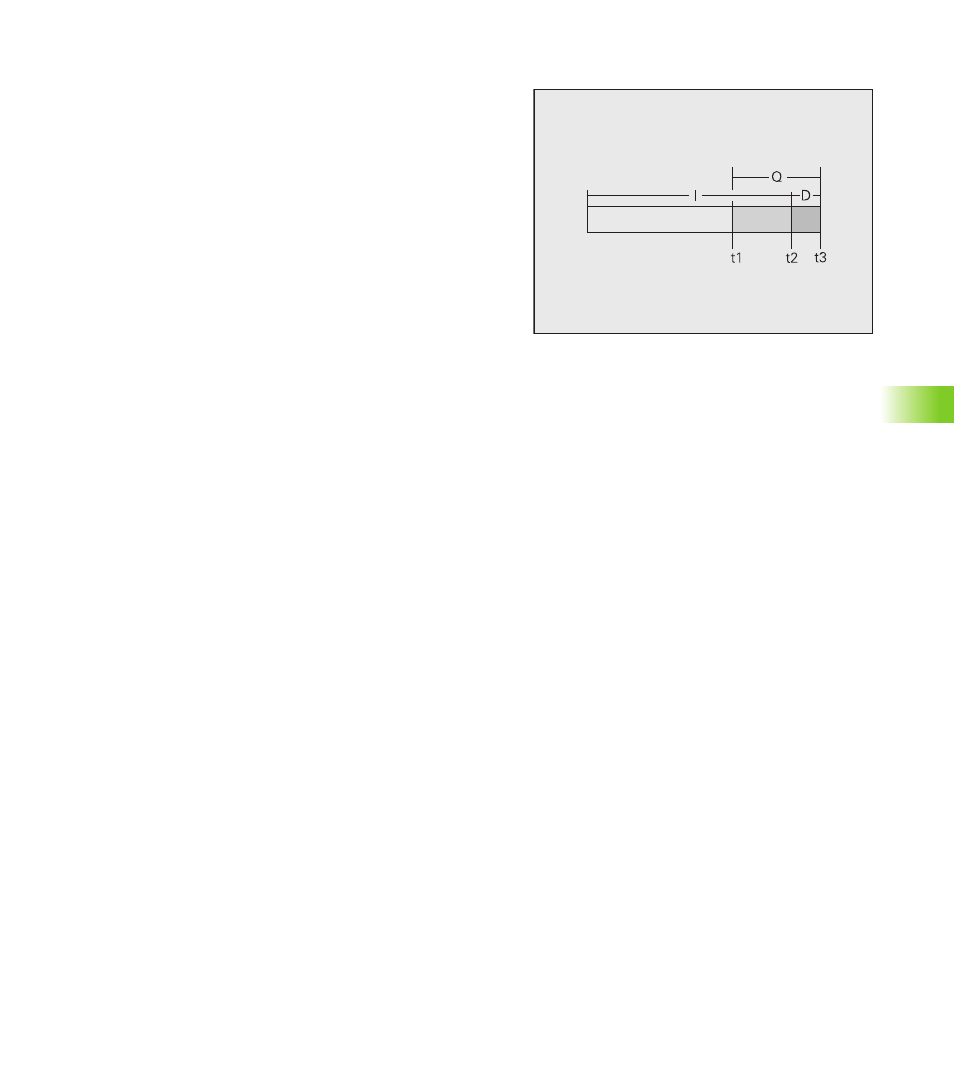

Dates and intervals (see illustration):
„ I – interval: Time period of the maintenance interval, specified by
the machine manufacturer. During the on-time of the control, the
current maintenance interval is continuously reduced. The
maintenance system displays the remaining time in the “When”
column.
„ D – duration: Time period between “due” and “overdue,” specified
by the machine manufacturer.
„ Q—acknowledgment time period: In this period the maintenance
measures must be performed and acknowledged.
„ t1 – time point “Maintenance measure will soon be due”:
„ Starting from this time point, the maintenance measures can be
performed and acknowledged.
„ The status is marked in yellow.
„ Calculation: t1 = early warning * interval / 100
„ t2 – time point “Maintenance measure is due”:
„ Starting from this time point, the maintenance measures should
be performed and acknowledged.
„ The status is marked in red.
„ Calculation: t2 = interval
„ t3 – time point “Maintenance measure is overdue”:
„ At this time point, the maintenance measures are overdue.
„ The status stays on red.
„ Calculation: t3 = interval + duration
Explanations:
I: Interval
D: Duration
Q: Acknowledgment time period
t1: Maintenance action will soon be due
t2: Maintenance action is due
t3: Maintenance action is overdue
