Face driver

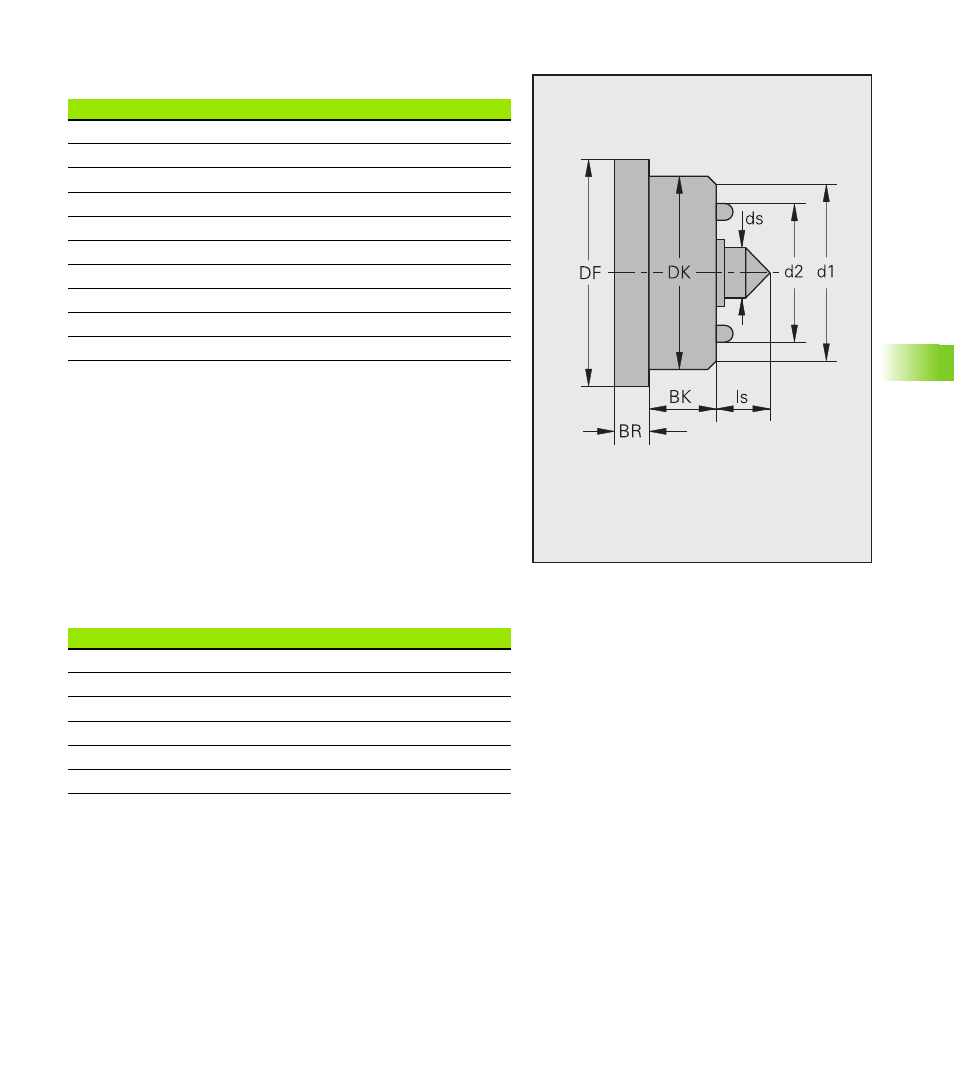

Example: Face driver (type 241)
Rotating gripper
Parameters, face driver (type 24x)
ID: Chuck identification number
Available: Physical availability (fixed-word list)
ds: Tip diameter
ls: Tip length
DK: Body diameter
BK: Body width
DF: Flange diameter
BR: Flange width
d1: Maximum clamping diameter
d2: Minimum clamping diameter
Parameters, rotating gripper (type 25x)
ID: Chuck identification number
Available: Physical availability (fixed-word list)
Nom.dia.: Diameter of rotating gripper
Length: Length of rotating gripper
d1: Maximum clamping diameter
d2: Minimum clamping diameter
