6.8 C-Axis Cont
ours
Lateral surface: Circle (full circle)

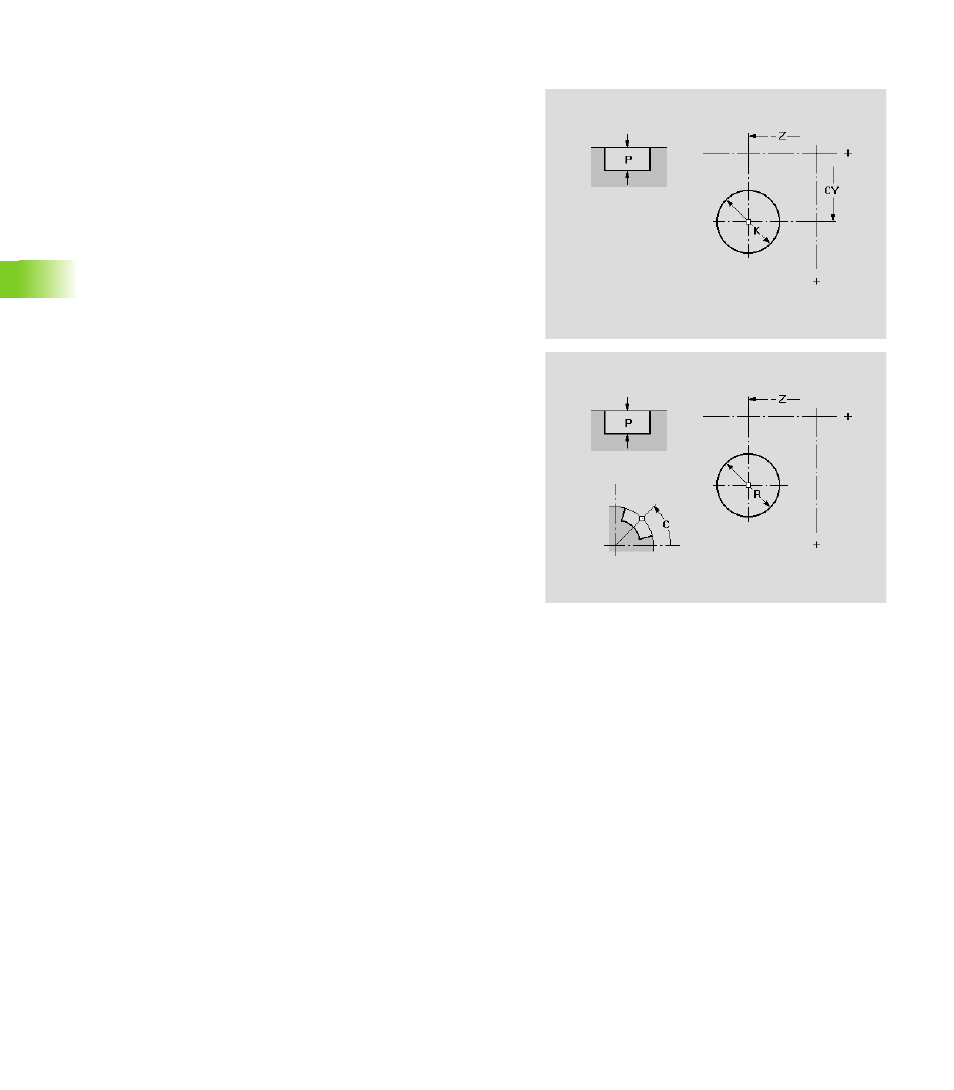

This function defines a full circle on the lateral surface.
Parameters
Z
Center of the figure
CY
Center of the figure – angle as “linear dimension”
C
Center of the figure – angle
R
Radius
K
Circle diameter
P
Depth of the figure
