HEIDENHAIN CNC PILOT 4290
617
8.1 T
o
ol D
a
tabase
Additional information:
Dialog box 3: see “Multipoint tools, tool life monitoring” on
page 620
see “Explanation of tool data” on page 622
see “Tool holder, tool mount” on page 624

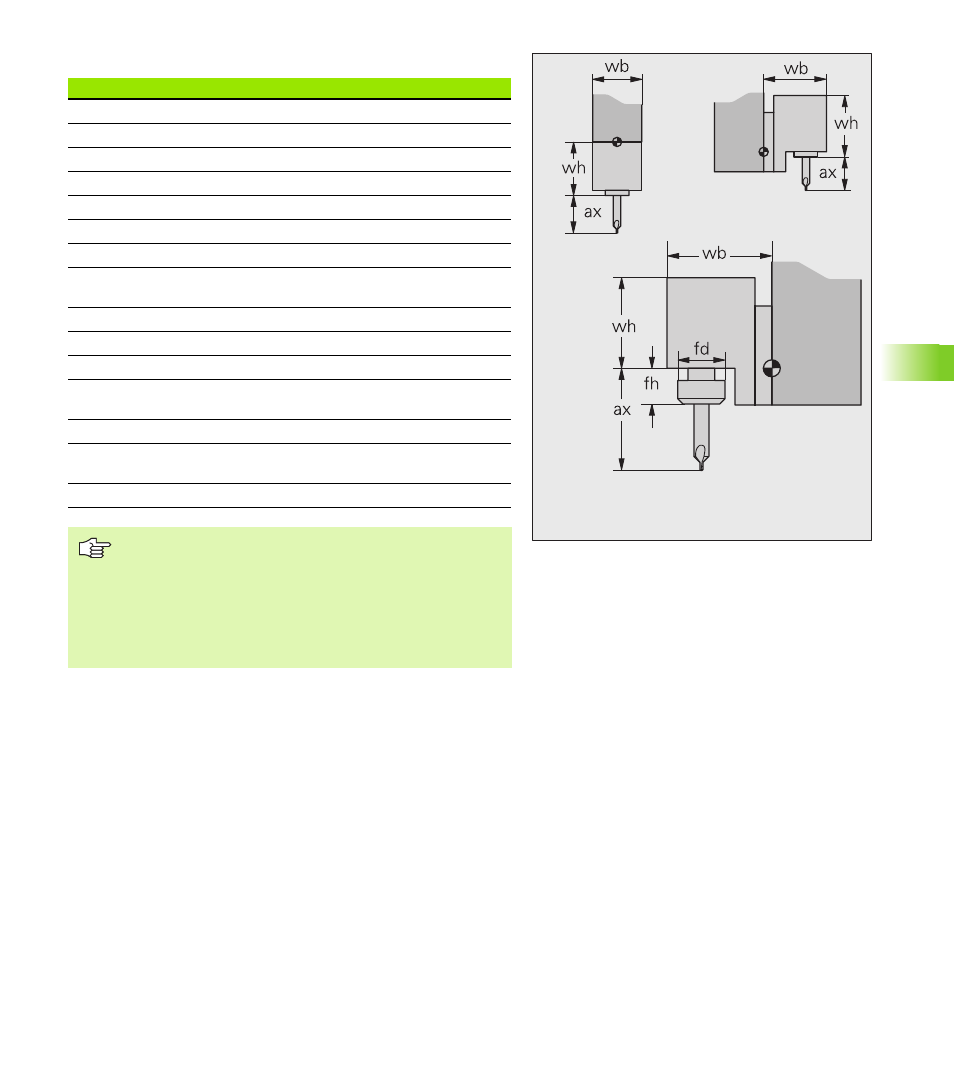

Parameters in dialog box 2
G
S
TP
T hold. DIN: Type of tool holder
–
•
–
T hold. heig. (wh): Height of tool holder
–
•
–
T hold. brea. (wb): Width of tool holder
–
•
–
Chck.di. (fd): Diameter of chuck
–
•
–
Chck.he. (fh): Height of chuck
–
•
–
Sali.lg.(ax): Salient length
–
•
–
Pitch (hb): Thread pitch
•
–
•
Fit qual(ity): H6, H7, H8, H9, H10, H11, H12 or
H13
–
–
•
Available: Physical availability
–
–
•
Picture no.
–
•
–
Cutting material
–
–
•
CSP comp.: Compensation factor for cutting
speed
–
–
•
FDR comp.: Compensation factor for feed rate
–
–
•
Depth comp.: Compensation factor for cutting
depth
–
–
•
Mount type
•
–
•
The tool selection function of TURN PLUS only checks
whether the fit quality is defined/undefined. It does not
perform a detailed evaluation.
Chuck
Holders F, K: “fd, fh” define the holder dimensions.
Other holders: Where fd=0/fh=0, no chuck is
displayed.
